HD Mesh Node
Configure Firewall

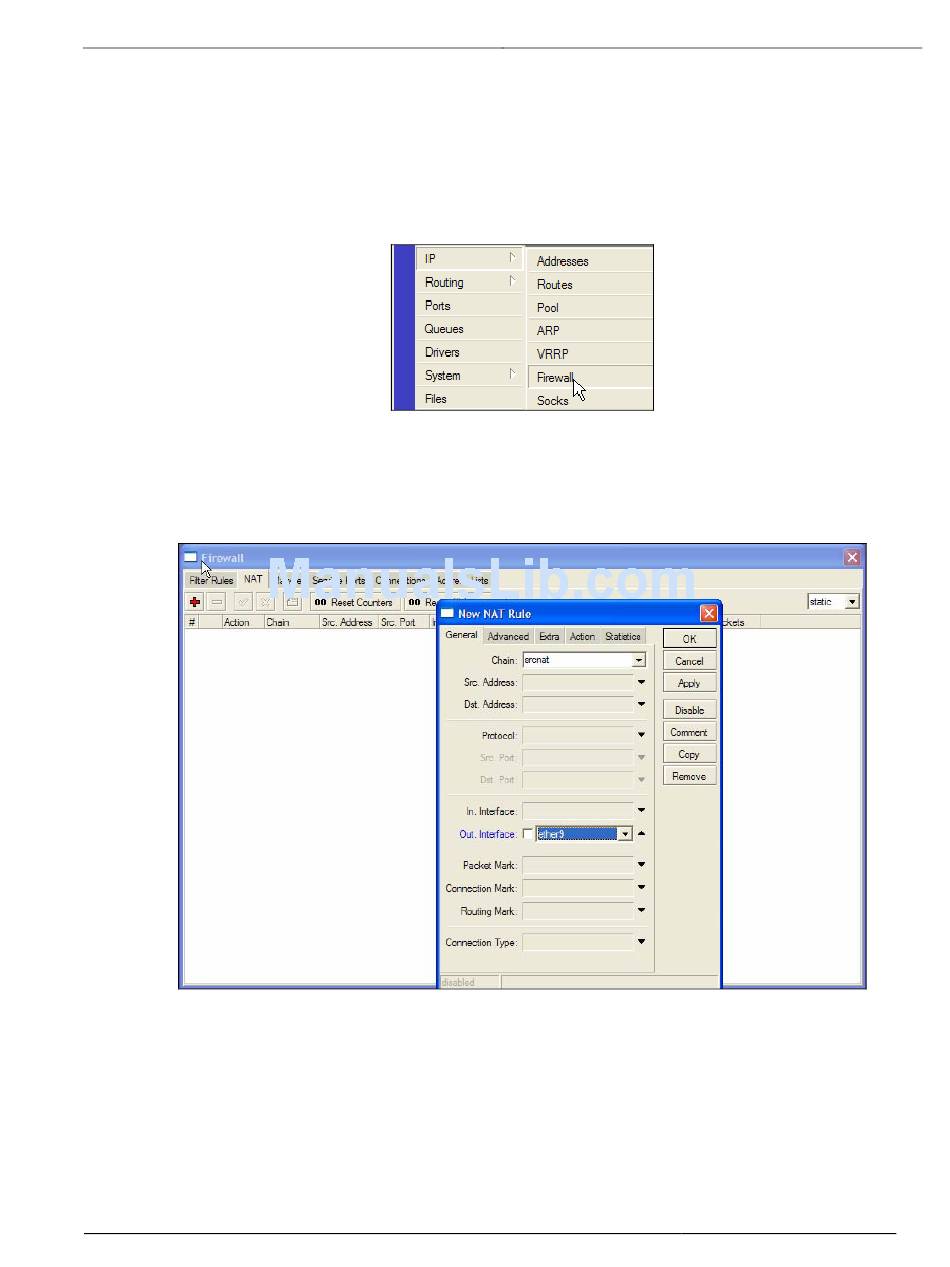

The firewall configuration offers many options but this section will only cover creating NAT on an
interface using masquerading. In the Winbox session select IP menu then Firewall menu option. This will
open the Firewall Windows. (Figure 23)
The following tabs are presented in the firewall window: Filter Rules, NAT, Mangle, Connections, and Address
Lists. Select the NAT table and click on the red plus sign to open the New NAT Rule window.
Once the New NAT Rule window is open the Chain must be set to srcnat and the Out Interface. (Figure 24)
Trango Broadband Wireless — High Density MESH
Figure 23
Figure 24
page 22
