Trango Systems High Density Mesh System User Manual page 19

HD Mesh Node

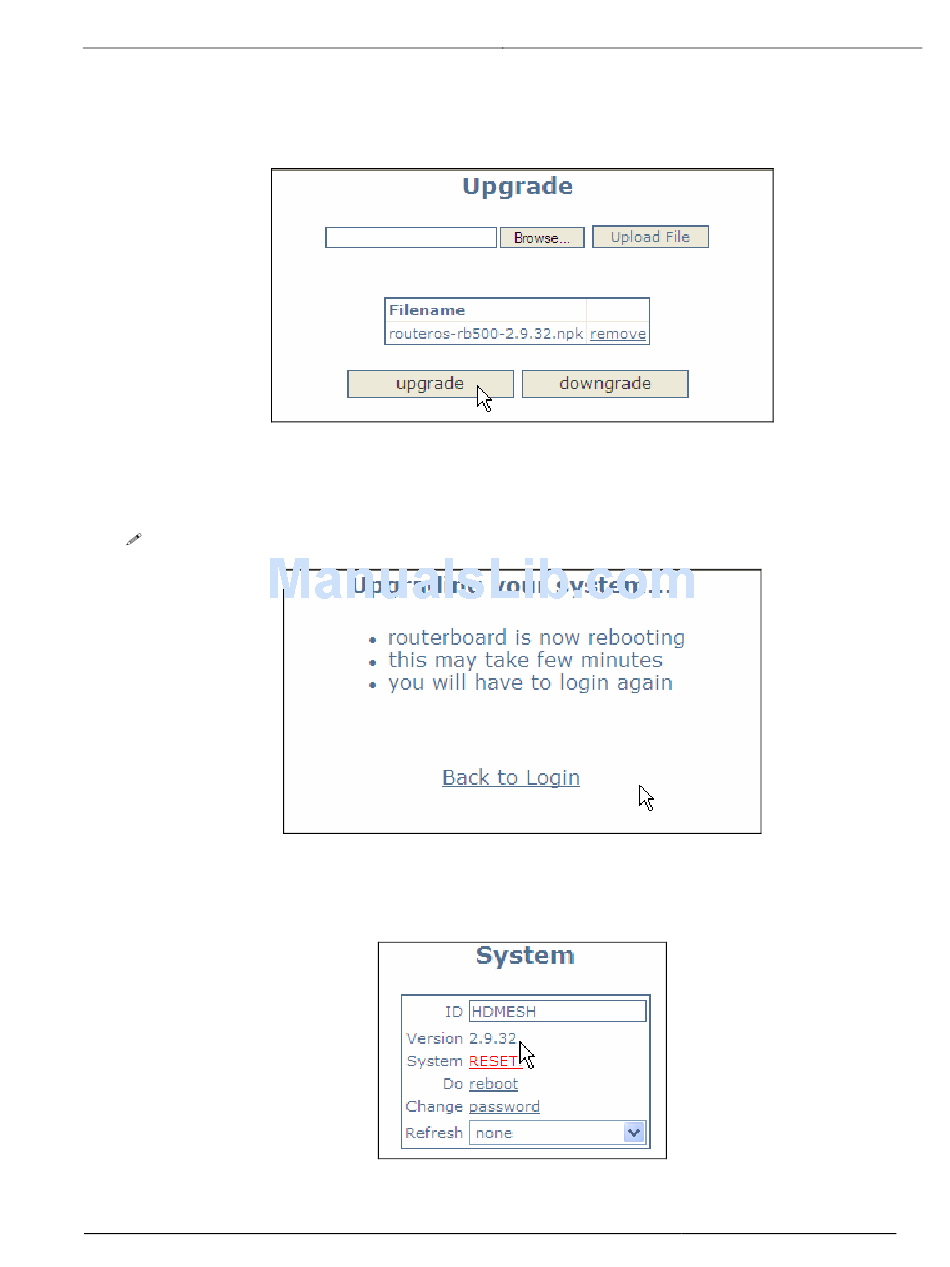

Once the file has been successfully uploaded to the router the upgrade and downgrade button can be used. (Figure
16)
The upgrade procedure will log out the current web session. The process will take a few minutes for the upgrade
procedure to complete. (Figure 17)
Note: DO NOT POWER OFF router during this process
To verify the upgrade procedure was successful. Log back into the router and check the version under the system
page. (Figure 18)
Trango Broadband Wireless — High Density MESH
Figure 16
Figure 17
Figure 18
page 19
