Floss Maxx
Model No. 3077-00-000
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator's manual and all other safety instructions before using this
equipment. To order copies of the operator's manual go to gmpopcorn.com or write to Gold
Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
Model Description

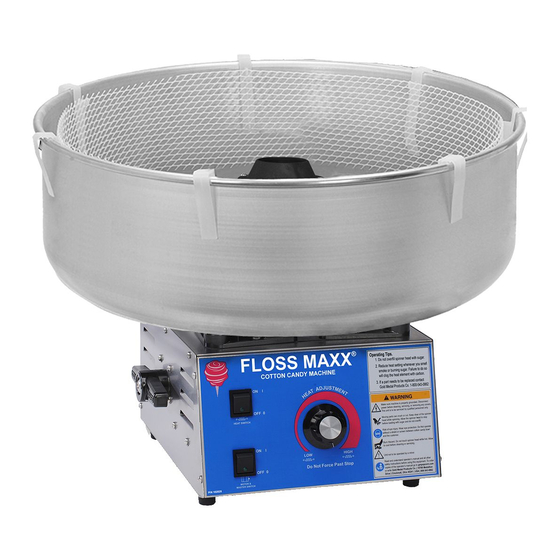

3077-00-000: Floss Maxx Cotton Candy Machine with aluminum floss pan.
Items Included with this Unit
Power Cord
Cotton Candy Cone Samples
Whirlgrip Floss Stabilizer
Aluminum Floss Pan
(PN 3021M/case of 1000)
(PN 3010)
(PN 42040)
Instruction
Registration
Manual
Warranty Card
gmpopcorn.com
