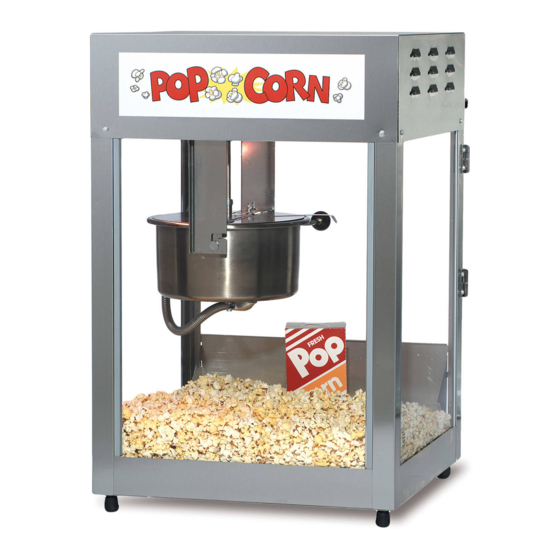

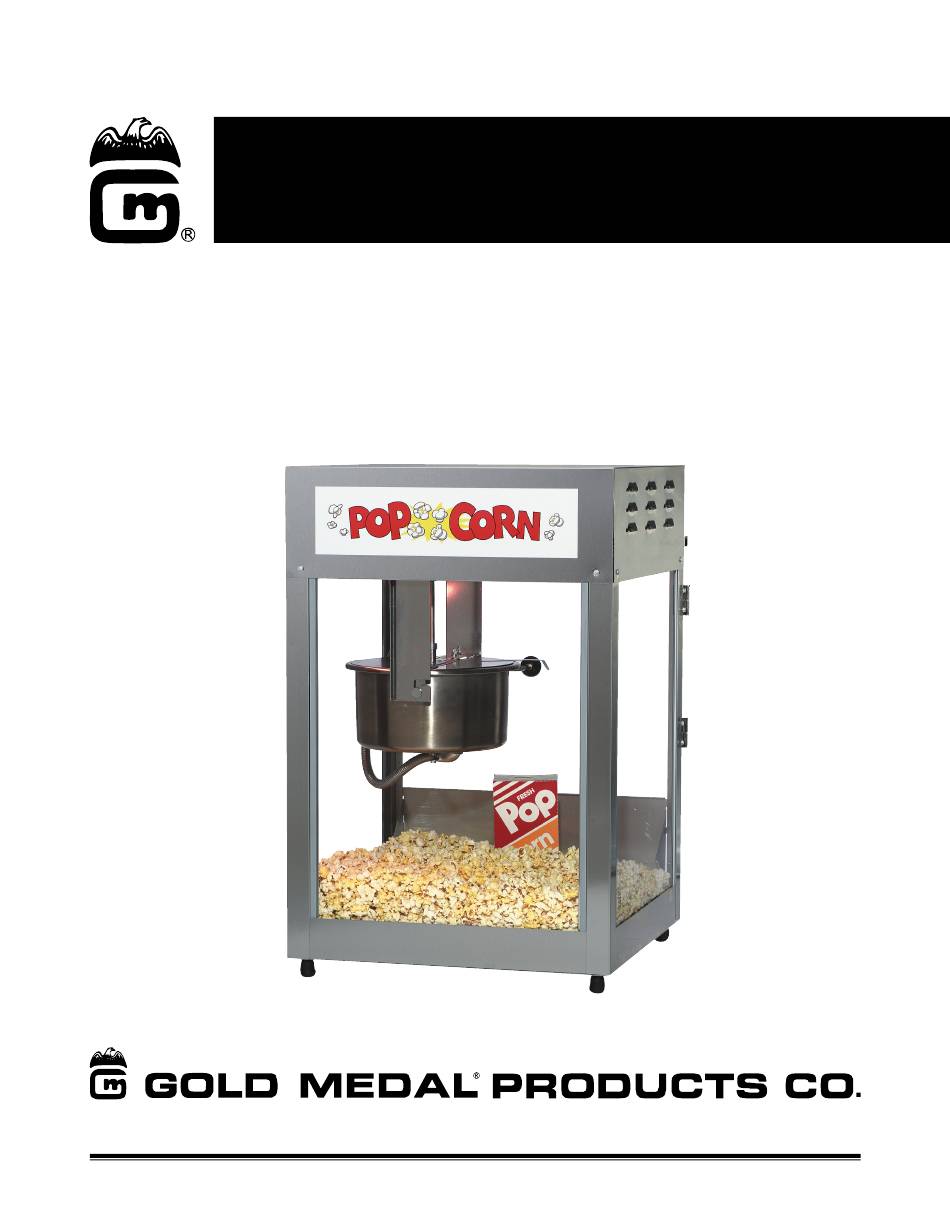

- Page 1 Instruction Manual Pop Maxx Model No. 2552EX, 2552KX, 2552LX 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2014 Gold Medal Products Co. Part No. 49749EX...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_010914 gmpopcorn.com... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 4: Installation Instructions
Pop Maxx Model No. 2552EX, 2552KX, 2552LX INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control. - Page 5 Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance.
- Page 6 Pop Maxx Model No. 2552EX, 2552KX, 2552LX OPERATING INSTRUCTIONS Controls and Their Functions LIGHT AND WARMER SWITCH – Turns on the heat to the bottom corn pan and heat light. KETTLE MOTOR SWITCH – Turns on the motor which drives kettle agitator shaft. KETTLE HEAT SWITCH –...
- Page 7 Pop Maxx Model No. 2552EX, 2552KX, 2552LX Pappy’s Kettle Corn Instructions 1. Turn kettle heat, stir motor, and lights to the “ON” position. 2. Pre-heat the kettle for 4 minutes. 3. Add 3/8 part oil and 1 part popcorn into the kettle (No Salt!). Set the timer for 45-60 seconds and then start the timer.
-
Page 8: Care And Cleaning
1 hour before attempting to clean. 3. Every night, mix a gallon of Heat’n Kleen solution (Gold Medal Part No. 2095) – (2 tablespoons per gallon of water). Add enough solution to fill the kettle 1/2" deep. -
Page 9: Filter Cleaning Instructions
Pop Maxx Model No. 2552EX, 2552KX, 2552LX FILTER CLEANING INSTRUCTIONS Cleaning the Filters Your popcorn machine is equipped with an efficient and durable filtration system. The filter should be cleaned every 1-2 weeks to maintain maximum efficiency. Follow the steps below for proper filter cleaning: Step 1: The filter is located on the inside of the popcorn machine... -
Page 10: Maintenance Instructions
Pop Maxx Model No. 2552EX, 2552KX, 2552LX MAINTENANCE INSTRUCTIONS DANGER Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury or death. Read the installation, Operating, and Maintenance Instructions thoroughly before installing or servicing this equipment. DANGER Do Not immerse the equipment in water. Unplug your machine before servicing. -
Page 11: Ordering Spare Parts
3. Please include your model number, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... - Page 12 Pop Maxx Model No. 2552EX, 2552KX, 2552LX Kettle Assembly – 58014EX and 58014KX Element View gmpopcorn.com Page 12...
- Page 13 Pop Maxx Model No. 2552EX, 2552KX, 2552LX Kettle Assembly – Parts List 58014EX –Used for Model No. 2552EX and 2552LX 58014KX – Used for Model No. 2552KX Part Number Item Part Description Qty. 58014EX 58014KX THUMB SCREW 1/4-20 x 1/2 61059 61059 8-32 X 1/2 PHILL FLAT M/S ZINC...
- Page 14 Pop Maxx Model No. 2552EX, 2552KX, 2552LX Cabinet Assembly - Exterior 9, 10 2, 3 13, 14 9, 10 Part Number Item Part Description Qty. 2552EX 2552KX 2552LX DOME NON-LIGHTED 77769 77769 LIGHTED DOME 77780 MALE HINGE SHORT LEFT 41349 41349 41349 LH FEMALE STEEL HINGE...
- Page 15 Pop Maxx Model No. 2552EX, 2552KX, 2552LX Cabinet Assembly - Interior Inside Filter Box 9, 10 Part Number Item Part Description Qty. 2552EX 2552KX 2552LX SMALL SWITCH BOX 48501 48501 48501 SWITCH, LIGHTED ROCKER 42798 42798 42798 SWITCH, DPST ROCKER 42532 42532 42532...
- Page 16 Pop Maxx Model No. 2552EX, 2552KX, 2552LX Electrical Breakdown – Heated Corn Deck and Dome Interior Heated Corn Deck Bottom View (Element View) Dome Interior View gmpopcorn.com Page 16...
- Page 17 Pop Maxx Model No. 2552EX, 2552KX, 2552LX Electrical Breakdown Parts List – Heated Corn Deck and Dome Interior Part Number Item Part Description Qty. 2552EX 2552KX 2552LX 230V 20W FOIL HEATER 40557EX 40557EX 40557EX BLOWER PLUG AND CORD 47199 47199 47199 EXHAUST BLOWER 48037...
- Page 18 Pop Maxx Model No. 2552EX, 2552KX, 2552LX Dome Lighting Breakdown – Model No. 2552LX Part No. Item Part Description Qty. 2552LX POPCORN SIGN 49575 DOME 77780 FLUORESCENT TUBE LOCK 12502 LIGHT TUBE HOLDER STARTER 41021 LIGHT STARTER 41023 LIGHT BALLAST 41722 MOLDED PLUG 47726...
- Page 19 Pop Maxx Model No. 2552EX, 2552KX, 2552LX Accessories Part Number Item Part Description Qty. 2552EX 2552KX 2552LX MEASURE 1/2 CUP 47149 47149 47149 12 OZ VOL CORN MEASURE 47148 47148 47148 MEASURE 14.7CC 47679 47679 47679 STAMPED ALUM SCOOP 2071 2071 2071 SALT SHAKER...
-
Page 20: Wiring Diagram
Pop Maxx Model No. 2552EX, 2552KX, 2552LX WIRING DIAGRAM Model No. 2552EX and 2552KX gmpopcorn.com Page 20... - Page 21 Pop Maxx Model No. 2552EX, 2552KX, 2552LX Model No. 2552LX gmpopcorn.com Page 21...
- Page 22 © 2014 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
