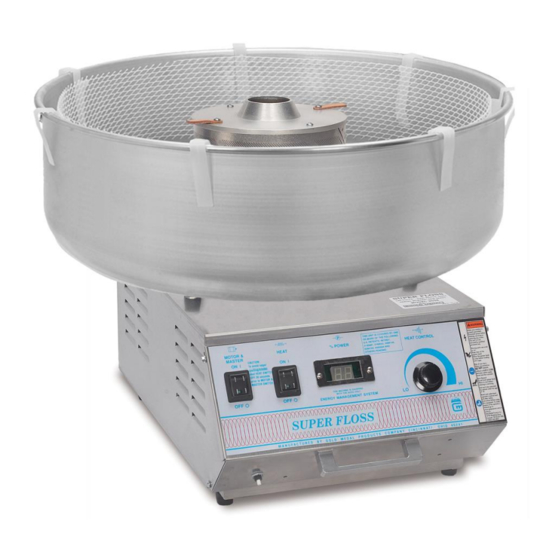

- Page 1 Part No. 88761EX Super Floss Instruction Manual Export Model #3038EDX Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
016_010914 WARNING Burn Hazard. DO NOT touch spinner head. Allow to cool before cleaning or servicing. Avoid contact with molten sugar. 006_092414 WARNING ALWAYS wear safety glasses when servicing this equipment. 010_010914 Model 3038EDX... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.)
-
Page 4: Inspection Of Shipment
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. -
Page 5: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. - Page 6 Non-Metallic Whirlgrip Clip Non-Metallic Screening Material (Whirl Grip Floss Stabilizer) Floss Pan Whirl Grip Floss Stabilizer Clips (number of clips varies Air space is required between pan and stabilizer for proper by model) operation. Top View of Pan Model 3038EDX...
-
Page 7: Operating Instructions
We have also seen some off-brand sugars that are a blend of sugar and dextrose or corn syrup. This product makes very poor cotton candy. Please make sure you get good sugar for your cotton candy machine. Model 3038EDX... -
Page 8: Machine Operation
When completing operation for the day (or any prolonged period), follow the instructions in the Shutdown Procedure/Cleaning and Care section of this manual. Model 3038EDX... - Page 9 DO NOT PUT HANDS OR OBJECTS IN ROTATING SPINNER HEAD. DO NOT FILL SPINNER HEAD WITH SUGAR WHILE IT IS ROTATING. WEAR EYE PROTECTION. DO NOT PUT HANDS NEAR ROTATING SPINNER HEAD. USE FLOSS CONE TO COLLECT COTTON CANDY. 032_021914 Model 3038EDX...
- Page 10 (leading) edge of the leather floaters down. You get more lift and the floss will collect higher. Form leather floaters as shown. This creates a lifting action to float the floss higher on the outside wall of the floss pan. Model 3038EDX...
-
Page 11: Care And Cleaning
4. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. - Page 12 Terminal Guard Floss Band Orientation Floss Band and Element Element Lead Wire and Retaining Screw For 3038 or 3052 Models ALWAYS connect Element Lead on the far side of Tubular Element View the terminal assembly as shown here. Model 3038EDX...
-
Page 13: Maintenance Instructions
No user serviceable parts inside. Refer servicing to qualified service personnel. 011_051514 CAUTION THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. 027_010914 Model 3038EDX... -
Page 14: Troubleshooting
When adding sugar to the floss head, always fill it 90% full to obtain a balanced condition in the head and eliminate vibration. DO NOT add sugar with motor running! Check for stretched or uneven suspension springs. Run the sugar completely out, then check for foreign objects or sugar lumps in the head assembly. Model 3038EDX... -
Page 15: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... -
Page 16: Cabinet Assembly
Lighted Rocker Switch Rubber Feet Digital Meter Cover Handle Name Plate p/n 42798 p/n 47155 p/n 48756 p/n 67069 p/n 55000EX (Switch Cover p/n 48786) Power Supply Cord Strain Relief For Power (Rear) Supply Cord p/n 42369 p/n 47026 Model 3038EDX... - Page 17 Top Phenolic Washer p/n 42024 Center Phenolic Washer Brass Slip Rings (2) p/n 42026 p/n 20020HD Bottom Phenolic Washer ¼--20 X 3/8” Set Screw p/n 20054 p/n 74125 10-32 Brass Hex Nuts (4) Insulator Sleeve p/n 74143 p/n 42028 Model 3038EDX...
- Page 18 Inspection Cover and Floss Head Assembly (Spinner Head 43025EX) Brush Assembly p/n 42320 Motor Tension Spring p/n 48669EX p/n 2033 10-24 X 2 ¾ Cap Screw p/n 42199 Leather Floater Spinner cap p/n 20010 p/n 43424 Floss Band and Heater Assembly p/n 48785EX Model 3038EDX...
-
Page 19: Electrical Schematic
Super Floss ELECTRICAL SCHEMATIC Model 3038EDX... -
