Installation Guide

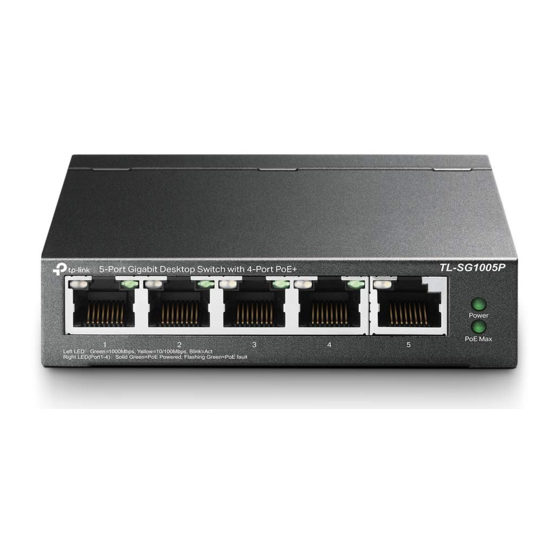

5-Port Gigabit Desktop Switch with 4-Port PoE
TL-SG1005P
Package Contents: TL-SG1005P, Power Adapter, Power Cord, Feet and Installation Guide.

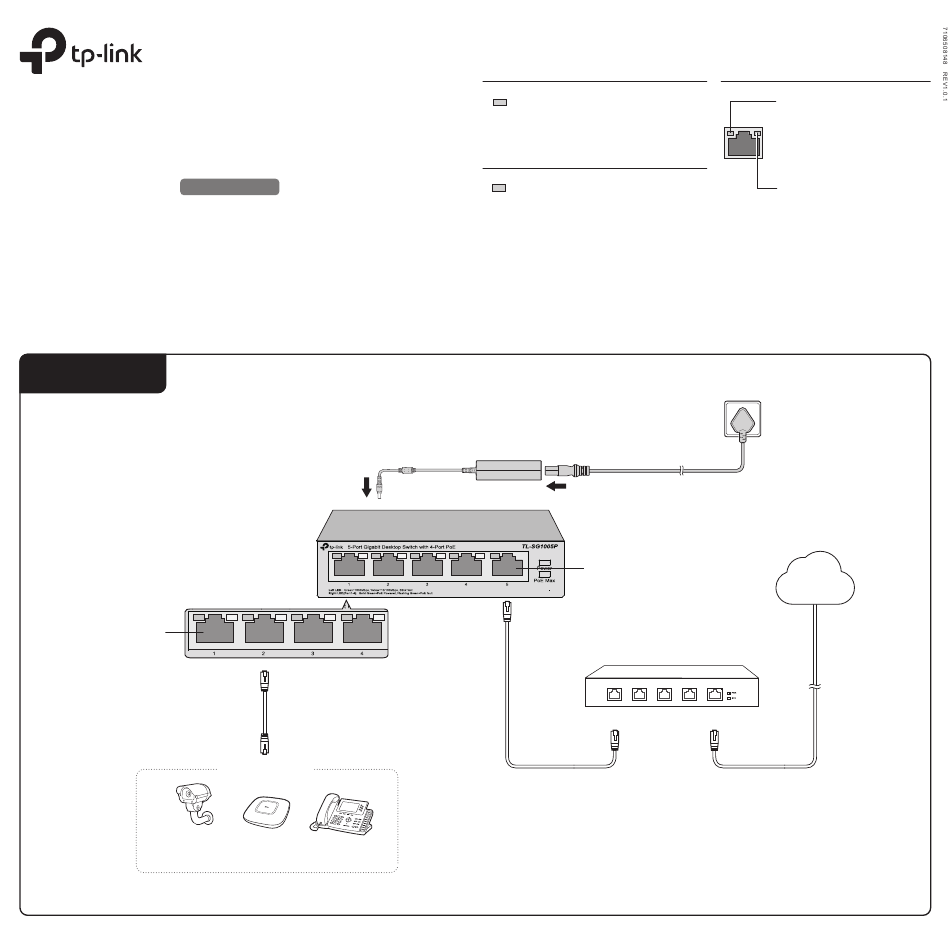

Connection
PoE Ports (1-4)
IP Camera
PoE Devices
AP
IP Phone
LED Explanation
Power
On:
Power on
Off:
Power off
Power
PoE MAX
On: 49W≤Total power supply < 56W
Flashing: Total power supply ≥ 56W
PoE Max
Off: Total power supply < 49W
DC Power Adapter
Ethernet Ports (1-5)
LAN Port
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. Maximum PoE power is 15.4W for each PoE port and 56W for all PoE ports.
Link/Act and PoE Status
On (Green):
1000Mbps device
On (Yellow):
10/100Mbps device
Flashing:
receiving data
On: Providing PoE power
Flashing: Current-overload/
Short-circuit
Off: Not providing PoE power
AC Power Cord
Internet
Router
WAN Port
Connected to a
Connected to a
Transmitting/
