1.4.2 The Rear Panel

The rear panel contains the following features. (View from left to right)
Power socket: The Power socket is where you will connect the power adapter. Please use
the power adapter provided with this TL-WR642G 108Mbps Wireless Router.
LAN 1,2,3,4:
WAN:
Reset button
There are two ways to reset the router's factory defaults:
1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the
router's Web-based Utility.
2) Use the Factory Default Reset button: With the router powered on, use a pin to press and
hold the Reset button(about 5 seconds) until the SYS LED becomes quick-flash from
slow-flash. And then release the button and wait the router to reboot to its factory default
settings.
Wireless antenna
TL-WR642G

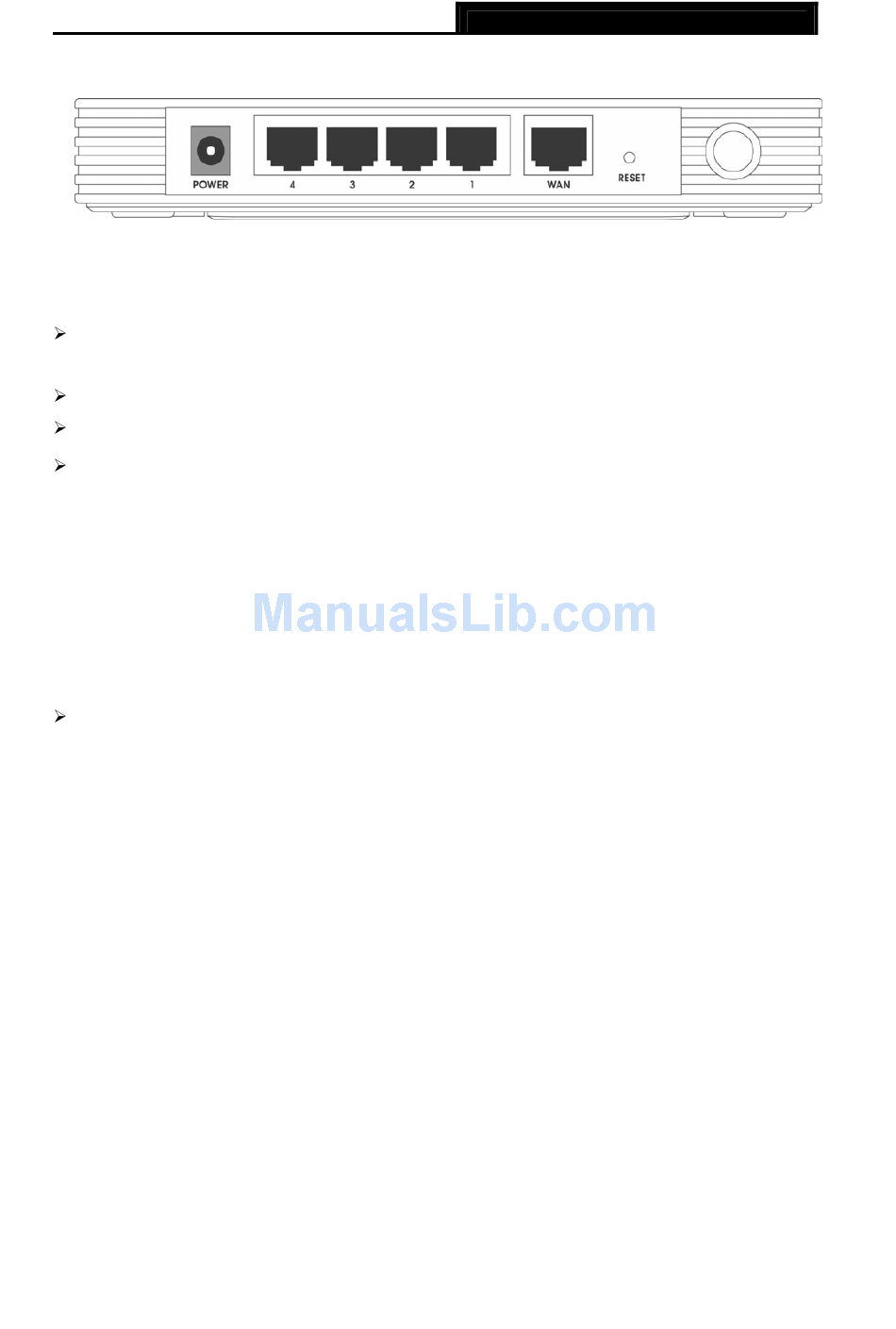

Figure 1-2 Rear Panel sketch
These ports (1, 2, 3, 4) connect the router to the local PC(s)
This WAN port is where you will connect the DSL/cable Modem, or Ethernet
To receive and transmit the wireless data.
