Mac Address Filtering - TP-Link TL-WR642G User Manual

To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enabled All button to make all entries
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries
Click the Next button to go to the next page and the Previous button to return to the previous
page.
For example, if you want to block the PC(s) on your LAN to access websites www.xxyy.com.cn,
www.aabbcc.com and websites with .net in the end on the Internet while no limit for other
websites, you should specify the following Domain filtering list:

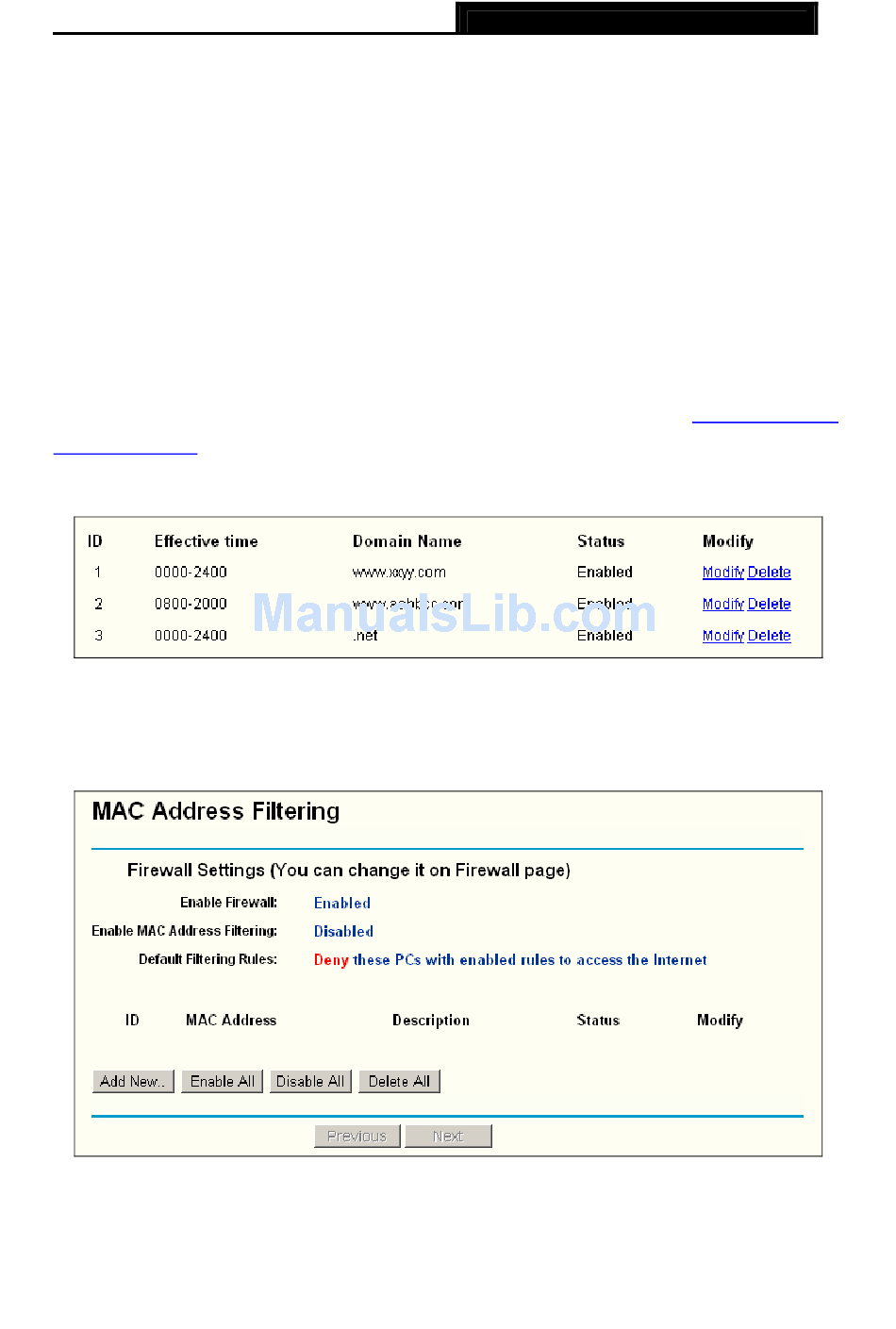

4.8.4 MAC Address Filtering

Like the IP Address Filtering page, the MAC Address Filtering page (shown in Figure 4-37) allows
you to control access to the Internet by users on your local network based on their MAC Address.
Before setting up MAC Filtering entries, you must ensure that Enable Firewall and Enable MAC
Filtering have been selected on the Firewall page. To Add a MAC Address filtering entry, clicking
the Add New... button. The page "Add or Modify a MAC Address Filtering entry" will appear,
TL-WR642G
enabled
Figure 4-37 MAC address Filtering
48
108M Wireless Router User Guide
.
