Status - Either Enabled or Disabled, "Enabled" means that port is still active. Otherwise,
•
the port is inactive.
Click Refresh to update the Current UPnP Settings List.

4.8 Security

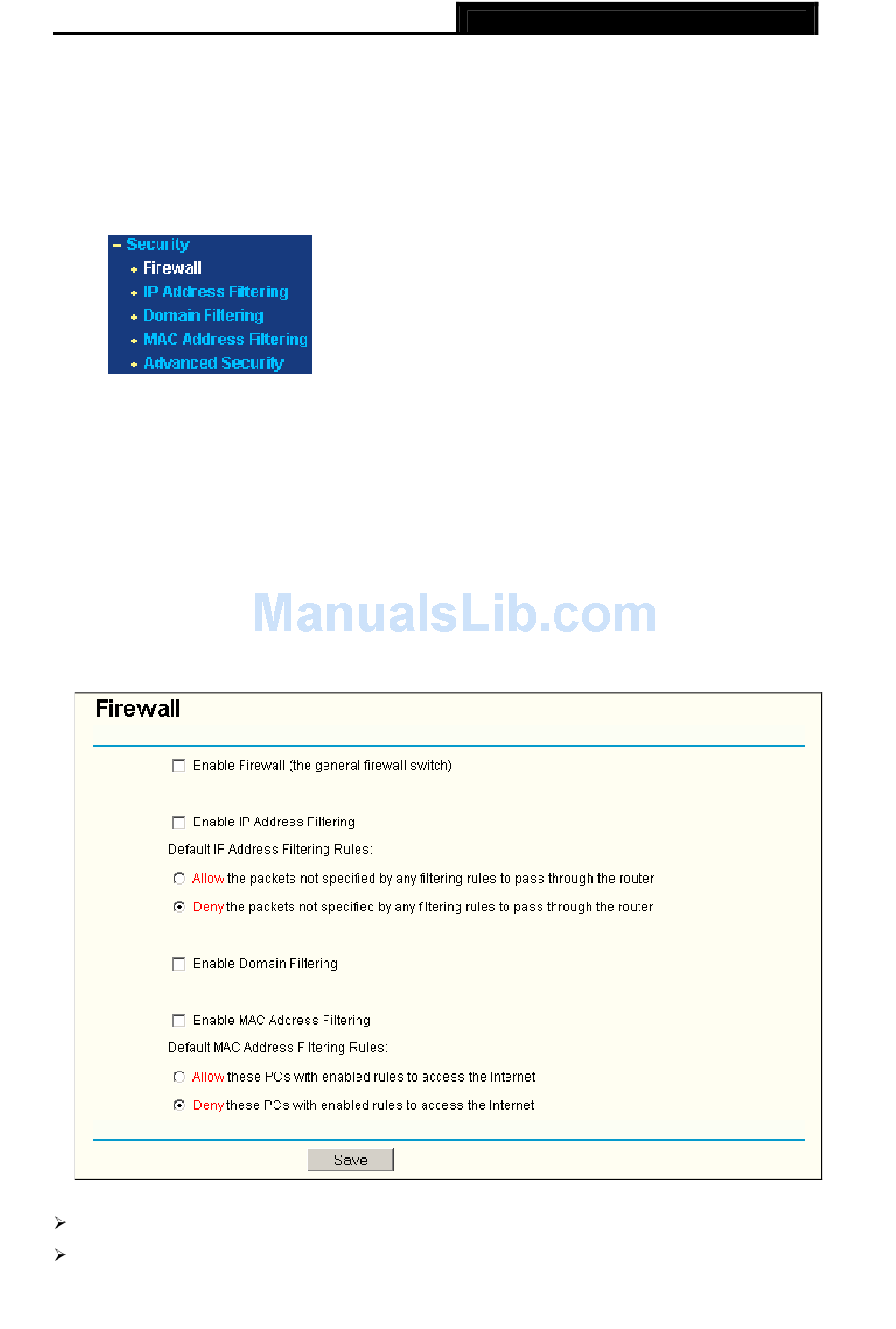

Figure 4-31 The Security menu
There are five submenus under the Security menu (shown in Figure 4-31): Firewall, IP Address
Filtering, Domain Filtering, MAC Address Filtering and Advanced Security. Click any of them,
and you will be able to configure the corresponding function. The detailed explanations for each
submenu are provided below.

4.8.1 Firewall

Using the Firewall page (shown in Figure 4-32), you can turn the general firewall switch on or off.
The default setting for the switch is off. If the general firewall switch is off, even if IP Address
Filtering, DNS Filtering and MAC Filtering are enabled, their settings are ineffective.
Enable Firewall - the general firewall switch is on or off.
Enable IP Address Filtering - set IP Address Filtering is enabled or disabled. There are two
TL-WR642G 108M Wireless Router User Guide
Figure 4-32 Firewall Settings
44
