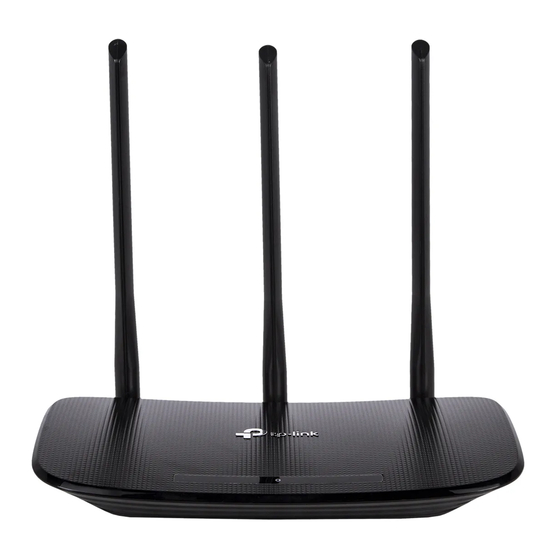

TP-Link TL-WR940N Installation Manual

Hide thumbs Also See for TL-WR940N:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
Please use only wired network connections to configure the Router.
Note
Turn off all of your network devices, including your computer, Modem and the
Router.
Connect the WAN port on your
Router to the Modem's LAN
port with an Ethernet cable.
Connect your computer to the
Port labeled 1~4 on the Router
with an Ethernet cable.
Plug
the
provided
Adapter into the Power jack on
the back of the Router and the
other
end
to
electrical wall socket.
Power
a
standard
1

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TL-WR940N

Summary of Contents for TP-Link TL-WR940N

  • Page 1 Please use only wired network connections to configure the Router. Note Turn off all of your network devices, including your computer, Modem and the Router. Connect the WAN port on your Router to the Modem’s LAN port with an Ethernet cable. Connect your computer to the Port labeled 1~4 on the Router with an Ethernet cable.
  • Page 2 (power adapter and Ethernet cable) are well connected to your device. To configure the device, you can either run the Resource CD (method one), Note or run the Web based Quick Setup Wizard (method two). TP-LINK strongly recommends that you run the Resource CD.
  • Page 3 Insert the provided Resource CD into your CD-ROM drive. The Easy Setup Assistant will automatically prompt you on your computer’s screen. Please select your product model and click Easy Setup Assistant Click START, and then follow the step-by-step instructions until complete configuration The configuration has now been completed.
  • Page 4 Login Open your web browser, type in 192.168.1.1 in the address field and press Enter A dialog box will prompt you for the User name and Password. Enter the default values and click User name: admin Password: admin Click OK Note If the dialog box does not pop up, please refer to T3 in the Troubleshooting guide.
  • Page 5 Internet Parameters Configuration This page will then display. Click Next Select Auto Detect Click Next Waiting for the Router to detect the connection type. If PPPoE is detected you will be popped up the screen as shown in A. Please proceed to A If Static IP is detected you will be popped up the screen as shown in B.

  • Page 6: Configuration For Pppoe/Static Ip

    Configuration for PPPoE This page will then display. Enter the Username and Password provided by your Click Next After completing the above configuration, please skip to Wireless Settings Configuration. Configuration for Static IP This page will then display. Enter the IP Address, Gateway, DNS provided by your ISP manually...
  • Page 7 Click Reboot The basic settings for your Router are completed. Please open the web browser and log on to the following websites: http://www.tp-link.com http://www.google.com If the above websites can be accessed, it indicates that your Router has been configured successfully and you can begin to enjoy the Internet. If the website cannot be accessed, please refer to “T4.
  • Page 8 How do I restore my Router’s configuration to its factory default settings? With the Router powered on, press and hold the Reset button on the rear panel for 8 to 10 seconds before releasing it. RESET POWER Hold it for 8 to 10 seconds Once the Router is reset, the current configuration settings will be lost and Note you will need to re-configure the router.
  • Page 9 Click Network Connections Right-click Local Area Connection Click Properties Double-click Internet Protocol (TCP/IP)
  • Page 10 Select Obtain address automatically Select Obtain DNS server address automatically Click OK Click OK...
  • Page 11 For Windows Vista OS Go to Start > Settings > Control Panel, and then you will see the following page. Click View network status and tasks Click View status Click Properties...
  • Page 12 Double-click Internet Protocol Version 4 (TCP/IPv4) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
  • Page 13 2) Configure your IE browser. Open your IE browser, click Tools tab and you will see the following screen. Click Internet Options Select Never dial a connection Click OK Now, try to log on to the Web-based configuration page again after the above settings have been configured.
  • Page 14 Modem, Router and the computer, then continue to follow the next step. Make sure that you are connected to the TP-LINK Router with the computer that was originally connected to your modem, then login to the web-based management page and browse to “Network >...
  • Page 15 Log on to the Web Management Page and click Wireless. Select Wireless Security Select WPA-PSK\WPA2-PSK Enter a Security Key using characters more (numbers or letters) in the PSK Password filed Click Save Click System Tools Click Reboot Click Reboot...

  • Page 16: Technical Support

    Australia & New Zealand Global Tel: +86 755 26504400 Tel: AU 1300 87 5465 E-mail : support@tp-link.com NZ 0800 87 5465 Service time:24hrs, 7days a week E-mail: support@tp-link.com.au Service time: Monday to Friday 9:00 AM to 9:00 PM AEST...

This manual is also suitable for:

Tl-wr941nd
