1.4 Panel Layout

1.4.1 The Front Panel

The Router's LEDs are located on the front panel (View from left to right).
Name Status
PWR
SYS
Flashing The Router is working properly
WLAN
Flashing The Wireless function is enabled
WAN/1-4 (LAN)
Flashing Sending or receiving data over corresponding port
TL-WR642G

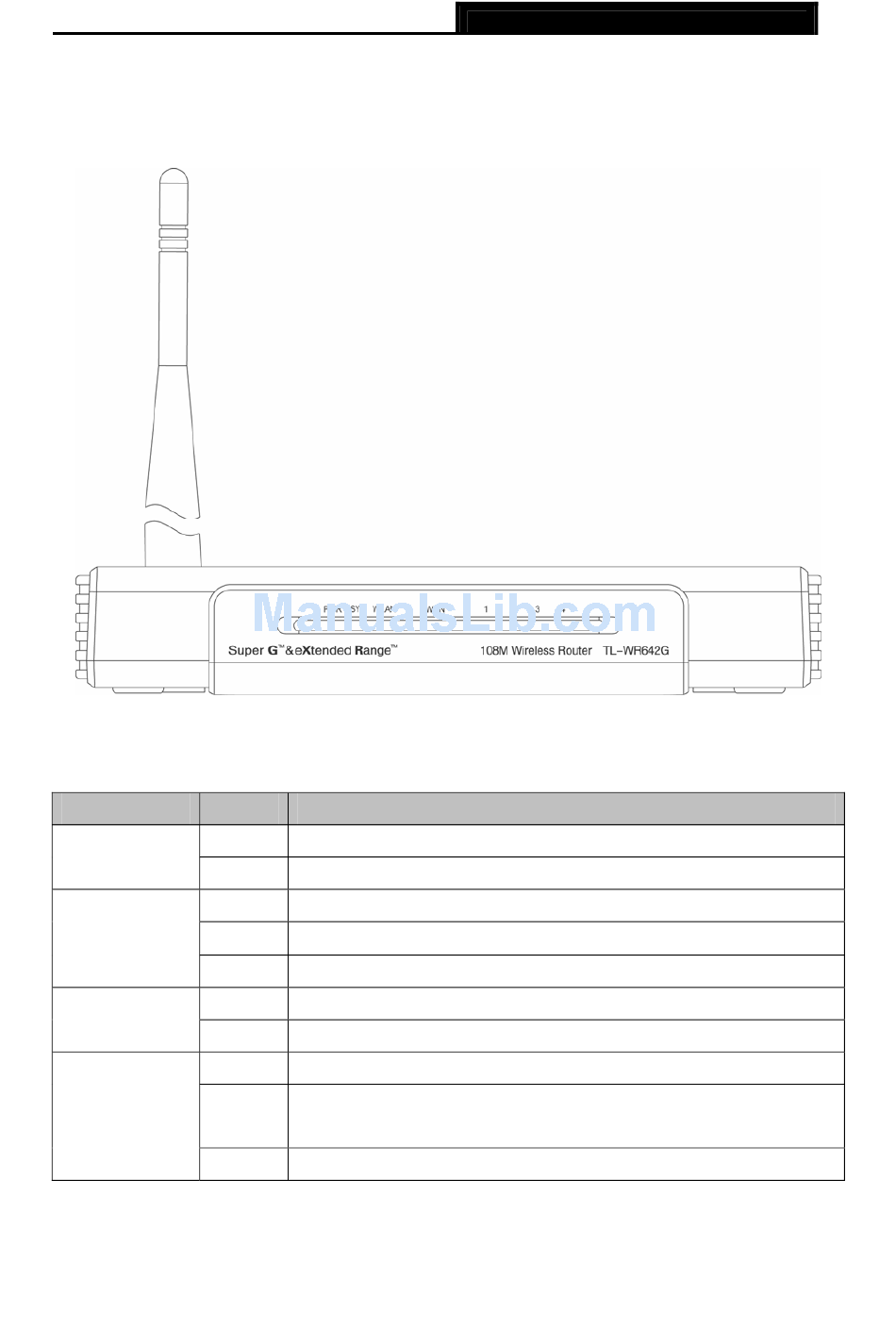

Figure 1-1 Front Panel sketch
Off No Power
On Power on
Off The Router has an error
On The Router is initializing
Off The Wireless function is disabled
Off There is no device linked to the corresponding port
There are devices linked to the corresponding ports but no data
On
transmitted or received.
108M Wireless Router User Guide
Indication
4
