to the router during login, click "Use the following DNS servers" checkbox and enter the IP
address in dotted-decimal notation of your ISP's primary DNS server. If a secondary DNS
server address is available, enter it as well.
Click the Save button to save your settings.
4. If you choose 802.1X + Dynamic IP, you should enter the follow parameters(Figure 4-8):
User Name - Enter the user name for 802.1X authentication provided by your ISP
Password - Enter the password for 802.1X authentication provided by your ISP.
Click Login to start 802.1X authentication.
Click Logout to end 802.1X authentication.
Host Name - This field is required to be filled by some service provider.
5. If you choose 802.1X + Static IP, you should enter the follow parameters(Figure 4-9) :
TL-WR642G

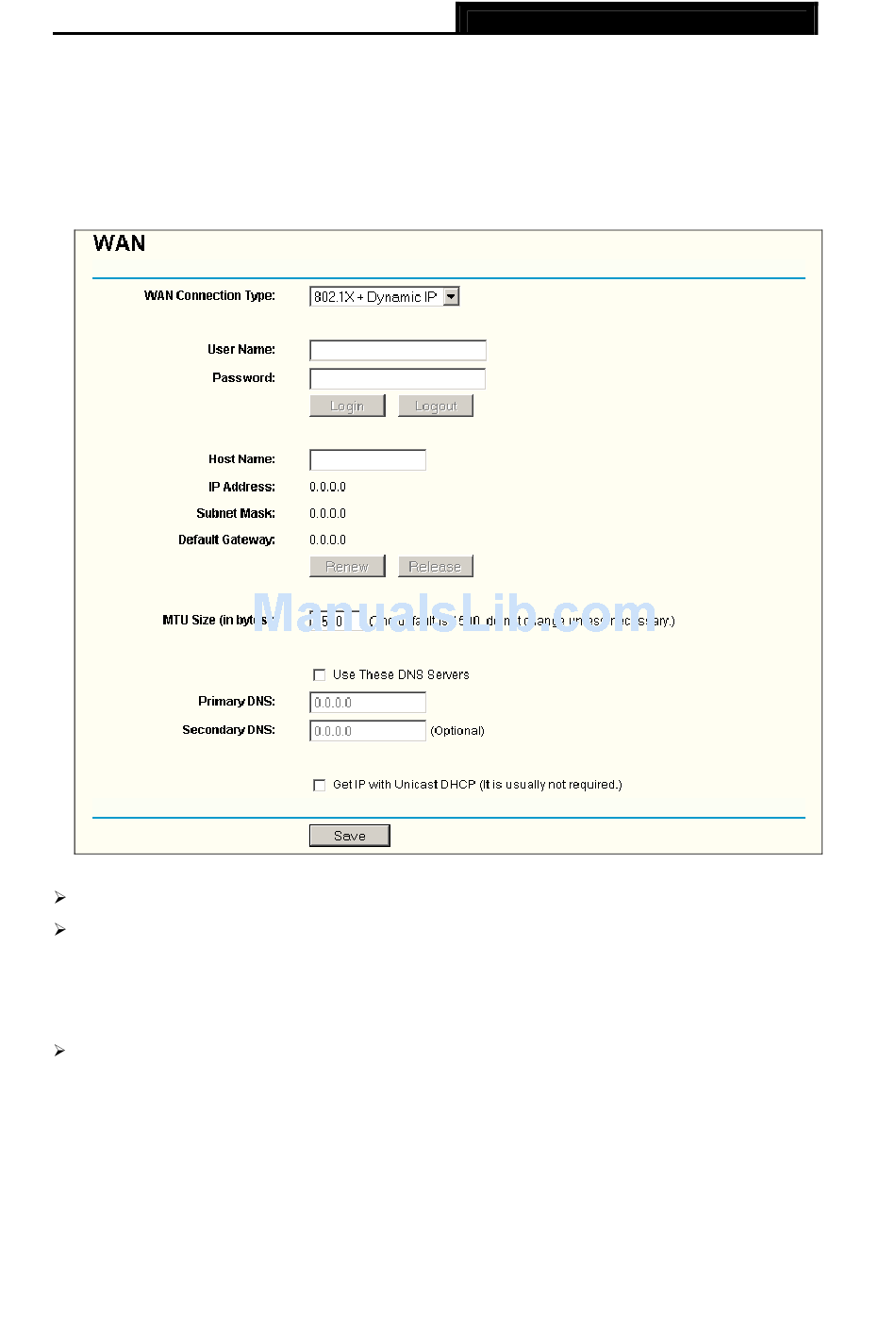

Figure 4-8 802.1X + Dynamic IP Settings
21
108M Wireless Router User Guide
