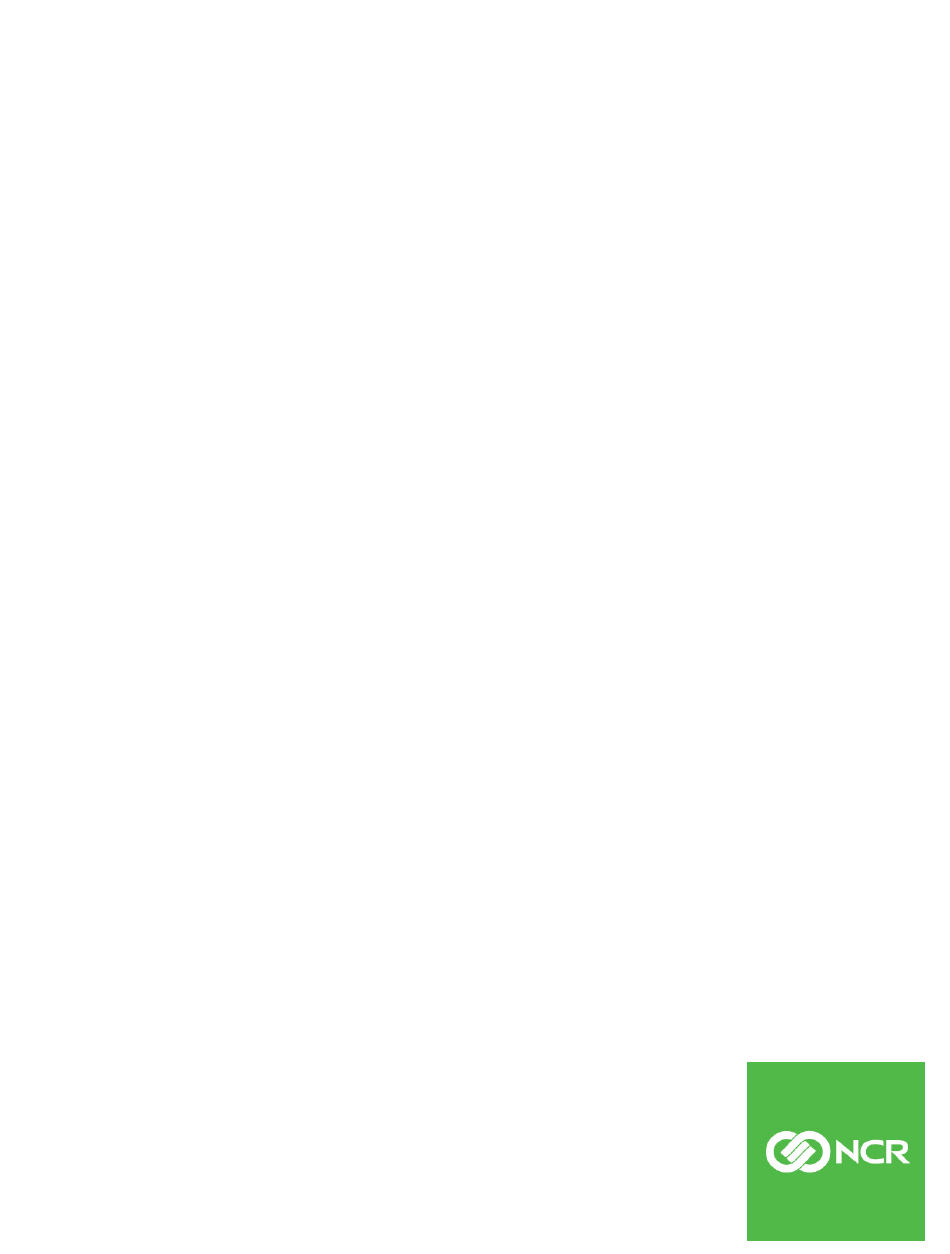

- Page 1 Kit Instructions VESA Mount Adapter Plate 7702-K321 Issue B...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 VESA Mount Adapter Plate This kit provides an adapter plate for installing the following displays on an external VESA mount system that has a larger mounting plate than the inset in the Back Cabinet of the terminal: • RealPOS XR5 (7701) POS •...
- Page 4 VESA Mount Adapter Plate Installation Procedure RealPOS XR5/XR7/XR7 Plus POS Mount the VESA Plate and the Third Party Mounting Plate on the back of the display. The required screw length depends on the thickness of the Third Party Mounting Plate. Note: For RealPOS XR5/XR7/XR7 Plus POS, use the 75 mm or 100 mm pattern on the VESA Plate.
- Page 5 VESA Mount Adapter Plate Use the below table to determine the proper screw to use. Mounting Plate Screw Size Screw Description Thickness 0.5mm – 2mm M4 x 10 Steel Pan Head with SEMS Washer 2mm – 4mm M4 x 12 Steel Pan Head with SEMS Washer 4mm –...
- Page 6 VESA Mount Adapter Plate 5968/5985 RealPOS X-Series Display Mount the VESA Plate and the Third Party Mounting Plate on the back of the display. The required screw length depends on the thickness of the Third Party Mounting Plate. Note: For 15" 5968/5985 RealPOS X-Series Displays, use the 75 mm or 100 mm pattern on the VESA Plate.
- Page 7 VESA Mount Adapter Plate Use the below table to determine the proper screw to use. Mounting Plate Screw Size Screw Description Thickness 0.5mm – 2mm M4 x 14 Steel Pan Head with SEMS Washer 2mm – 4mm M4 x 16 Steel Pan Head with SEMS Washer 4mm –...
