Alpha ESS Co., Ltd.
+86 513 806 068 91
info@alpha-ess.com
www.alpha-ess.com
JiuHua Road 888, Nantong High-Tech Industrial
Development Zone, Nantong City, 226300
Alpha ESS Europe GmbH
+49 610 3459 1601
europe@alpha-ess.de
www.alpha-ess.de
Paul-Ehrlich-Straße 1a, 63225 Langen, Hessen
Alpha ESS Australia Pty. Ltd.
+61 402 500 520 (Sales)
+61 1300 968 933 (Technical Support)
australia@alpha-ess.com
www.alpha-ess.com.au
Suite 1, Level 1, 530 Botany Road, Alexandria,
NSW, 2015
Alpha ESS UK Co., Ltd
uk@alpha-ess.com
Drake House, Long Street, Dursley, gl11 4hh
Alpha ESS Suzhou Co., Ltd.
+86 512 6828 7609
info@alpha-ess.com
www.alpha-ess.com
Level 15,SIPC 158 Wangdun Road SIP Suzhou,
215028
Alpha ESS Italy S.r.l.
+39 599 239 50
info@alpha-ess.it
www.alpha-ess.it
Via Loda,17-41013 Castelfranco Emilia(MO)
Alpha ESS Korea Co., Ltd
+82 64 721 2004
korea@alpha-ess.com
2F, 19-4, Nohyeong 11-gil, Jeju-si, Jeju-do,
Republic of Korea
INSTALLATION MANUAL
INSTALLATIONMANUAL
ENERGY STORAGE SYSTEM (ESS)
ENERGYSTORAGESYSTEM(ESS)

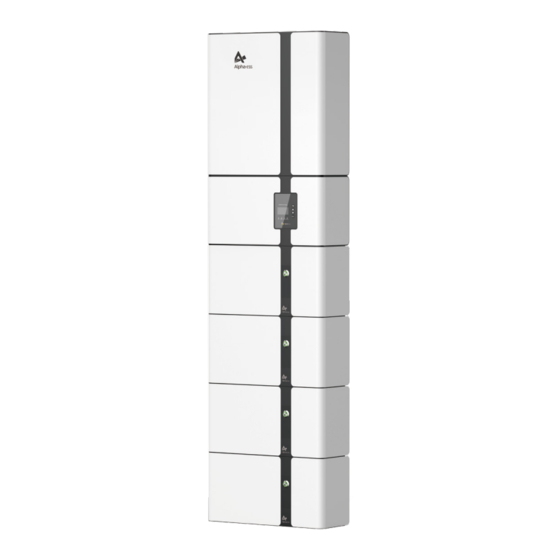

STORION-SMILE-T10 (OUTDOOR)
STORION-SMILE-T10(INDOOR)
V01.25062019
Advertisement
Table of Contents
Related Manuals for Alpha ESS Storion-SMILE T10
Summary of Contents for Alpha ESS Storion-SMILE T10
- Page 1 V01.25062019 INSTALLATION MANUAL INSTALLATIONMANUAL ENERGY STORAGE SYSTEM (ESS) ENERGYSTORAGESYSTEM(ESS) STORION-SMILE-T10 (OUTDOOR) STORION-SMILE-T10(INDOOR) Alpha ESS Co., Ltd. Alpha ESS Suzhou Co., Ltd. +86 513 806 068 91 +86 512 6828 7609 info@alpha-ess.com info@alpha-ess.com www.alpha-ess.com www.alpha-ess.com JiuHua Road 888, Nantong High-Tech Industrial...
-
Page 2: Table Of Contents
CONTENTS Copyright Statement This manual is under the copyright of Alpha ESS Co., Ltd, with all rights reserved. Please keep INTRODUCTION the manual properly and operate in strict accordance with all safety and operating instruc- tions in this manual. Please do not operate the system before reading through the manual. -
Page 3: Introduction
INTRODUCTION INTRODUCTION INTRODUCTION PV Inverter Grid Meter Grid Meter Grid 1.1 System Introduction AlphaESS Storion-SMILE-T10 (incl. M4856-S, HV50056 and SMILE-T10-INV) can be applied in DC-coupled systems (mostly new installation), AC-coupled systems (mostly retrofit) and Hybrid-coupled systems (mostly retrofit, and PV capacity-increase), as the Normal Loads following scheme: Grid Meter... -
Page 4: General Precautions
INTRODUCTION INTRODUCTION 1.2 General Precautions CAUTION: Risk of injury through lifting or dropping the system. DANGER The inverter and battery are heavy. There is risk of injury if the inverter or battery is lifted incorrectly or dropped during transport or when attaching to or removing from the wall. Danger to life due to high voltages of the PV array, battery and electric shock. -
Page 5: System Appearance
INTRODUCTION INTRODUCTION 1.4 System Appearance M4856-S M4856-S Screw package: PE Protective Gasket (X4) Expansion tube (X4) Battery pack (X1) Screw M5*10(X4) bag (X1) Expansion screw (X4) Battery Battery connector: Hexagon nuts Bracket (X2) communication Cable tie (X6) Black power line (X1) with flange (X4) line (X1) HV50056... -
Page 6: Hv50056
INTRODUCTION INTRODUCTION 1.4.1.2 LED Display In normal condition, LED display three status: Status Normal Protection Fault Red and green Green light Red light LED Display lights blink for blinks for 1 sec blinks for 1 sec 1 sec 1.4.2 HV50056 1.4.2.1 Specifications Figure 9 High-voltage Control Box –... -
Page 7: Liability Limitation
INSTALLATION Item Description (DE) DC Switch This Manual introduces the basic steps on how to install and set up Alpha ESS Storion-SMILE-T10 M4856-S is a sealed component with no access to battery terminals or cell components Battery +/- within module. -
Page 8: Restricted Locations
INSTALLATION INSTALLATION The following location are not allowed for installation: Where the top of the SMILE-T10 is within 300 mm of the ceiling or structure above the SMILE-T10, the ceiling or structure surface shall be suitably non-combustible for an • habitable rooms; area of 600 mm past the extremities of the SMILE-T10. - Page 9 INSTALLATION INSTALLATION Figure 15 Assembling Battery Brackets Use a screwdriver to assemble the battery mounting bracket onto the outside of the Step 3 battery, as Figure 12 shows. Figure 17 Mounting Battery Insert the expansion tube into the drilled hole. Pass the expansion screw through the Step 5 gasket and lock with a screwdriver, as Figure 14 shows.
- Page 10 INSTALLATION INSTRUCTIONS INSTALLATION Fix the bracket A of the inverter on the rear bracket of HV50056 with the flange nuts, as Step 8 shown in Figure 18. The bottom of the bracket A shall be placed at the same horizontal line with the rear bracket of HV50056.
-
Page 11: Wiring
INSTALLATION INSTALLATION Please hang the HV50056 on the rear bracket of HV50056 and hang the SMILE-T10-INV one side terminal shall go Step 10 HV50056 & Battery power cable connection sequence: on the bracket B of the inverter. Fix them with screws. through the waterproof cap→through the sealing ring→through the joint of the battery, fixed to the copper bar with M5 nut inside of the battery;... - Page 12 INSTALLATION INSTALLATION NOTE: The communication cable can go directly through waterproof sealing ring, there is no need to make net cable on the spot. Insert the terminal resistance into the last COM port of the last battery. Terminal Resistance: NOTE: 1.
- Page 13 INSTALLATION INSTALLATION Step 6 Connect the PV MC4 connector to the PV ports of the inverter. On-Grid (L1/L2/L3/N/PE) Back-Up (L1/L2/L3/N) On-Grid (L1/L2/L3/N/PE) Back-Up (L1/L2/L3/N/PE) Figure 33 DIP Switch Definition DIP switch defines the ID address of each battery in one cluster. Set the DIP switch of the Step 9 nearest battery from the HV50056 to the farthest battery in sequence of 1 to N.
-
Page 14: Power Meter
INSTALLATION INSTALLATION After wiring, please open the front cover of HV50056 and turn on the molded case circuit 2.4 Power Meter Step 10 breaker. The power meter should be installed and connected in the distribution box. There are two kinds of power meters, ADL-3000 and ACR10R, which users can choose from. ADL-3000: three-phase meter (with or without CT) ACR10R: three-phase meter with CT 2.4.1 Meter ADL-3000 (If Applicable) - Page 15 INSTALLATION INSTALLATION 2.4.1.2 ADL-3000 (without CT, with meter plug), if applicable: 2.4.1.3 ADL-3000 (with CT, without meter plug), if applicable: A PV meter will be ap-plied in an AC/hybrid system. A PV meter will be applied in an AC/hybrid system. Figure 38 ADL-3000 Connection (without CT, with Meter Plug) Figure 39 ADL-3000 Connection (with CT, without Meter Plug) Note: When connecting CTs, pay attention to the current direction.
-
Page 16: Acr10R Meter (If Applicable)
INSTALLATION INSTALLATION 2.4.1.4 ADL-3000 (with CT, with meter plug), if applicable: 2.4.2 ACR10R Meter (If Applicable) A PV meter will be applied in an AC/hybrid system. A PV meter will be applied in an AC/hybrid system. Figure 40 ADL-3000 Connection (with CT, with Meter Plug) Figure 41 ACR10R with CT Connection (without Meter Plug) Note: When connecting CTs, pay attention to the current direction. -
Page 17: Meter Setting
INSTALLATION INSTALLATION 2.4.3 Meter Setting Step 9 Click the “SET” button again to Step 10 Click the “Enter” button to enter 2.4.3.1 ADL3000 enter the save interface: the following interface, press the up and down arrow keys, and set “no” to “YES” to Step 1 The initial interface of the meter Step 2 Click the “SET”... -
Page 18: System Operation
SYSTEM OPERATION EMS INTRODUCTION AND SET UP Step 5 Set the communication address and communication baud rate in the commu- EMS INTRODUCTION AND SET UP nication setting interface. When the meter is used as the Grid meter (DC, AC/Hybrid system), the address is set to “005”. When it is used as the PV meter (AC/Hybrid 4.1 Function Description system), the address is set to “006”. -
Page 19: Setting
EMS INTRODUCTION AND SET UP EMS INTRODUCTION AND SET UP 4.2 Setting Figure 50 Grid Setting InterfaceInterface Figure 49 CT Meter Option Interface Figure 43 Password Interface Figure 44 Setting Menu Step 7 Choose CT Meter. If you use CT, Step 8 Click the Grid Function to set up please enter the relevant CT ratio. -
Page 20: Ems Communication Checking
EMS INTRODUCTION AND SET UP EMS INTRODUCTION AND SET UP Note: It is needed to set the following 3 parameters for manual mode: IP Address: IP address; Subnet Mask: Subnet mask; Default Gateway: Default gateway; Automatic display one parameter: MAC Address: display MAC Address. Figure 55 Force Charge Start Time Figure 56 Force Charge End Time Setting Setting... -
Page 21: Assembling Of The Front Panels
"Install new system" to register new Figure 68 Assembling of the Front Panels system at Alpha ESS. Step 1 Inverter part: please unscwer the scwews of Bracket A and hang the front panel of the inverter onto Bracket B. Fix the front panel to Bracket B with scwews. -
Page 22: System Setup In Monitoring
SYSTEM REGISTRATION ON-LINE MONITORING 5.1.2 Other Information Step 3 Finally, select the "Other Information" submenu and set the following parameter: - ACDC mode: it should be set - Time zone - max. feed-in rate: In some countries you must set the max. feed-in rate in % according to the relevant regulation. -
Page 23: Annex
ON-LINE MONITORING ANNEX ANNEX 7.1 Datasheet – AlphaESS Storion-SMILE-T10 STORION SMILE-T10 Storion-SMILE-T10 Model System Specification Nominal Output Power 10 000 VA Max. DC Input Power 13 000 W* 12 000 W** Capacity Range 11.5 kWh ~ 23.0 kWh (90% DoD) Battery Chemistry LFP (LiFePO4) IP Protection...
