Metra Electronics 95-6542 Installation Instructions Manual

Dodge dakota 1997-2000, dodge durango 1998-2000

Hide thumbs

page of 8

/ 8
Bookmarks

Available languages

Quick Links

Download this manual

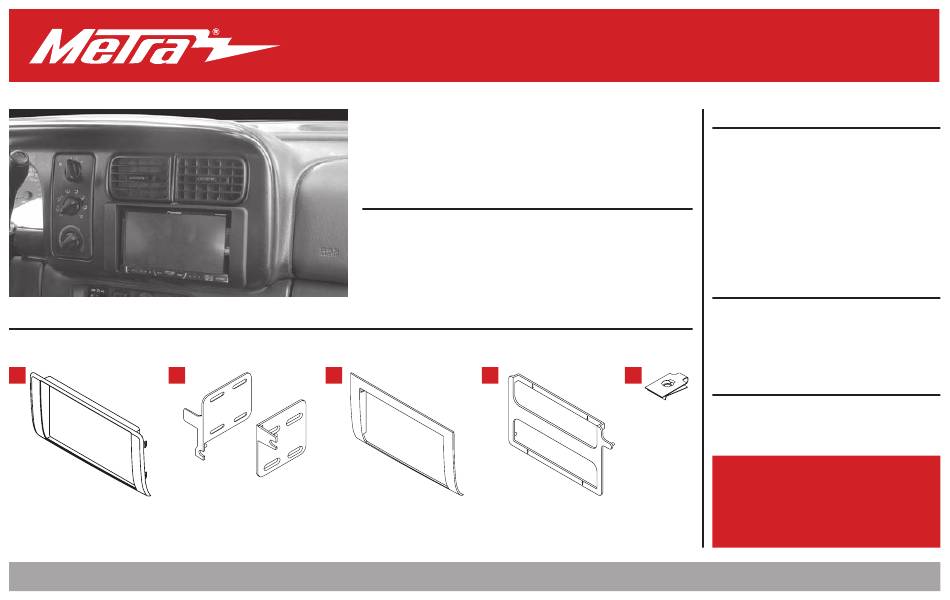

KIT COMPONENTS

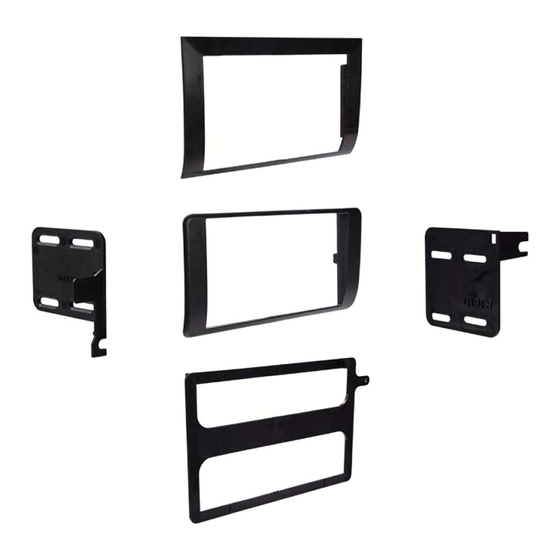

• A) Radio trim panel • B) Radio brackets • C) Radio bezel cut template • D) Sub-dash cut template • E) (1) Speed clip

The World's best kits.

Dodge Dakota

Dodge Durango

KIT FEATURES

• ISO DDIN radio provision

• Textured radio trim panel

metraonline.com

1997-2000

1998-2000

95-6542

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................2

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS

Wiring Harness: • 70-1817 (sold separately)

Antenna adapter: • Not required

TOOLS REQUIRED

• Panel removal tool • 3/8" socket wrench

• Cutting tool

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

REV. 7/10/17 INST95-6542

Need help?

Do you have a question about the 95-6542 and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics 95-6542

Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. The World’s best kits. metraonline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 7/10/17 INST95-6542...
Page 2 DASH DISASSEMBLY KIT PREPARATION 1. Place the vehicle in park and apply the 1. Clip the radio bezel cut template onto parking brake. the factory dash bezel, and then mark the inside of the opening. (Figure A) 2. With the key in the ignition position, 2.
Page 3 KIT ASSEMBLY ISO DDIN radio provision 1. Attach the radio brackets to the radio using the screws supplied with the radio. (Figure A) 2. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio.
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians The World’s best kits. metraonline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 7/10/17 INST95-6542...
Page 5 Además, no quite el radio de fábrica con la llave en la posición o de encendido ni con el vehículo funcionando. The World’s best kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 7/10/17 INST95-6542...
Page 6 DESMONTAJE DEL TABLERO PREPARACIÓN DEL KIT 1. Coloque la palanca del vehículo en 1. Enganche la plantilla de corte del bisel “Park” y ponga el freno de mano. del radio al bisel del tablero de fábrica, luego marque la parte interior de la 2. Con la llave en posición de encendido, abertura.
Page 7 ENSAMBLE DEL KIT Provisión de radio ISO DDIN 1. Una los soportes del radio al radio usando los tornillos que se suministraron con el radio. (Figura A) 2. Localice el arnés de cableado de fábrica y el conector de la antena en el tablero y realice todas las conexiones necesarias al radio.
Page 8 800-354-6782 for more information and take steps www.installerinstitute.com o llame al toward a better tomorrow. 800-354-6782 para obtener más información y avance hacia un futuro mejor. Metra recomienda MECP Técnicos certificados The World’s best kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 7/10/17 INST95-6542...
