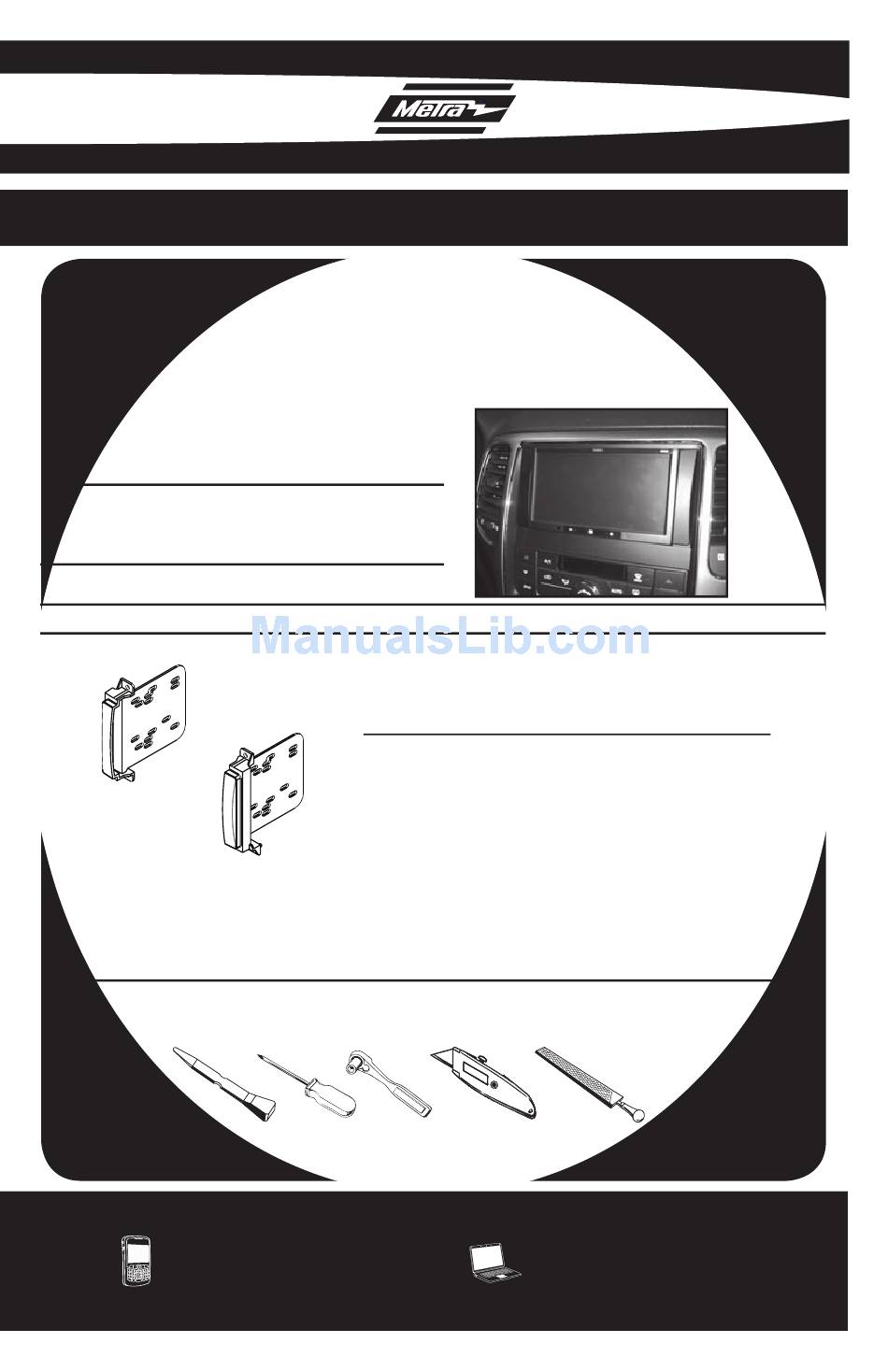

INSTALLATION INSTRUCTIONS FOR PART 95-6513B
APPLICATIONS
2011 JEEP
GRAND CHEROKEE
95-6513B
KIT FEATURES
• Double DIN Head unit provision
• Painted matte black to match factory
KIT COMPONENTS
• A) DDIN Brackets
A
WIRING & ANTENNA CONNECTIONS (Sold Separately)
• CHTO-03 Amplifi ed or XSVI-6522 Non-Amplifi ed Wire Harnesses
• 40-EU10 - European Antenna Adapter 2006-up
TOOLS REQUIRED
• Panel Removal Tool • Phillips Screwdriver • Socket Wrench
• Cutting tool or fi le
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
metraonline.com
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics 95-6513B
Summary of Contents for Metra Electronics 95-6513B
-
Page 1: Kit Components
INSTALLATION INSTRUCTIONS FOR PART 95-6513B APPLICATIONS 2011 JEEP GRAND CHEROKEE 95-6513B KIT FEATURES • Double DIN Head unit provision • Painted matte black to match factory KIT COMPONENTS • A) DDIN Brackets WIRING & ANTENNA CONNECTIONS (Sold Separately) • CHTO-03 Amplifi ed or XSVI-6522 Non-Amplifi ed Wire Harnesses •... - Page 2 INSTALLATION INSTRUCTIONS FOR PART 95-6513B TABLE OF CONTENTS DASH DISASSEMBLY • 2011 JEEP GRAND CHEROKEE ....1 DASH PREPARATION • 2011 JEEP GRAND CHEROKEE ....2...
- Page 3 95-6513B DASH DISASSEMBLY 2011 JEEP GRAND CHEROKEE Unclip and remove panel from around the radio including the vents and the climate controls. (Fig. A) Remove (4) 7MM screws securing radio to dash to remove. (Fig. B) Remove (3) 7MM screws securing the radio bracket to the sub dash.
- Page 4 95-6513B DASH PREPARATION 2011 JEEP GRAND CHEROKEE Modification to the sub dash is necessary for the aftermarket DDIN radio to fit. You will need to trim the top and bottom of the sub dash cavity. (Fig. A) Continue to Kit Assembly ...
- Page 5 95-6513B KIT ASSEMBLY DDIN HEAD UNIT PROVISION Attach the Double DIN brackets to the after market radio using the screws supplied with the radio. (Fig. A) Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
- Page 6 INSTALLATION INSTRUCTIONS FOR PART 95-6513B NOTES...
- Page 7 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 95-6513B APLICACIONES 2011 JEEP GRAND CHEROKEE 95-6513B CARACTERÍSTICAS DEL KIT • Accesorio para unidades centrales DIN dobles • Pintado de color negro mate para que coincida con el color de fábrica COMPONENTES DEL KIT •...
- Page 8 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 95-6513B DESMONTAJE DEL TABLERO • 2011 JEEP GRAND CHEROKEE ....1 TABLERO DE PREPARACIÓN • 2011 JEEP GRAND CHEROKEE ....2...
- Page 9 95-6513B DESMONTAJE DEL TABLERO 2011 JEEP GRAND CHEROKEE Desenganche y retire el panel de alrededor del radio, incluidas las rejillas de ventilación y los controles de clima. (Fig. A) Retire (4) tornillos de 7 mm que sujetan el radio al tablero para retirarlo.
- Page 10 TABLERO DE PREPARACIÓN 95-6513B 2011 JEEP GRAND CHEROKEE Es necesaria una modificación en el subtablero para que encaje el radio DDIN de posventa. Deberá recortar la parte superior y la parte inferior del hueco del subtablero. (Fig. A) Continúe con el montaje del kit ...
- Page 11 95-6513B MONTAJE DEL KIT ACCESORIOS PARA UNIDADES CENTRALES Coloque los soportes DIN dobles en el radio de posventa usando los tornillos suministrados con el radio. (Fig. A) Ubique el arnés del cableado de fábrica y el enchufe de la antena en el tablero.
- Page 12 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 95-6513B NOTAS...
