Metra Electronics 95-6547B Installation Instructions

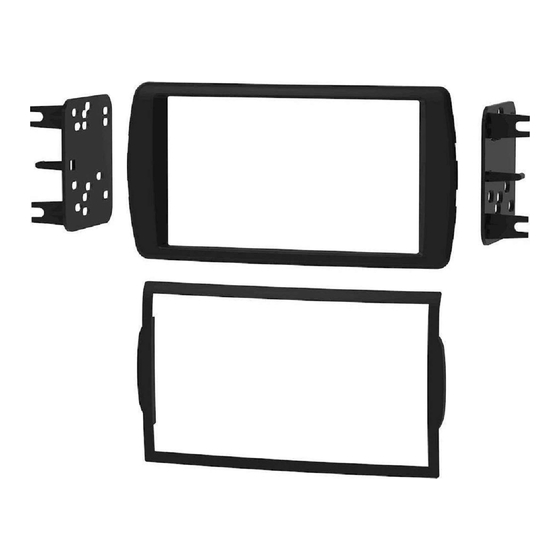

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Cut template

Metra. The World's Best Kits.

Dodge Dakota

2001-2004

KIT FEATURES

• ISO DDIN radio provision

MetraOnline.com

/ Durango

2001-2003

95-6547B

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-1817 (2001) • 70-6502 (02-04)

Antenna Adapter: N/R (2001) • 40-CR10 (02-04)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• T20 Torx screwdriver • Cutting tool • File

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

REV. 4/13/18 INST95-6547B

Table of Contents

Need help?

Do you have a question about the 95-6547B and is the answer not in the manual?

Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 4/13/18 INST95-6547B...
Page 2 DASH DISASSEMBLY 1. Remove (3) T20 Torx screws from 2 Screws the bottom edge of the panel below the steering column, then unclip and remove the panel. (Figure A) 2. Remove (2) Phillips screws from the instrument cluster panel above the gauges.
Page 3 KIT PREPARATION KIT ASSEMBLY 1. Remove (4) Phillips screws securing the 1. Secure the radio brackets to the radio climate controls, then remove them in using the screws supplied with the preparation for the following steps. radio. (Figure A) 2. Place the cut template over the factory 2.
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 4/13/18 INST95-6547B...
