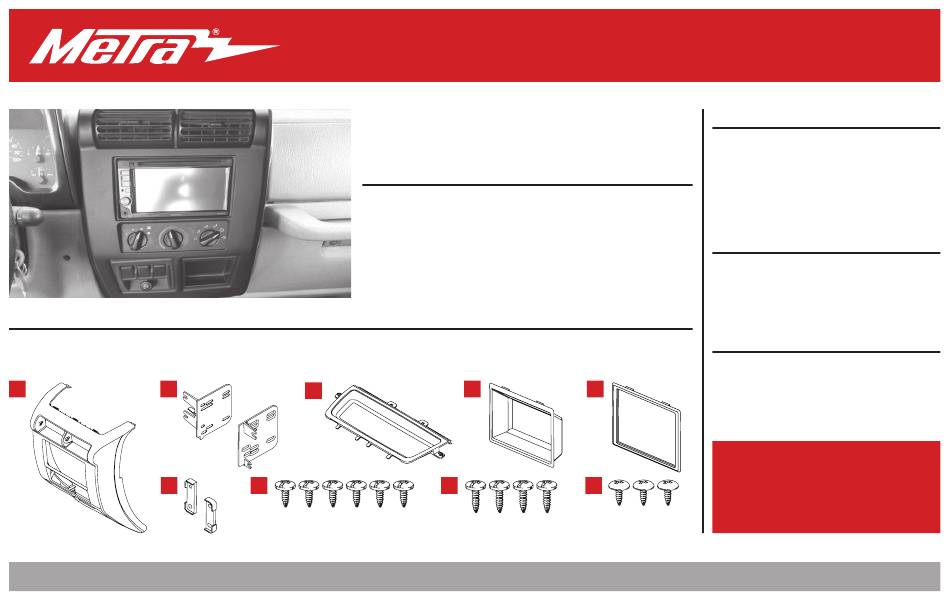

KIT COMPONENTS
• A) Radio/climate control panel • B) Radio brackets • C) Tray • D) Storage pocket • E) Dummy panel • F) Climate control spacers
• G) (6) #8 x 3/8" Pan-head Phillips screws • H) (4) #8 x 5/8" Pan-head Phillips screws • I) (3) #8 x 1/2" Truss-head Phillips screws
A
B
F
Metra. The World's Best Kits.
®
Jeep Wrangler
KIT FEATURES
• ISO DDIN radio provision
• Complete center dash panel for a factory look
C
G
MetraOnline.com
1997-2002
D
E
H
I
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
95-6549
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly . .................................................2
Kit Preparation . ...................................................2-3
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-1817
Antenna Adapter: N/R
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 3/8' socket wrench • Cutting tool • Grinding tool
• 1/8" drill bit
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 7/26/18 INST95-6549
Advertisement
Related Manuals for Metra Electronics 95-6549
Summary of Contents for Metra Electronics 95-6549
- Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 7/26/18 INST95-6549...
- Page 2 DASH DISASSEMBLY KIT PREPARATION 1. Unclip the top cover from the instrument 1. Remove (4) Phillips screws securing the panel, then remove (2) Phillips screws climate control panel to the dash, then exposed. temporarily move it out of the way in preparation for the next step. 2. Remove the ashtray, then remove (1) 2. Cut the shaded area in the sub-dash Phillips screw exposed. Remove shaded area to allow room for the radio assembly. 3. Starting from the bottom edge of the (Figure A) radio/climate control panel, unclip, unplug, and remove the panel. Note: Some radios may require more cutting than shown. Cut as needed to 4. Remove (2) 3/8” screws securing the allow room for the aftermarket radio. radio to the dash. Slide the radio out, (Figure A) (Figure A) then unplug and remove the radio. Note: The dash cut goes through the center of the lower left mounting hole. Continue to Kit Preparation (See detail) Detail From the factory radio/climate control panel: 3. Unclip and remove the a/c vents.
- Page 3 KIT PREPARATION KIT ASSEMBLY (CONT.) To the 95-6549 radio/climate control panel: 1. Secure the radio brackets to the radio using the screws supplied with the 7. Clip in the a/c vents. radio. (Figure A) 8. Clip in the cigarette lighter/switch panel. 2. Locate the factory wiring harness and 9. Attach the (2) panel clips. antenna connector in the dash and complete all necessary connections to the 10. Clip in either the storage pocket or dummy radio. Metra recommends using the proper panel to replace the factory ashtray. mating adapter from Metra and/or Axxess. (Figure C) 11. Secure the tray to the radio climate/control Test the radio for proper operation. panel using the (2) #8 x 3/8” Phillips 3. Secure the radio assembly to the dash pan-head screws provided. (Figure C) using (1) factory screw in the top right. (Figure A) 12.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 7/26/18 INST95-6549...
