Metra Electronics 95-6545B Installation Instructions

For eepcompass

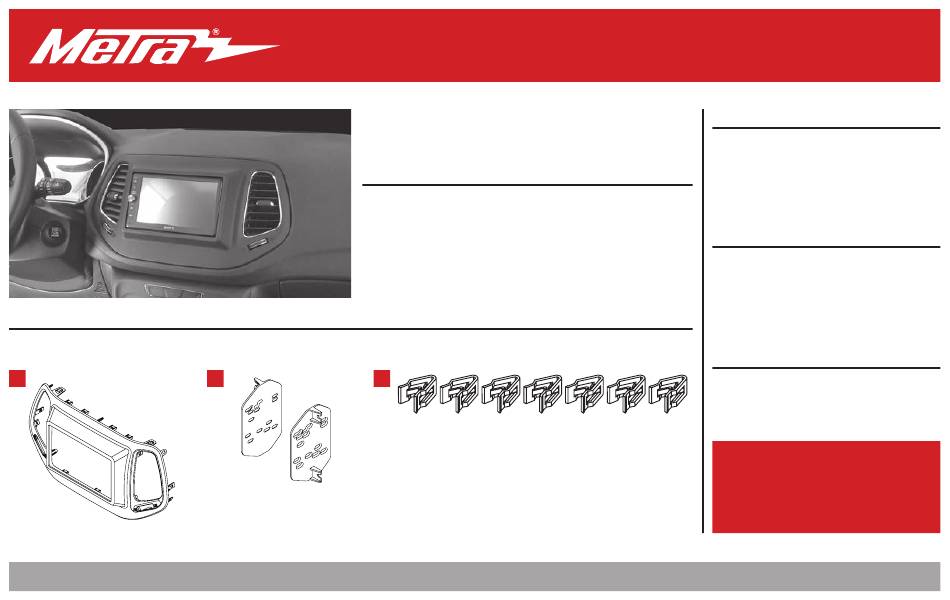

• A) Radio trim panel • B) Radio brackets • C) (7) Panel clips

Jeep Compass 2017.5-up*

• ISO DDIN radio provision

• Painted matte black

95-6545B

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly . .................................................2

Kit Preparation . ......................................................2

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wire harness: • XSVI-6523-NAV

Antenna adapter: • 40-EU10

Steering wheel control interface: ASWC-1

• Panel removal tool • Phillips screwdriver

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

REV. 1/17/18 INST95-6545B

Table of Contents

Need help?

Do you have a question about the 95-6545B and is the answer not in the manual?

Page 1 95-6545B I N S TA L L AT I O N I N S T R U C T I O N S Jeep Compass 2017.5-up* TABLE OF CONTENTS Dash Disassembly ..........2 Kit Preparation ............2 KIT FEATURES Kit Assembly ............3 • ISO DDIN radio provision • Painted matte black WIRING &...
Page 2 DASH DISASSEMBLY KIT PREPARATION 1. Unclip and remove the a/c vent panel 1. Attach the (7) panel clips to the radio surrounding the radio. trim panel. (Figure A) 2. Remove (4) 9/32” screws securing the C ontinue to Kit Assembly radio, then unplug and remove the radio. Continue to Kit Preparation (Figure A)
Page 3 KIT ASSEMBLY ISO DDIN radio provision 1. Attach the radio brackets to the radio using the screws supplied with the radio. (Figure A) 2. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/ or Axxess. 3. Test the radio for proper operation. 4. Secure the radio assembly to the dash using the factory screws. 5. Snap the radio trim panel over the radio assembly to complete the installation. (Figure A) REV. 1/17/2018 INST95-6545B Discover other car stereo video installation parts on our website.
