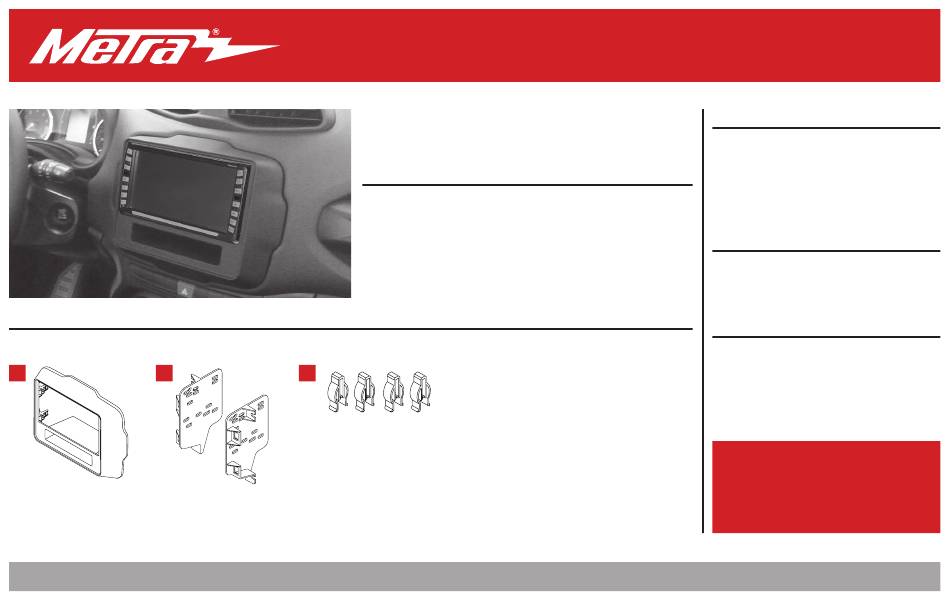

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) (4) White panel clips
A
B
Metra. The World's Best Kits.
®
Jeep Renegade 2015-up*
*Visit MetraOnline.com for up-to-date vehicle specific applications.
KIT FEATURES
• ISO DDIN radio provision
• Painted to match factory finish
C
MetraOnline.com
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
95-6532B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly . .................................................2
Kit Assembly
–ISO DIN radio provision with pocket . .................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Antenna Adapter: 40-EU55 Amplified antenna adapter
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Torx driver
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 1/18/18 INST95-6532B
