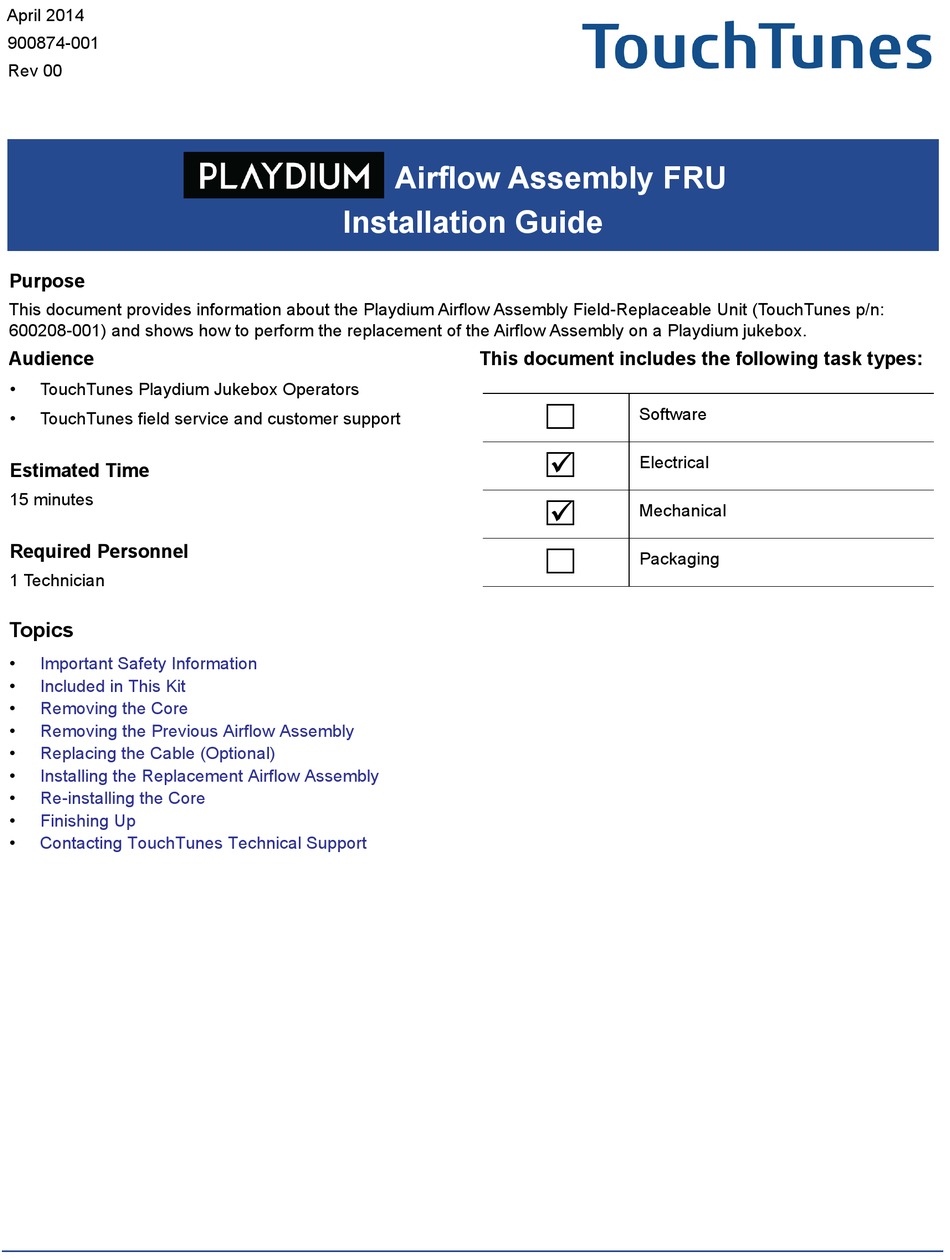

April 2014
900874-001
Rev 00
Purpose
This document provides information about the Playdium Airflow Assembly Field-Replaceable Unit (TouchTunes p/n:
600208-001) and shows how to perform the replacement of the Airflow Assembly on a Playdium jukebox.
Audience
•
TouchTunes Playdium Jukebox Operators
•
TouchTunes field service and customer support
Estimated Time
15 minutes
Required Personnel
1 Technician
Topics
•
Important Safety Information
•
Included in This Kit
•
Removing the Core
•
Removing the Previous Airflow Assembly
•
Replacing the Cable (Optional)
•
Installing the Replacement Airflow Assembly
•
Re-installing the Core
•
Finishing Up
•
Contacting TouchTunes Technical Support
PLAYDIUM Airflow Assembly FRU
Installation Guide
This document includes the following task types:
Software
Electrical
Mechanical
Packaging

Advertisement

loading
Need help?

Need help?

Do you have a question about the Playdium and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TouchTunes Playdium

Summary of Contents for TouchTunes Playdium

  • Page 1 Installation Guide Purpose This document provides information about the Playdium Airflow Assembly Field-Replaceable Unit (TouchTunes p/n: 600208-001) and shows how to perform the replacement of the Airflow Assembly on a Playdium jukebox. Audience This document includes the following task types: •...

  • Page 2: Important Safety Information

    Playdium Airflow Assembly FRU Installation Guide Important Safety Information Important Safety Information WARNING: When performing this procedure or any other maintenance on your jukebox, the unit must be powered off. To be installed by experienced service personnel only, familiar with the product.

  • Page 3: Removing The Core

    1. Unlock the payment panel and open it to reach the lever below the core. 2. Set the power rocker switch on the Playdium’s power strip to OFF. 3. Pull the pin that keeps the lever from moving (A). Then, while still pulling on the pin, pull the lever down (B) to pop the...
  • Page 4 Playdium Airflow Assembly FRU Installation Guide Removing the Previous Airflow Assembly 4. Lift the core, and carefully set it face down on a horizontal, flat surface (such as a table or a counter) covered by a soft cloth or similar, to avoid scratching or otherwise damaging the touch screen glass.
  • Page 5 Playdium Airflow Assembly FRU Installation Guide Replacing the Cable (Optional) 3. Disconnect the cable from the Airflow Assembly. Replacing the Cable (Optional) Check the cable that connects the Airflow Assembly to the Backplane, and ensure it is not damaged. If the cable is damaged, you can replace it using the cable provided with your Airflow Assembly FRU kit.
  • Page 6 Playdium Airflow Assembly FRU Installation Guide Installing the Replacement Airflow Assembly Installing the Replacement Airflow Assembly 1. Move the airflow assembly into position. 2. Hook up the top-left tab first (A), then the top-right (B). 3. Hook up the back tabs, until the assembly snaps into place (C).
  • Page 7 Re-installing the Core Note: Playdium MUST be mounted vertically when docking the core. Do not attempt to dock the core while the chassis is not mounted vertically. Failure to do so could damage the core or the chassis. 1. Ensure that the red lever on the chassis is pulled down and vertical, ready to receive the core.
  • Page 8 1. Set the power rocker switch on the Playdium’s power strip to ON. 2. As Playdium powers up, check that the fans in the Airflow Assembly spin up and are pushing air out the top of the jukebox, using your hand to feel for the air flow. After a moment, the fans will slow down or turn off, adapting to the airflow needs of the jukebox’s internal components.
  • Page 9 Contacts page on the TouchTunes Dashboard at https://operator.touchtunes.com • calling TouchTunes 24/7 Service Hotline at 847-353-1954 To help us assist you more effectively with problem reports, this information may be required when contacting TouchTunes Support: • Jukebox model, such as Playdium, Virtuo, Allegro MX-1, Ovation •...
