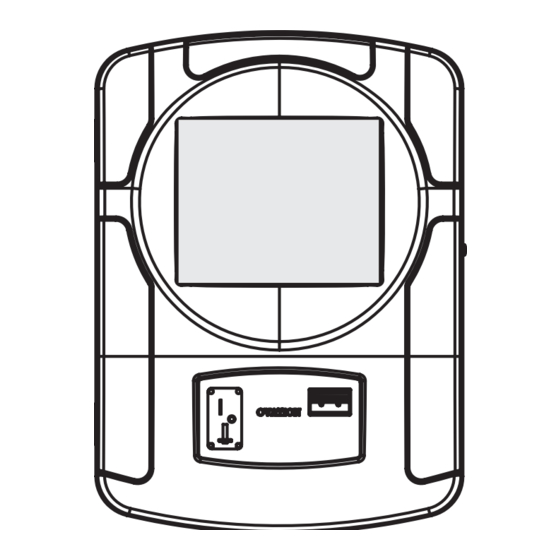

Ovation jukebox

Advertisement

September 2006
900169-001

About this guide

This guide explains how to install and activate the Ovation Digital
Jukebox. Ovation is different from conventional jukeboxes, both in the
way it operates and in the way it is installed. It is therefore strongly
recommended that you review this guide thoroughly before you begin.
For detailed information on planning your installation, refer to the Ovation
Operator's Manual on the TouchTunes web site.
Service and support
For service and support issues, call the TouchTunes 24/7 Service Hotline
at 888-711-5853. You must provide the Jukebox ID number to obtain
service. This number can be found underneath the front of Ovation or
inside to the right of the fan.
Components
Ovation ships in several boxes. If any component appears to be damaged,
do not attempt to use or install the system. Notify TouchTunes or your
local distributor immediately.
Verify that you have received the following components:
Ovation
1
Ovation Digital Jukebox with power line installed
1
Ovation wall bracket
1
Parts kit containing:
1 Remote control (part #: 700031-001)
1 Remote control mounting bracket (part #: 400188-001)
2 AAA batteries
2 Keys (ilco #549)
1 Female RCA to DIN Adapter (part #: 300141-012)
1 Male RCA to DIN Adapter (part #: 300143-012)
2 Wall bracket screws
3 Terminal connectors (four-position Euroblock - part #:
1000000-001). Two for connecting external speakers
and one for connecting an optional microphone.
Hard drive (shipped separately)
Dimensions and weight
Height
Crated
41"
Uncrated
37 1/4"
Ovation Jukebox
Quick Start Guide
Width
Depth
Weight
32"
18"
142 lbs.
27 1/4"
11 1/4"
125 lbs.
Important safety information
• Read all safety instructions before installing this product.
• Keep all instructions for future reference.
• Heed all warnings.
• Follow all instructions.
CAUTION: Ovation components are heavy and represent a
serious safety hazard if their mounting system should fail.
Therefore, installation should only be performed by an
experienced installer or licensed contractor that is familiar with
standard rigging, mounting, and hanging practices, as
recognized by a licensed engineer or governmental agency in
your area.
CAUTION: Ovation mounting components are ETL listed and
CSA approved only when used as specified in this guide. Any
other use or modification of the mounting components is
expressly prohibited, as this may present an unacceptable risk
of structural failure.
CAUTION: Do not install Ovation near any heat sources, such
as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
CAUTION: Do not defeat the safety purposes of the grounding-
type plug. A grounding-type plug has two blades and a third
grounding prong. The wider blade or the third grounding
prong are provided for your safety. If the provided plug does
not fit in your outlet, consult an electrician for replacement of
the obsolete outlet.
CAUTION: See product enclosure for safety related markings
and refer to the Ovation Operator's Manual on the TouchTunes
web site for additional safety information.
CAUTION: Dispose of used batteries in accordance with the
regulations in your area. Do not incinerate.
CAUTION: The lights inside Ovation contain mercury. Disposal
of this material may be regulated in your area due to
environmental considerations. For disposal or recycling
information, please contact your local authorities or the
Electronic Industries Alliance at www.eiae.org.
CAUTION: Unplug this apparatus when unused for long
periods of time.
1 of 12
