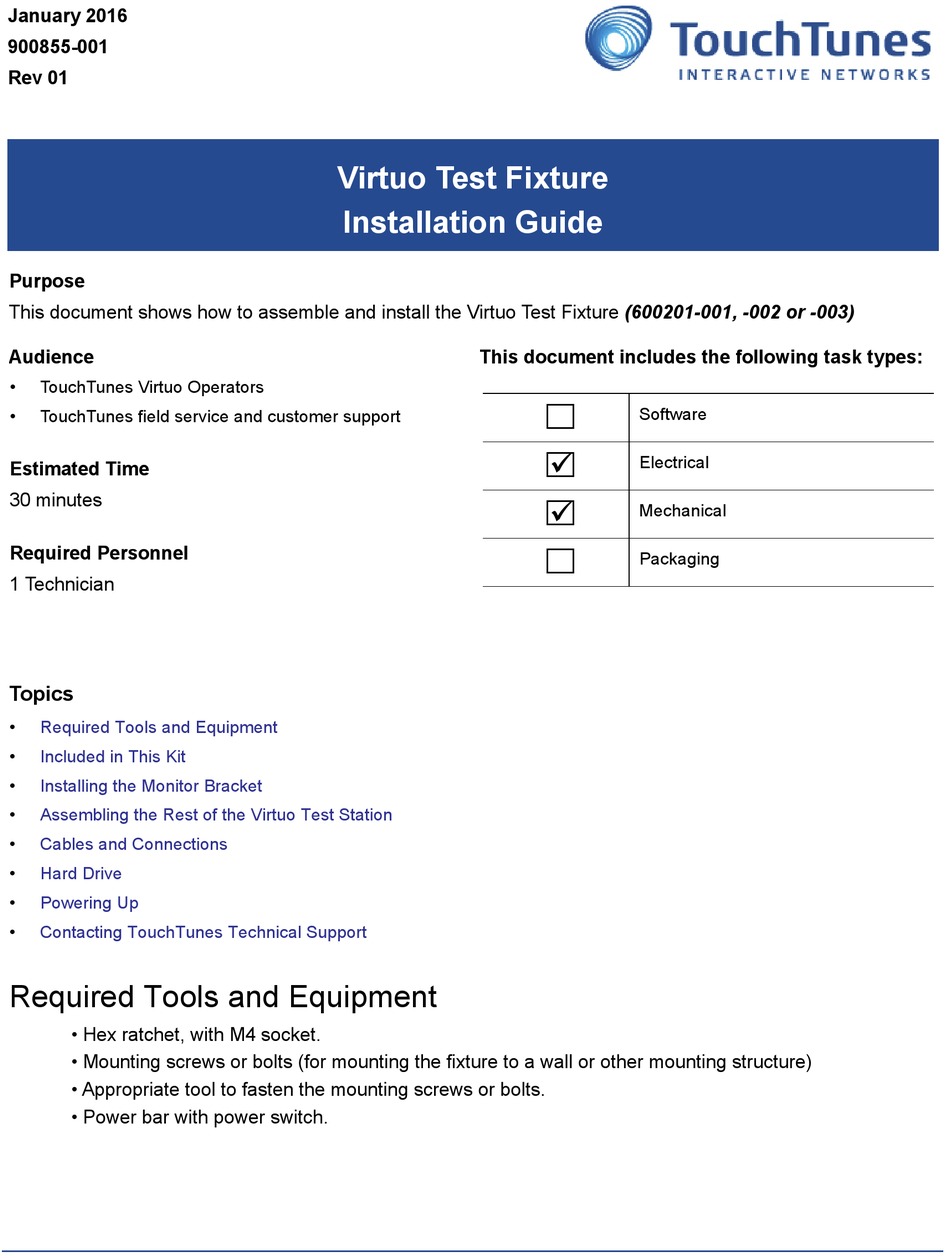

January 2016
900855-001
Rev 01
Purpose
This document shows how to assemble and install the Virtuo Test Fixture (600201-001, -002 or -003)
Audience
•
TouchTunes Virtuo Operators
•
TouchTunes field service and customer support
Estimated Time
30 minutes
Required Personnel
1 Technician
Topics
•
Required Tools and Equipment
•
Included in This Kit
•
Installing the Monitor Bracket
•
Assembling the Rest of the Virtuo Test Station
•
Cables and Connections
•
Hard Drive
•
Powering Up
•
Contacting TouchTunes Technical Support
Required Tools and Equipment
• Hex ratchet, with M4 socket.
• Mounting screws or bolts (for mounting the fixture to a wall or other mounting structure)
• Appropriate tool to fasten the mounting screws or bolts.
• Power bar with power switch.
Virtuo Test Fixture
Installation Guide
This document includes the following task types:
Software
Electrical
Mechanical
Packaging
Advertisement
Table of Contents
Related Manuals for TouchTunes Virtuo Test Fixture
Summary of Contents for TouchTunes Virtuo Test Fixture
- Page 1 January 2016 900855-001 Rev 01 Virtuo Test Fixture Installation Guide Purpose This document shows how to assemble and install the Virtuo Test Fixture (600201-001, -002 or -003) Audience This document includes the following task types: • TouchTunes Virtuo Operators Software •...
-
Page 2: Included In This Kit
Before You Start Find a suitable area in your warehouse or workshop where both halves of the Virtuo test fixture can be installed close to one another. Ensure that the wall or other structure onto which you will install the fixture can support the... - Page 3 Virtuo Test Fixture Installation Guide Installing the Monitor Bracket Installing the Monitor Bracket 1. Mount the bracket with the monitor to your wall or mounting structure using four (4) appropriate mounting screws (not provided) in the indicated mounting holes. 2. The Virtuo Touchscreen fastens to the monitor bracket using seven (7) locking hex nuts (provided): Note: An alignment guide is included on the bottom part of the monitor bracket.
- Page 4 Virtuo Test Fixture Installation Guide Assembling the Rest of the Virtuo Test Station 3. Connect and fasten the Video, Serial and Power cables to the back of the Virtuo monitor: Assembling the Rest of the Virtuo Test Station 1. Mount the main bracket to your wall or mounting structure using four (4) appropriate mounting screws (not...
- Page 5 Virtuo Test Fixture Installation Guide Assembling the Rest of the Virtuo Test Station 2. Fasten the power supply, computer, amplifier, I/O board and ID-chip to the main bracket using eighteen (18) locking hex nuts (provided with your kit):...
-
Page 6: Cables And Connections
Virtuo Test Fixture Installation Guide Cables and Connections Cables and Connections 1. Connect the cables coming from the touchscreen to the appropriate connectors on the computer and PSU, then connect all the other cables shown in the diagram below: NOT CONNECTED TO PWR BAR Note: Refer to the full Virtuo connection diagram (also provided with your kit) if needed. - Page 7 You should now have a functional Virtuo Test Station. Contacting TouchTunes Technical Support If you need help with or have questions about this document, contact TouchTunes by: • using the e-mail links on the Contacts page on the TouchTunes Dashboard at https://operator.touchtunes.com...
