April 2012
900631-001
Rev 00

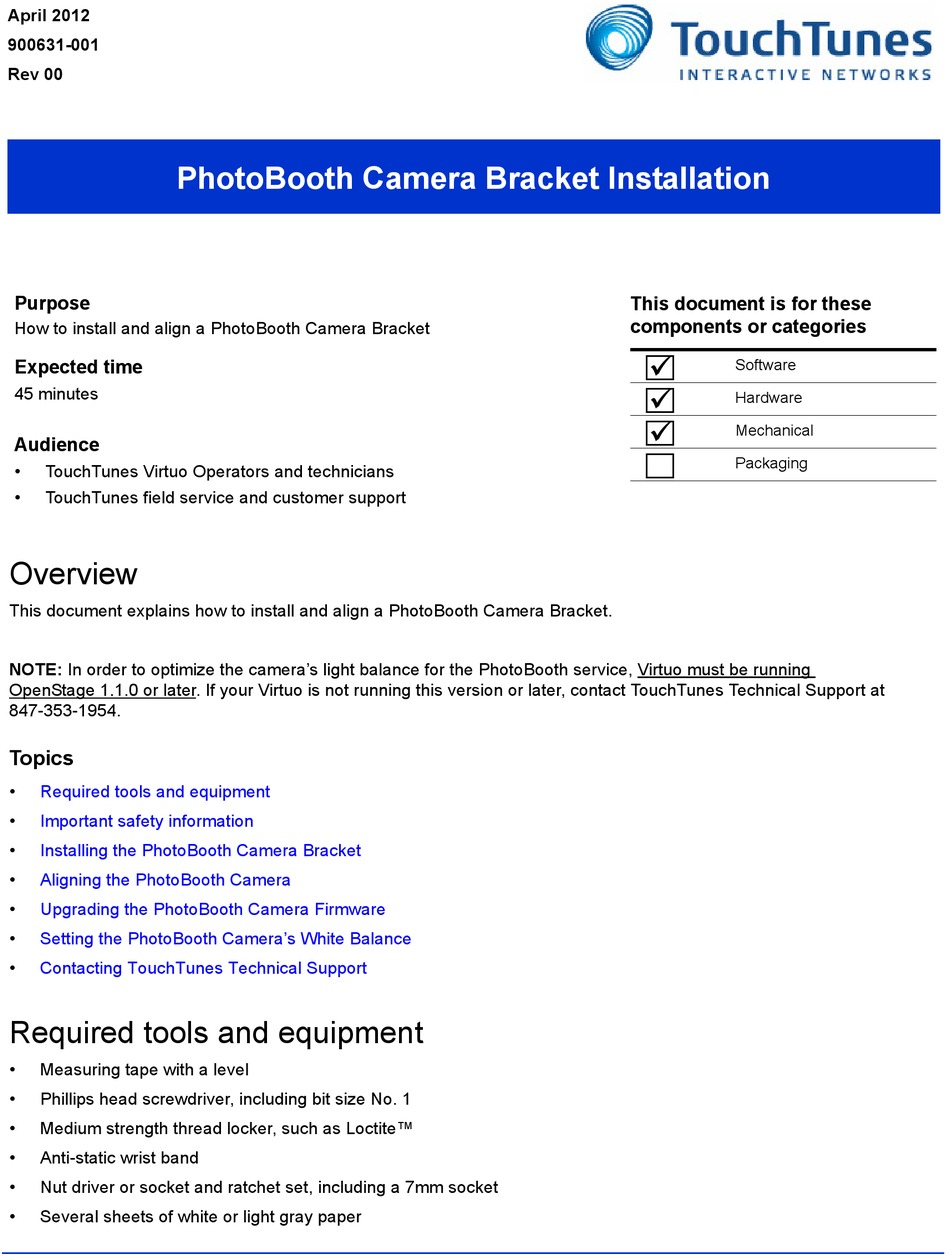

PhotoBooth Camera Bracket Installation
Purpose
How to install and align a PhotoBooth Camera Bracket
Expected time
45 minutes
Audience
•
TouchTunes Virtuo Operators and technicians
•
TouchTunes field service and customer support
Overview
This document explains how to install and align a PhotoBooth Camera Bracket.
NOTE: In order to optimize the camera's light balance for the PhotoBooth service, Virtuo must be running
OpenStage 1.1.0 or later. If your Virtuo is not running this version or later, contact TouchTunes Technical Support at
847-353-1954.
Topics
•
Required tools and equipment
•
Important safety information
•
Installing the PhotoBooth Camera Bracket
•
Aligning the PhotoBooth Camera
•
Upgrading the PhotoBooth Camera Firmware
•
Setting the PhotoBooth Camera's White Balance
•
Contacting TouchTunes Technical Support
Required tools and equipment
•
Measuring tape with a level
•
Phillips head screwdriver, including bit size No. 1
•
Medium strength thread locker, such as Loctite™
•
Anti-static wrist band
•
Nut driver or socket and ratchet set, including a 7mm socket
•
Several sheets of white or light gray paper
This document is for these
components or categories
Software
Hardware
Mechanical
Packaging
Advertisement
Related Manuals for TouchTunes PhotoBooth
Summary of Contents for TouchTunes PhotoBooth
- Page 1 This document explains how to install and align a PhotoBooth Camera Bracket. NOTE: In order to optimize the camera’s light balance for the PhotoBooth service, Virtuo must be running OpenStage 1.1.0 or later. If your Virtuo is not running this version or later, contact TouchTunes Technical Support at 847-353-1954.
-
Page 2: Important Safety Information
Leave the Virtuo plugged into an AC outlet with the power switch turned OFF. This grounds the metal chassis. 2. Note the small aperture on the front of the Virtuo where the PhotoBooth Camera is installed and open the Virtuo door. - Page 3 PhotoBooth Camera Bracket Installation and Alignment Installing the PhotoBooth Camera Bracket 3. Unscrew the two small bolts used to keep the existing bracket threaded onto the back of the Virtuo door. You will reuse these nuts momentarily. 4. Remove the small 20mm central screw and discard it.
- Page 4 11. Mount the camera assembly to the rear panel of the monitor, ensuring proper orientation (as in the diagram below, the small PCB cable should be to the right of the PhotoBooth camera). 12. Use the 4-inch tie wrap in your kit to replace the strain relief cable you removed in step 5.
- Page 5 Installing the PhotoBooth Camera Bracket 13. Fasten the PhotoBooth camera assembly to the rear panel of the monitor with the two nuts removed in step 3, applying 10 lbf-in of torque. As you tighten the bolts, ensure that the top of the camera’s bracket is flush with the top of the rear panel.
- Page 6 PhotoBooth Camera Bracket Installation and Alignment Installing the PhotoBooth Camera Bracket 15. Use the three 8-inch tie wraps supplied with the PhotoBooth Camera Kit to fasten the USB cable to the existing bundle of wires. 16. Restore AC power to the Virtuo and boot it up.
- Page 7 Aligning the PhotoBooth Camera 1. Before you proceed with the PhotoBooth camera calibration, it is critical that the Virtuo be mounted at the correct height (a Virtuo mounted on a Virtuo Floor Stand will automatically be mounted at the correct height).
- Page 8 PhotoBooth Camera Bracket Installation and Alignment Aligning the PhotoBooth Camera 2. To properly align the PhotoBooth camera, you must use the Video Capture Test utility on the Operator menu. On the I/O board, press the Manager button to activate the Operator Menu.
- Page 9 NOTE: If any corners of the onscreen image are obscured by “tunnel vision”, as in the following example, remove the washers you mounted on the rear of the Virtuo door prior to mounting the bracket in Installing the PhotoBooth Camera Bracket- Step 10.
- Page 10 PhotoBooth Camera Bracket Installation and Alignment Aligning the PhotoBooth Camera 6. Turn the set screw (M3x16 Phillips Pan) clockwise on the rear of the bracket until you see the 47 inch mark from the floor (plus or minus half an inch) at the bottom of the preview area.
- Page 11 PhotoBooth Camera Bracket Installation and Alignment Aligning the PhotoBooth Camera Note: The camera lens and the aperture on the exterior of the Virtuo door should align more and more as you adjust the camera screw using the method above. 7. When you are satisfied with the settings, apply a small amount of medium strength thread locker, such as Loctite™, to...
- Page 12 Upgrading the PhotoBooth Camera Firmware With the PhotoBooth camera installed and aligned, it is important to ensure it is equipped with the latest firmware update. - If a PhotoBooth camera firmware is available for your camera, the UPGRADE FIRMWARE button will be available.
- Page 13 Setting the PhotoBooth Camera’s White Balance NOTE: In order to optimize the camera’s light balance for the PhotoBooth service, Virtuo must be running OpenStage 1.1.0 or later. If your Virtuo is not running this version or later, contact TouchTunes Technical Support at 847-353-1954.
- Page 14 PhotoBooth Camera Bracket Installation and Alignment Setting the PhotoBooth Camera’s White Balance 3. Hold up a stack of white or light gray paper and position it at a 45 degree angle backwards (that is, tilting the top towards yourself). Do not use a single sheet of white paper as it may be translucent.
- Page 15 Contacts page on the TouchTunes Dashboard at https://operator.touchtunes.com • calling TouchTunes 24/7 Service Hotline at 847-353-1954 To help us assist you more effectively with problem reports, this information may be required when contacting TouchTunes Support: • Jukebox model, such as Virtuo, Allegro MX-1, Ovation, Maestro II •...
