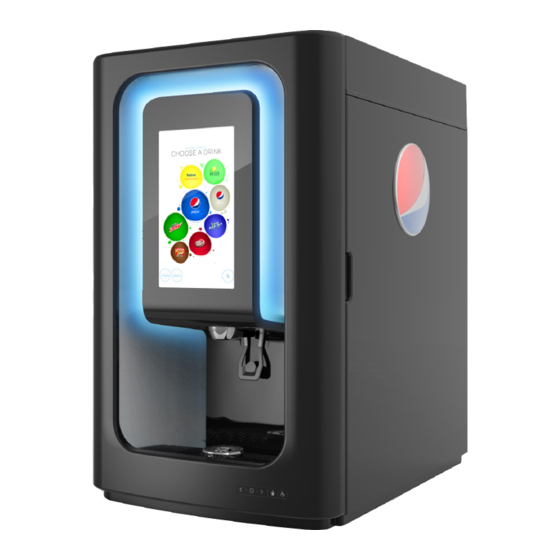

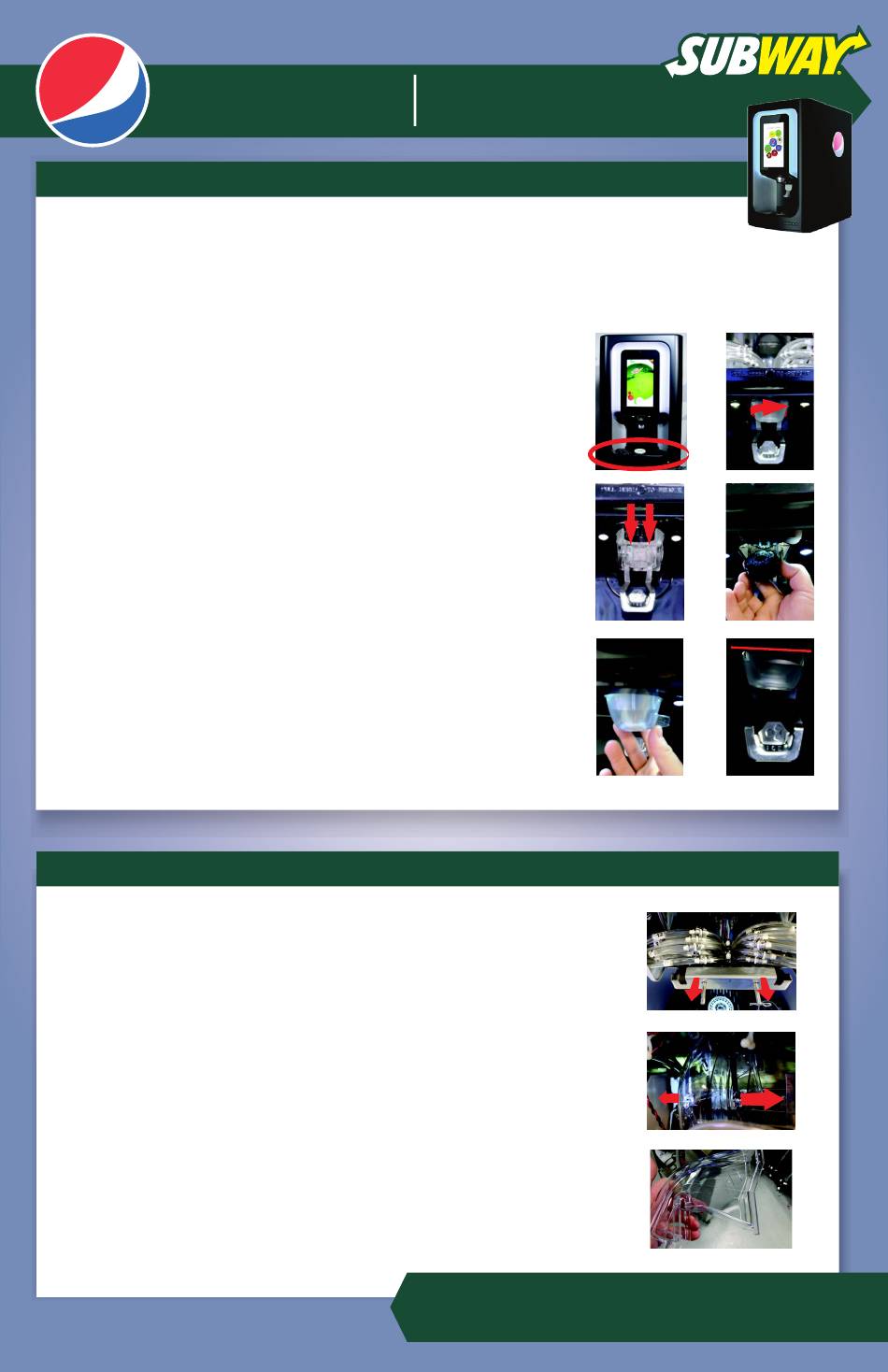

Cornelius SUBWAY PEPSI SPIRE 3.0 Cleaning And Maintenance

PEPSI SPIRE
DAILY CLEANING
Equipment needed for the cleaning process:
• Bucket/Pitcher
The recommended cleaning solution/sanitizer for the nozzle, diffuser and drain is:
- Sanitizer that provides 100 PPM of available chlorine when mixed with warm water from 110 - 120ºF (45 - 50ºC)
Clean Screen
1. Clean the Spire screen with screen
cleaner and a soft towel.
Clean Spire Unit
2. Clean the exterior of Spire unit with a damp non-abrasive cloth or towel.
3. Remove the cup holder assembly and clean with warm soapy water, rinse,
sanitize, and allow to air dry.
Clean Nozzle and Diffuser
4. Remove nozzle by rotating the back to the right and turn clockwise towards you.
5. Remove the diffuser with seal by pulling straight down.
6. Soak both in a sanatizing solution for 2 minutes, rinse and allow to air dry.
Clean Drain
7. Pour warm soapy water and any remaining sanitizing solution down the Spire
drain to keep the drain clean and functional.
Reinstall Nozzle and Diffuser
8. With white silicone seal facing up, rotate the diffuser until the notches align
to the post. Push straight up.
9. Point the nozzle thumb tab to the right. Gently push up while rotating the tab
to the back and turn counter clockwise.
10. After installation validate the nozzle is straight. If slightly crooked or experience
cross-contamination (determined if water has dark syrup in it) while pouring, reinstall.
MONTHLY CLEANING
See cleaning supplies and cleaning solution above.
Preparation
1. Open door and remove nozzle and diffuser.
2. Slide the nozzle plate assembly forward.
Remove and Clean Chute
3. Remove the ice chute cover by releasing the connection tabs. Pry the right side to
release the right side connection tab.
4. While holding the right side so the right side does not reconnect, pry the left side out
to release the left side connection tab. Use care not to pull any wire harnesses while
removing the front half of the chute.
5. Clean the removable and non-removable portion of the chute with brush and sanitizer,
rinse and allow to air dry.
Reassemble the Ice Chute
6. Place chute in position.
7. Push the chute cover until the connection tabs snap together.
8. Slide nozzle plate assembly back.
9. Reinstall diffuser and nozzle.
©2016 Subway IP Inc. SUBWAY® is a registered trademark of Subway IP Inc.
3.0 Cleaning and Maintenance
™
• Soft cloth or paper towels
!
See reverse side
"CLEAN SCREEN" to disable
the unit from pouring while wiping.
For service and repair call Pepsi Equipment Service:
Canada: 1-800-387-6683
• Safety goggles and disposable gloves
3 4
5 5
8 10
2
3 & 4
5
