SEA Compact 400 Fitting And Connection Instructions

Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888
The Compact 400/800 consists of a hydraulic pump and a
hydraulic jack, both of which coupled in a supporting box
treated with cataphoresis.
The pump unit casing, which is used as an oil tank, contains the
electric motor, fluid pump, distributor and hydraulic oil.
It is also provided with an adjustable slowing-down device in
the two stop phases of the leaf (versions with slow-down only).
The wheeling unit is composed by a double piston connected to
a rack which engages with the pinion of the leaf dragging shaft.
Gates up to 2 meters long can be securely locked using the
operators internal hydraulic locking system, thus ensuring
perfect keeping in closing and in opening.
For gate in excess of stated value: A hydraulic non locking
operator should be used in conjunction with a separate electrical
locking device to ensure keeping in closing.
On the operators with hydraulic slow down it is present only
during the last 15° of rotation.
The system comes with a release which allows the manual
opening of the leaves in case of power failure.

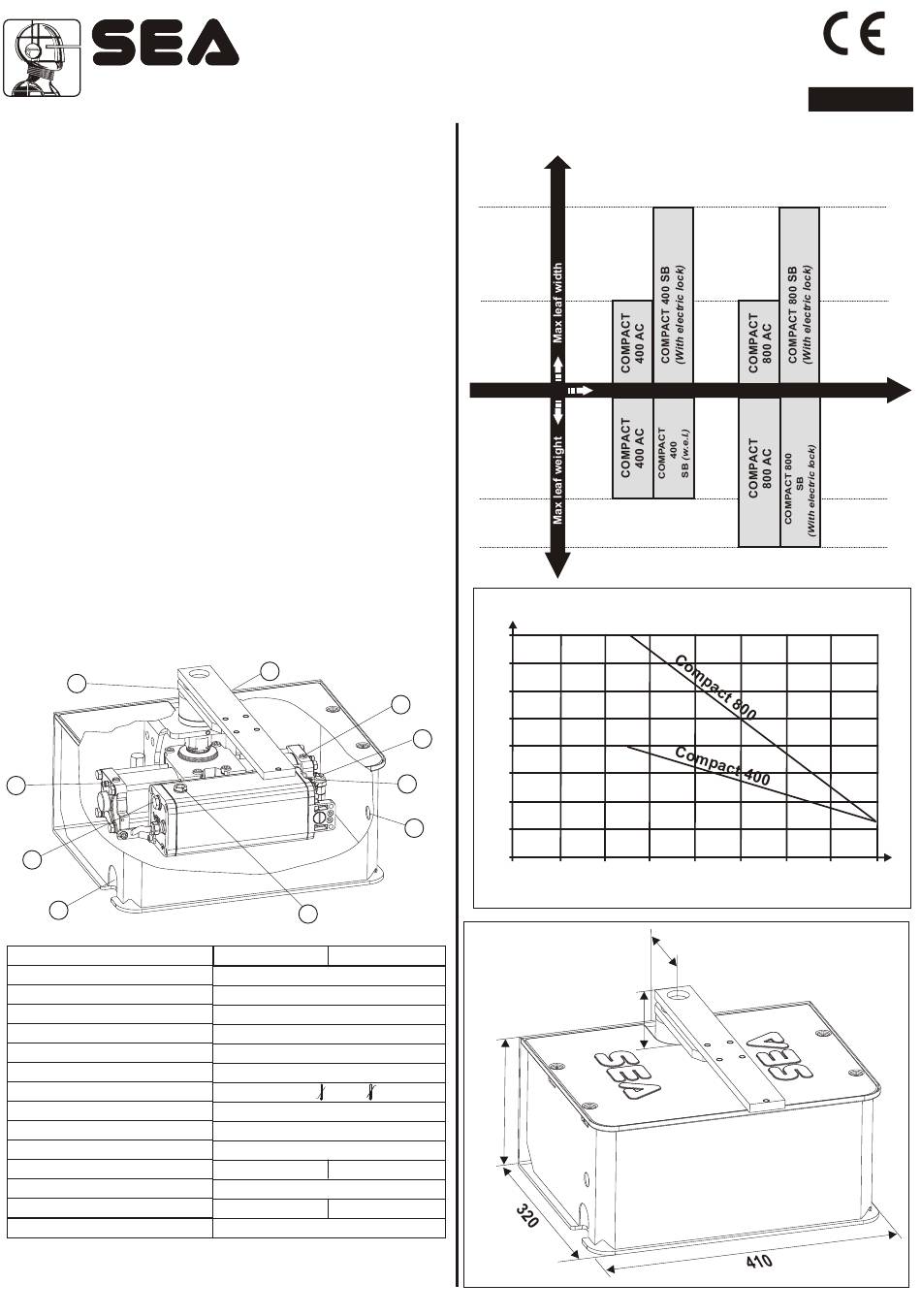

MAIN PARTS NOMENCLATURE
1 Braking regulation screw
(where provided)
2 Emergency release (authorized
staff only)
3 By-pass regulation
4 Exit hole for electric cables
10 10
8 8 8
7 7 7
6 6 6
TECHNICAL DATA
Power supply
Motor Power
Absorbed current
Motor rotation speed
Cycles hour (with a 20°C temp.)
Max. Working pressure
Operating temperature
Thermal protection intervention
Max torque
Starting capacitor
Weight
Protection class
Maximum weight of the gate
Braking regulation
* In case of operator with hydraulic slow down
10 67410850
®
COMPACT 400
COMPACT 800
FITTING AND CONNECTION INSTRUCTIONS
5 Filling oil Cap
6 Water draining hole
7 Oil level indicator
8 Draining screw
9 Greaser
10 Crank
9 9 9
1 1 1
Fig. 1
5 5 5
Compact 400 Compact 800
230 V ~ (±5%) 50/60 Hz
220 W
1,1 A
1400 rpm
45
50 bar
-20°C +55°C
130°C
56 da N
12,5uF
13 kg 13,8 kg
IP 67
400 kg 800 kg
On control unit or on operator*
(with and without slowdown)
(with and without slowdown)
GRAPHIC FOR THE USE OF COMPACT
4 meters
2 meters
400 kg
800 kg
Weight kg
800
700
600
500
2 2 2
400
300
3 3 3
200
4 4 4 100
0
0 0,5
DIMENSIONS (mm)
1 8 8
Fig. 2
REV 04 - 01/2010
400 - 800 OPERATORS
Underground hydraulic operators
1 1,5 2 2,5
55
8
6
ENGLISH
GRAPHIC (A)
4
3 3,5
Leaflength M
