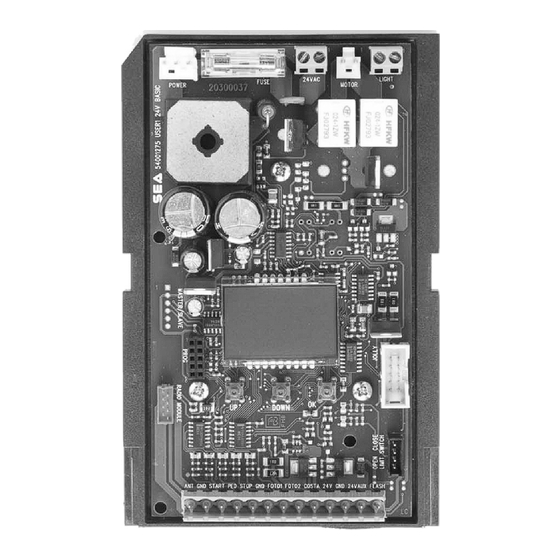

- Page 1 International registered trademark n. 2.777.971 USER 1 - 24V DG ELECTRONIC CONTROL UNIT FOR SLIDING GATES AND BARRIERS 67411535...
- Page 2 USER 1 - 24V DG International registered trademark n. 2.777.971 Details General An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.
- Page 3 USER 1 - 24V DG International registered trademark n. 2.777.971 g) The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start. h) A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.
- Page 4 USER 1 - 24V DG International registered trademark n. 2.777.971 CONNECTIONS WARNING: The control unit is designed with the automatic detection of not used N.C. inputs (photocells, Stop and Limit switch) except the SAFETY EDGE input. POWER (CN8) MOTOR (CN6)
-
Page 5: Table Of Contents
USER 1 - 24V DG International registered trademark n. 2.777.971 INDEX DESCRIPTION OF COMPONENTS ....................6 GENERAL INFORMATION ......................7 QUICK START ..........................8 SELFLEARNING WORKING TIME ....................9 SELECTION OF SETTINGS .......................10 RADIO TRANSMITTER LEARNING ...................15 TRANSMITTERS CANCELLATION ....................15 WORKING LOGICS ........................16 PASSWORD ENTERING MANAGEMENT .................16 JOLLY PROGRAMMER PARAMETER SETTING ..............17... -
Page 6: Description Of Components
USER 1 - 24V DG International registered trademark n. 2.777.971 DESCRIPTION OF THE COMPONENTS DISPLAY DOWN 1 2 3 4 5 6 7 8 9 10 11 12 13 CN1 = Input/Output connector OK = Programming button CN2 = Limit switch connector... -
Page 7: General Information
GENERAL CHARACTERISTICS The USER 1 24V DG control unit has been designed to manage one low voltage motor with or without electronic limit switches. It is of very small size and the big news is the LCD display on board that let you view and set in a simple and complete way all functions of the control unit. -
Page 8: Quick Start
USER 1 - 24V DG International registered trademark n. 2.777.971 QUICK START PROGRAMMING BUTTONS DOWN Skip this step if you do not want to program a transmitter OK to exit Menu or press the Press the MENU MENU MENU MENU... -
Page 9: Selflearning Working Time
USER 1 - 24V DG International registered trademark n. 2.777.971 WORKING TIMES SELF LEARNING Fig.1 NOTE: When using a B200 motor or magnetic limit switches in general; make sure that the control unit is set on magnetic limit switch before learning;... -
Page 10: Selection Of Settings
USER 1 - 24V DG International registered trademark n. 2.777.971 SELECTION OF THE SETTINGS The settings of the control unit are made through the UP, DOWN and OK buttons. The UP and DOWN buttons to scroll through the MENUS and SUBMENUS. By pressing OK you enter from MENU into SUBMENU and confirm the choice. - Page 11 USER 1 - 24V DG International registered trademark n. 2.777.971 SELECTION OF THE SETTINGS MENU functions table USER1 24V DG Description Description Set value MENU Default Transmitter Start strt strt stpd Pedestrian Start stpd . E st Exp. output Stop...
- Page 12 PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU DOWN SPECIAL MENU FUNCTIONS TABLE USER 1 24V DG (To enter the Special Menu keep pressed UP and DOWN at the same time for 5 seconds.
- Page 13 PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU DOWN SPECIAL MENU FUNCTIONS TABLE USER 1 24V DG (To enter the Special Menu keep pressed UP and DOWN at the same time for 5 seconds.
- Page 14 PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU DOWN SPECIAL MENU FUNCTIONS TABLE USER 1 24V DG (To enter the Special Menu keep pressed UP and DOWN at the same time for 5 seconds.
-
Page 15: Radio Transmitter Learning
USER 1 - 24V DG International registered trademark n. 2.777.971 RADIO TRANSMITTER SELF LEARNING WITH RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit. (The control unit automatically recognizes if the receiver is a RF, RF Roll or RF Roll Plus module). -
Page 16: Working Logics
If the password has been forgotten, the only way to unlock the control unit is to contact the SEA technical assistance, which will assess whether to provide the procedure to unlock the control unit or not. -
Page 17: Jolly Programmer Parameter Setting
USER 1 - 24V DG International registered trademark n. 2.777.971 PROGRAMMER JOLLY PARAMETERS ADJUSTMENT The JOLLY programmer allows to keep under control and to change all parameters of the control unit without need to use the buttons of the control unit. Compared to the on-board display, the programmer allows to view the programming instructions in the user's language and in a non-encrypted way. - Page 18 USER 1 - 24V DG International registered trademark n. 2.777.971 PROGRAMMER JOLLY PARAMETERS ADJUSTMENT NOTE: For the respect of the valid European ruels on the safety of the electric gates, it is recommended to not adjust the parameters torque on the value 100%.
-
Page 19: Start, Stop, Pedestrian Start, Antenna, Photocell Connections
USER 1 - 24V DG International registered trademark n. 2.777.971 START - STOP - PEDESTRIAN START - ANTENNA - PHOTOCELL Photocell 1 and Photocell 2 Connections Note: If the photocells are not connected, put a jumper between the clamps (6,7,8). -
Page 20: Limit Switch, Sensor Barriers
The first movement in selflearning must always be executed in closing. ATTENTION: When using SEA magnetic limit switches, make sure that the motor is set on s AG. -
Page 21: Power Supply, Motor Connection, Edge, Buzzer And External Receiver
USER 1 - 24V DG International registered trademark n. 2.777.971 MOTOR POWER SUPPLY TRANSFORMER 115V~ 230V~ 3,6 A blow fuse on 230V ~ power supply 6,3A blow fuse on 115V ~ power supply POWER (CN8) WARNING: K e e p t h e p o w e r... -
Page 22: Master-Slave Function
USER 1 - 24V DG International registered trademark n. 2.777.971 MASTER-SLAVE FUNCTION To set an installation with two motors in MASTER-SLAVE function it is recommended to do as follows: 1) Set the two motors as if they were two independent installations, make sure that the individual motor works properly and that the limit switches (when present) are read properly. -
Page 23: Trouble Shooting
PRICES: Prices are based on the Price List in force. Discounts and quotation from Sales Rep. and other selling branches must be approved by SEA. Prices are F.O.B SEA Warehouse in Miami and do not include shipments costs. SEA reserves the right to modify the price list at any time and provide notice to its sales network.
