ITALIANO
ENGLISH
FRANÇAIS
International registered trademark n. 804888

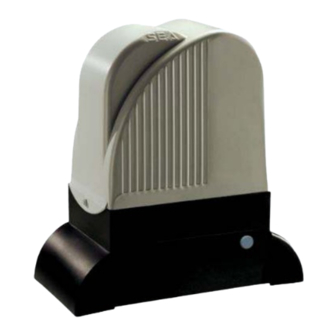

LEPUS
MOTORIDUTTORE PER CANCELLI SCORREVOLI
MOTOR REDUCER FOR SLIDING GATES
MOTEUR POUR PORTAILS COULISSANTS
SEA
S.p.A.
Zona Industriale Sant'Atto - 64100 - Teramo - ITALY
Telephone: + 39 0 861 588341 - Fax: + 39 0 861 588344
www.seateam.com
67410014
REV. 08 - 02/2023
Advertisement
Table of Contents
Related Manuals for SEA LEPUS 600
Summary of Contents for SEA LEPUS 600
- Page 1 ITALIANO ENGLISH FRANÇAIS International registered trademark n. 804888 LEPUS MOTORIDUTTORE PER CANCELLI SCORREVOLI MOTOR REDUCER FOR SLIDING GATES MOTEUR POUR PORTAILS COULISSANTS S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Telephone: + 39 0 861 588341 - Fax: + 39 0 861 588344 www.seateam.com 67410014 REV.
-
Page 2: General Features
ENGLISH International registered trademark n. 804888 GENERAL FEATURES LEPUS is an oil-bathed motor-reducer designed for the automation of sliding gates. It is to allow a perfect and safe closing of the gate avoiding the installation of the electric lock. IRREVERSIBLE It is equipped with a - placed on the front part of the external box - allows the manual RELEASE SYSTEM... -
Page 3: Technical Data
ENGLISH International registered trademark n. 804888 LEPUS 2000 TECHNICAL DATA LEPUS 600 LEPUS 1600 LEPUS 110V TRIFASE 230V (±5%) 50/60 Hz 115V (±5%) 50/60 Hz OWER UPPLY 450 W 330 W 650 W 330 W OTOR POWER 35 µF 25 µF 80 µF... - Page 4 ENGLISH International registered trademark n. 804888 1 - GATE ARRANGEMENT Before the installation, check that all gate parts (fixed and mobile) have a strong and non-deformable structure; also make the following checks: a) The gate must be rigid and compact; b) The lower gate slideway must be perfectly straight, horizontal and without any obstacles which could obstruct the gate sliding;...
-
Page 5: Installation Of The Operator
ENGLISH International registered trademark n. 804888 4 - INSTALLATION OF THE OPERATOR 4.1. Fix the gearmotor to the foundation plate by the use of the supplied screws - Fig. 7, then adjust its lateral position and height - Fig. 8 - to comply with the dimensions mentioned in Fig. 5 4.2. - Page 6 ENGLISH International registered trademark n. 804888 6 - LIMIT SWITCH INSTALLATION ON THE GEAR RACK 6.1. - Fully open the gate : place the plate - Fig. 14 - on the rack according to the desired gate stop position; fix the plate on the rack using the screws.
- Page 7 ENGLISH International registered trademark n. 804888 7 - INSTALLATION OF THE CHAIN SYSTEM 7.1. Secure two sturdy brackets at the two extremities of the gate for attaching the chain - Fig. 20 7.2. Install a chain tensioners on each bracket to adjust the chain tension - Fig. 20 45 mm - Fig.
-
Page 8: Clutch Adjustment
ENGLISH International registered trademark n. 804888 8 - GROUNDING 8 . 1 . B e f o r e c o n n e c t i n g t h e operator to the power supply, provide for its earthing, by the use of the special earthing screw as shown in Fig. -
Page 9: Periodic Maintenance
ENGLISH International registered trademark n. 804888 11 - EXTERNAL RELEASE SYSTEM - OPTIONAL 11.1. An external release system SAFETY wired to a safety box can be connected to the L operator, EPUS as shown in Fig. 33 Fig. 33 PART FOR BOTH INSTALLER AND END-USER ALL THE UNLOCKING AND LOCKING OPERATIONS AND ALL PERIODIC MAINTENANCE OPERATIONS MUST BE CARRIED OUT IN ABSENCE OF POWER SUPPLY 12 - RELEASE SYSTEM... -
Page 10: General Notice
14. Transit through the leaves is allowed only when the gate is fully open. 15. The User must not attempt to repair or to take direct action on the system and must solely contact qualified SEA personnel or SEA service centers. The User can apply only the manual function of emergency. -
Page 11: Declaration Of Conformity
La SEA S.p.A. dichiara sotto la propria responsabilità e, se applicabile, del suo rappresentante autorizzato che, con l’installazione degli adeguati dispositivi di sicurezza e di filtraggio disturbi, i prodotti:... - Page 12 International registered trademark n. 804888 SEA S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Tel. +39 0 861 588341 r.a. Fax +39 0 861 588344 www.seateam.com...
