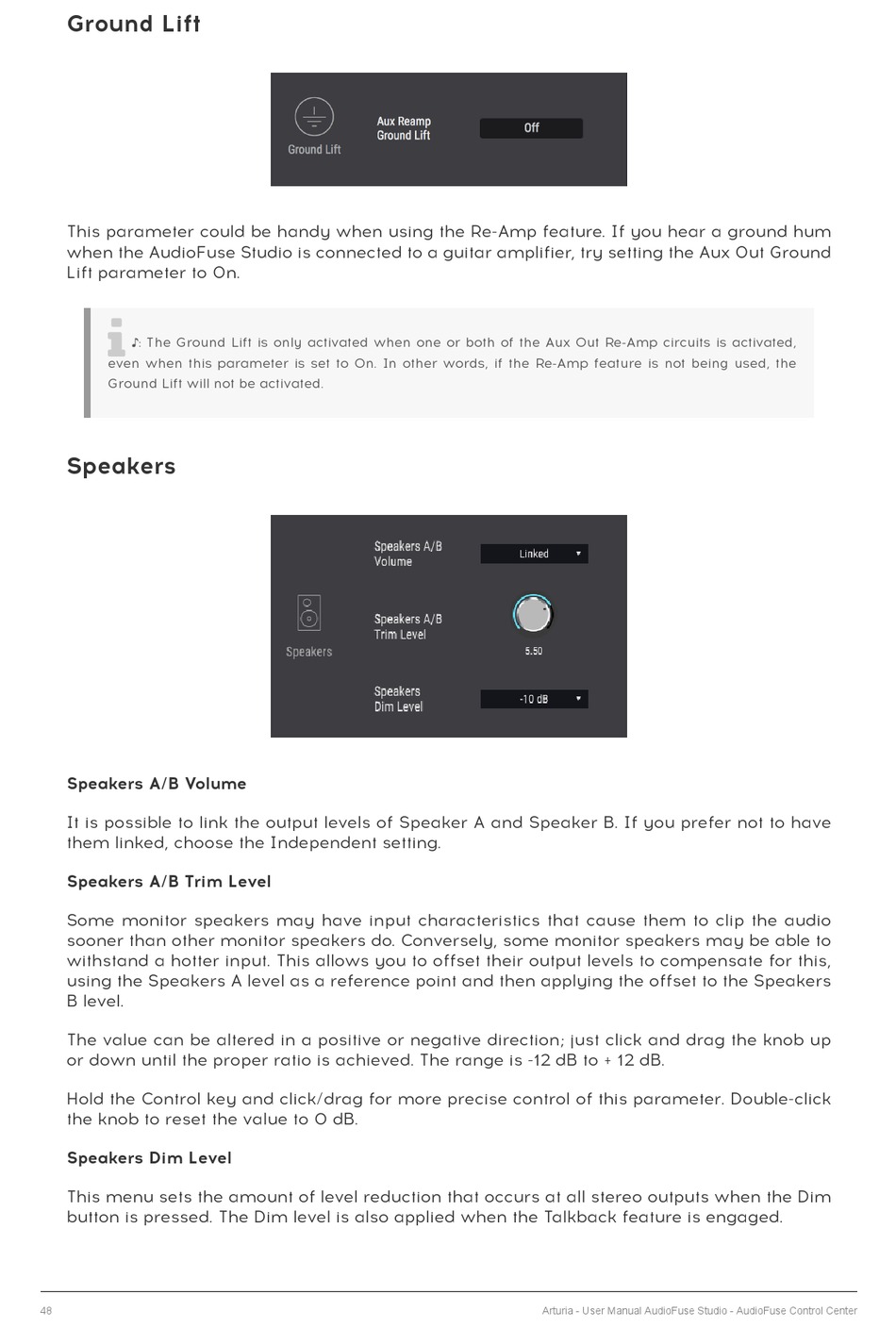

Arturia AUDIOFUSE STUDIO User Manual page 54

Ground Lift
This parameter could be handy when using the Re-Amp feature. If you hear a ground hum
when the AudioFuse Studio is connected to a guitar amplifier, try setting the Aux Out Ground
Lift parameter to On.

♪: The Ground Lift is only activated when one or both of the Aux Out Re-Amp circuits is activated,
even when this parameter is set to On. In other words, if the Re-Amp feature is not being used, the
Ground Lift will not be activated.
Speakers
Speakers A/B Volume
It is possible to link the output levels of Speaker A and Speaker B. If you prefer not to have
them linked, choose the Independent setting.
Speakers A/B Trim Level
Some monitor speakers may have input characteristics that cause them to clip the audio
sooner than other monitor speakers do. Conversely, some monitor speakers may be able to
withstand a hotter input. This allows you to offset their output levels to compensate for this,
using the Speakers A level as a reference point and then applying the offset to the Speakers
B level.
The value can be altered in a positive or negative direction; just click and drag the knob up
or down until the proper ratio is achieved. The range is -12 dB to + 12 dB.
Hold the Control key and click/drag for more precise control of this parameter. Double-click
the knob to reset the value to 0 dB.
Speakers Dim Level
This menu sets the amount of level reduction that occurs at all stereo outputs when the Dim
button is pressed. The Dim level is also applied when the Talkback feature is engaged.
