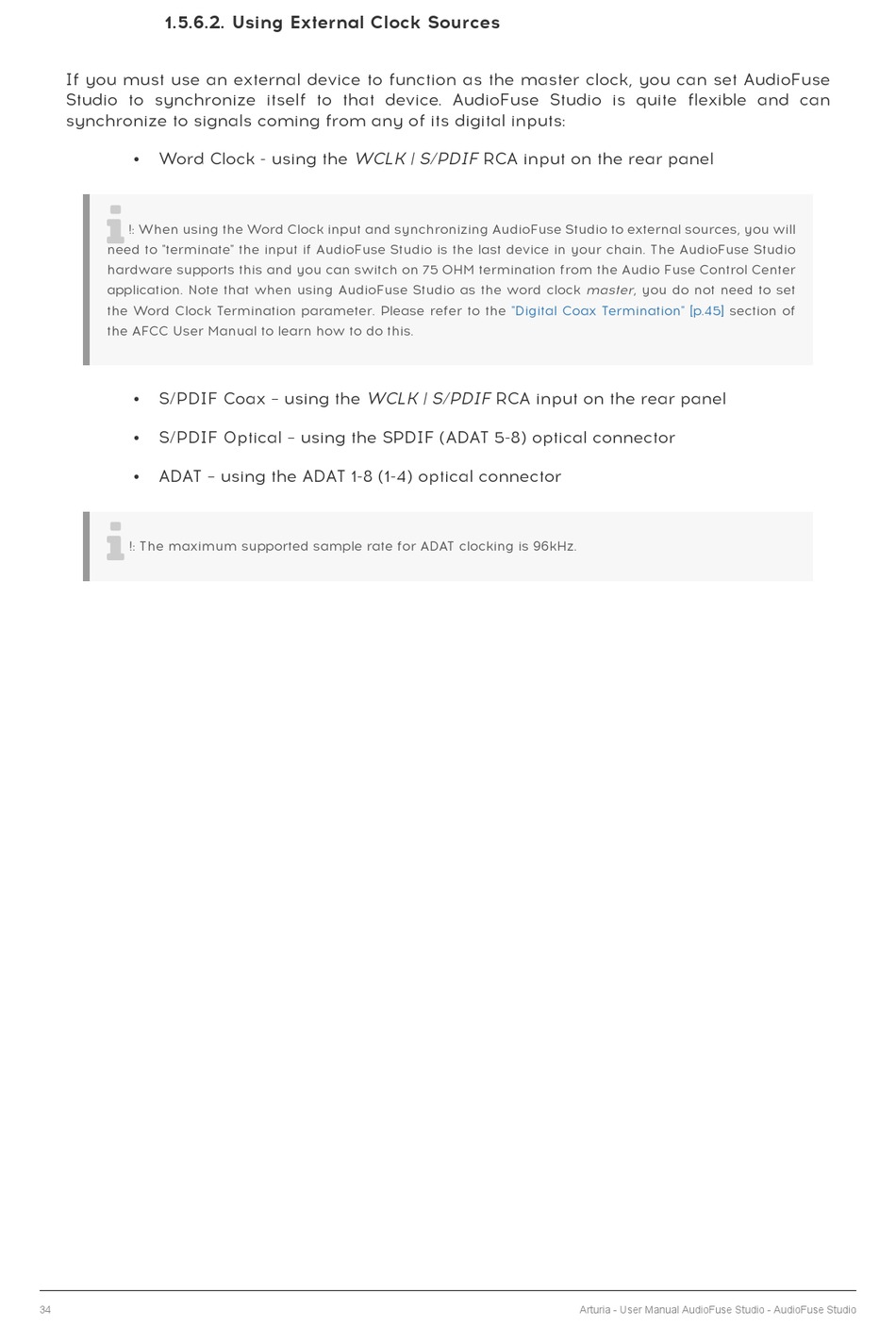

1.5.6.2. Using External Clock Sources

If you must use an external device to function as the master clock, you can set AudioFuse
Studio to synchronize itself to that device. AudioFuse Studio is quite flexible and can
synchronize to signals coming from any of its digital inputs:
• Word Clock - using the WCLK | S/PDIF RCA input on the rear panel

!: When using the Word Clock input and synchronizing AudioFuse Studio to external sources, you will
need to "terminate" the input if AudioFuse Studio is the last device in your chain. The AudioFuse Studio
hardware supports this and you can switch on 75 OHM termination from the Audio Fuse Control Center
application. Note that when using AudioFuse Studio as the word clock master , you do not need to set
the Word Clock Termination parameter. Please refer to the
the AFCC User Manual to learn how to do this.
• S/PDIF Coax – using the WCLK | S/PDIF RCA input on the rear panel
• S/PDIF Optical – using the SPDIF (ADAT 5-8) optical connector
• ADAT – using the ADAT 1-8 (1-4) optical connector

!: The maximum supported sample rate for ADAT clocking is 96kHz.
34
"Digital Coax Termination" [p.45]
Arturia - User Manual AudioFuse Studio - AudioFuse Studio
section of
