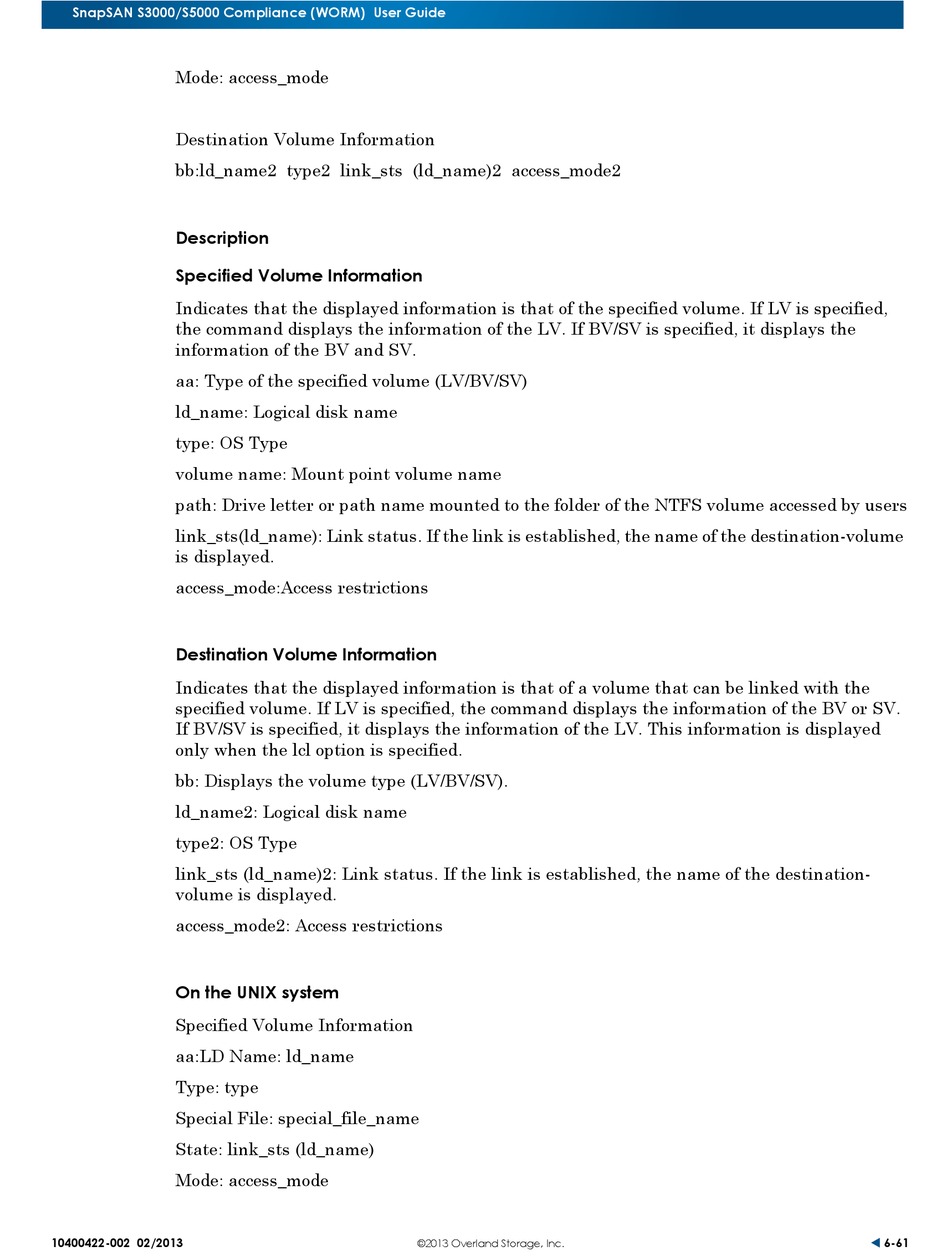

Overland Storage Snapshot SnapSAN User Manual page 260

SnapSAN S3000/S5000 Compliance (WORM) User Guide
Mode: access_mode
Destination Volume Information
bb:ld_name2 type2 link_sts (ld_name)2 access_mode2
Description
Specified Volume Information
Indicates that the displayed information is that of the specified volume. If LV is specified,
the command displays the information of the LV. If BV/SV is specified, it displays the
information of the BV and SV.
aa: Type of the specified volume (LV/BV/SV)
ld_name: Logical disk name
type: OS Type
volume name: Mount point volume name
path: Drive letter or path name mounted to the folder of the NTFS volume accessed by users
link_sts(ld_name): Link status. If the link is established, the name of the destination-volume
is displayed.
access_mode:Access restrictions
Destination Volume Information
Indicates that the displayed information is that of a volume that can be linked with the
specified volume. If LV is specified, the command displays the information of the BV or SV.
If BV/SV is specified, it displays the information of the LV. This information is displayed
only when the lcl option is specified.
bb: Displays the volume type (LV/BV/SV).
ld_name2: Logical disk name
type2: OS Type
link_sts (ld_name)2: Link status. If the link is established, the name of the destination-
volume is displayed.
access_mode2: Access restrictions
On the UNIX system
Specified Volume Information
aa:LD Name: ld_name
Type: type
Special File: special_file_name
State: link_sts (ld_name)
Mode: access_mode
