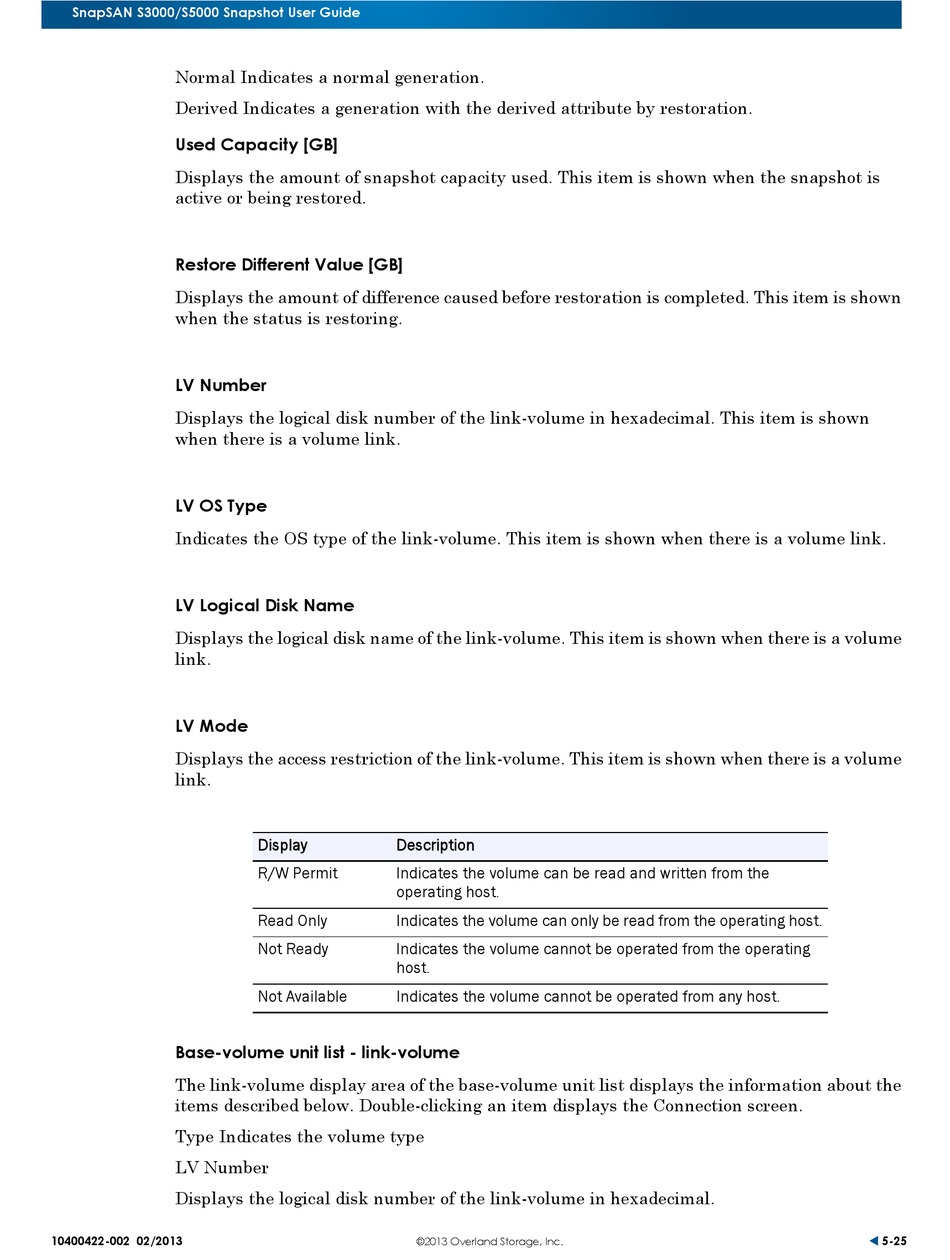

Normal Indicates a normal generation.
Derived Indicates a generation with the derived attribute by restoration.
Used Capacity [GB]
Displays the amount of snapshot capacity used. This item is shown when the snapshot is
active or being restored.
Restore Different Value [GB]
Displays the amount of difference caused before restoration is completed. This item is shown
when the status is restoring.
LV Number
Displays the logical disk number of the link-volume in hexadecimal. This item is shown
when there is a volume link.
LV OS Type
Indicates the OS type of the link-volume. This item is shown when there is a volume link.
LV Logical Disk Name
Displays the logical disk name of the link-volume. This item is shown when there is a volume
link.
LV Mode
Displays the access restriction of the link-volume. This item is shown when there is a volume
link.
Base-volume unit list - link-volume
The link-volume display area of the base-volume unit list displays the information about the
items described below. Double-clicking an item displays the Connection screen.
Type Indicates the volume type
LV Number
Displays the logical disk number of the link-volume in hexadecimal.
10400422-002 02/2013
Display Description
R/W Permit Indicates the volume can be read and written from the
operating host.
Read Only Indicates the volume can only be read from the operating host.
Not Ready Indicates the volume cannot be operated from the operating
host.
Not Available Indicates the volume cannot be operated from any host.
