OPERATION

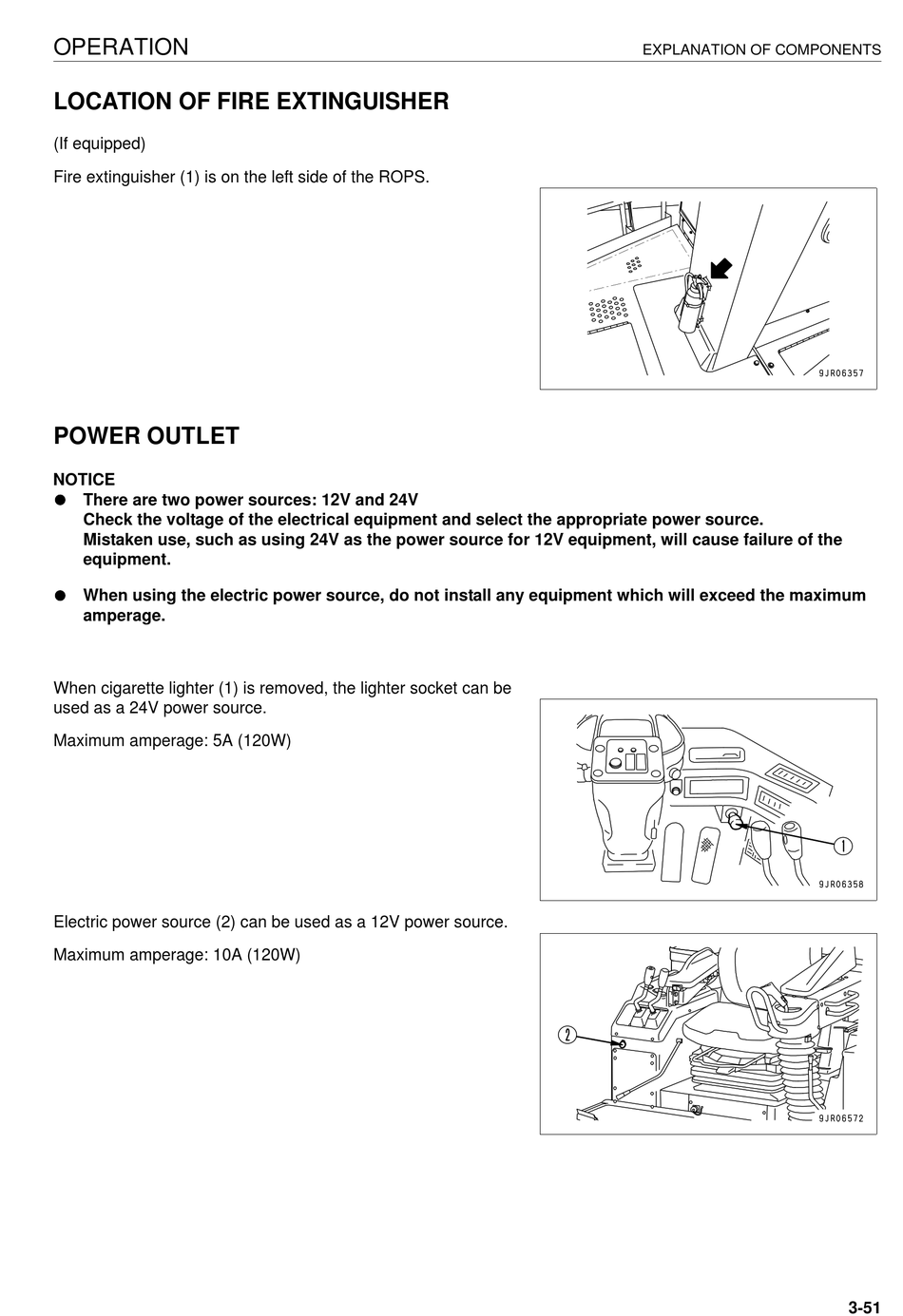

LOCATION OF FIRE EXTINGUISHER

(If equipped)
Fire extinguisher (1) is on the left side of the ROPS.

POWER OUTLET

NOTICE
q There are two power sources: 12V and 24V
Check the voltage of the electrical equipment and select the appropriate power source.
Mistaken use, such as using 24V as the power source for 12V equipment, will cause failure of the
equipment.
q When using the electric power source, do not install any equipment which will exceed the maximum
amperage.
When cigarette lighter (1) is removed, the lighter socket can be
used as a 24V power source.
Maximum amperage: 5A (120W)
Electric power source (2) can be used as a 12V power source.
Maximum amperage: 10A (120W)
EXPLANATION OF COMPONENTS
3
3
3-51
