WEIGHT CHANGES
Operating weight
Remove ROPS canopy
-1385 kg
-3,055 lb
Remove steel cab
-430 kg
-950 lb
Install additional counterweight
+1600 kg
+3,530 lb
STANDARD EQUIPMENT
● 2-spool valve for boom and bucket
● Front working lights (2)
● Hard water area arrangement
controls
● Alternator, 90 A/24 V
(corrosion resister)
● Air conditioner
● Head lights (2)
● Automatic transmission F3 / R3
● Lift cylinders and bucket cylinder
● Back-up alarm
● Radiator mask, lattice type
● Back-up lamp
● Rear access stairs
● Batteries, 160 Ah/12 V x 4
● Rear defroster (electric)
● Boom kick-out
● Rearview mirrors
● Bucket positioner
● Rear window washer and wiper
● Counterweight
● Rear working lights (2)
● Directional signal
● Room mirror
● Emergency brake
● ROPS/FOPS canopy
● Engine, Komatsu SAA12V140E-3 diesel
● Seat belt
● Floormat
● Seat, suspension type with reclining
OPTIONAL EQUIPMENT
● AJSS (advanced Joystick Steering
● Engine pre-lube system
● Fast fill fuel system
System)
● AM/FM radio
● Fenders
● AM/FM stereo radio cassette
● Fire extinguisher
● Ashtray and cigarette lighter
● Heater and defroster
● Automatic greasing
● High lift boom
● Bucket corner teeth
● Mesh chain
● Bucket teeth (weld-on/tip type)
● Ordinary spare parts
● Counterweight for high lift boom
● Power train guard
● Emergency steering (SAE)
● Rear under view mirror
www.Komatsu.com
CEN00186-01
Materials and specifications are subject to change without notice
Tipping load
Straight
Full turn
-1220 kg
-2,690 lb
-1180 kg
-2,600 lb
-335 kg
-740 lb
-330 kg
-730 lb
+3850 kg
+8,490 lb
+3400 kg
+7,500 lb
● Service brakes, wet disc type
● Side working lights (2)
● Standard boom
● Starting motor, 7.5 kW/24 V x 2
● Steel cab included front wiper, windshield
washer and power window
● Steering wheel, tiltable
● Sun visor
● Tires (45/65-45-46PR L5 tubeless)
and rims
● Water separator
● Short boom
● Sweeper wing
● Tires (45/65-45-50PR L5 tubeless)
● Tires (45/65-R45 L5 tubeless)
● Tool kit
● Under view mirror
● Vandalism protection
● VHMS (Vehicle Health Monitoring System)
● Yellow rotating lamp
Printed in Japan 200703 IP.SIN (10)
is a trademark of Komatsu Ltd. Japan
WA800
-3E0
W
HEEL
FLYWHEEL HORSEPOWER
603 kW 808 HP @ 2000 rpm
BUCKET CAPACITY
10.0–14.0 m
3
13.1-18.3 yd
WA
800

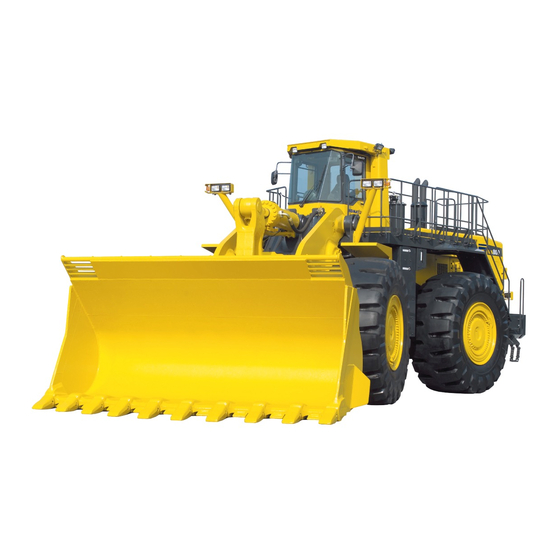

Photo may include optional equipment.
L
OADER
3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Komatsu WA800-3E0
Summary of Contents for Komatsu WA800-3E0
- Page 1 FLYWHEEL HORSEPOWER 603 kW 808 HP @ 2000 rpm WEIGHT CHANGES BUCKET CAPACITY 10.0–14.0 m 13.1-18.3 yd Operating weight Tipping load Straight Full turn Remove ROPS canopy -1385 kg -3,055 lb -1220 kg -2,690 lb -1180 kg -2,600 lb Remove steel cab -430 kg -950 lb -335 kg...
- Page 2 WA800 -3E0 WA800 WHEEL LOADER -3E0 H E E L O A D E R ROUND FLYWHEEL HORSEPOWER 603 kW 808 HP @ 2000 rpm ● Reliability Hydraulic hoses use flat face BUCKET CAPACITY O-ring seals ● 10.0–14.0 m 13.1-18.3 yd Reliable Komatsu designed and ●...
- Page 3 WA800 -3E0 WA800 WHEEL LOADER -3E0 H E E L O A D E R RODUCTIVITY AND ONSUMPTION High Performance SAA12V140E-3 Engine Dual-Mode Active Working System Electronic Heavy Duty Common Rail fuel injection system The machine can be equipped with two mode active working provides optimum combustion of fuel.
- Page 4 WA800 -3E0 WA800 WHEEL LOADER -3E0 H E E L O A D E R NCREASED ELIABILITY AINTENANCE Komatsu Components High-rigidity Frames and Loader Linkage Komatsu manufactures the engine, torque converter, The front and rear frames and the loader linkage have more transmission, hydraulic units, electric parts, on this wheel torsional rigidity to secure resistance against increased loader.
-
Page 5: Easy Operation
WA800 -3E0 WA800 WHEEL LOADER -3E0 H E E L O A D E R PERATOR NVIRONMENT Easy Operation Comfortable Operation Automatic Transmission with Steering Wheel Type Remote Boom Positioner Roomy, Quiet Cab With Power Windows Electronically Controlled Modulation Valve (ECMV) The highest and lowest position of the bucket can be set The cab is large, with a comfortably spacious interior and Automatic transmission with ECMV automatically selects the... -
Page 6: Specifications
WA800 -3E0 WA800 WHEEL LOADER -3E0 H E E L O A D E R PECIFICATIONS DIMENSIONS Measured with 45/65-45-46PR(L-5) tires Standard High lift Short ENGINE HYDRAULIC SYSTEM Boom Boom Boom Model ......Komatsu SAA12V140E-3 Steering system: Tread 3350 mm 11'...
