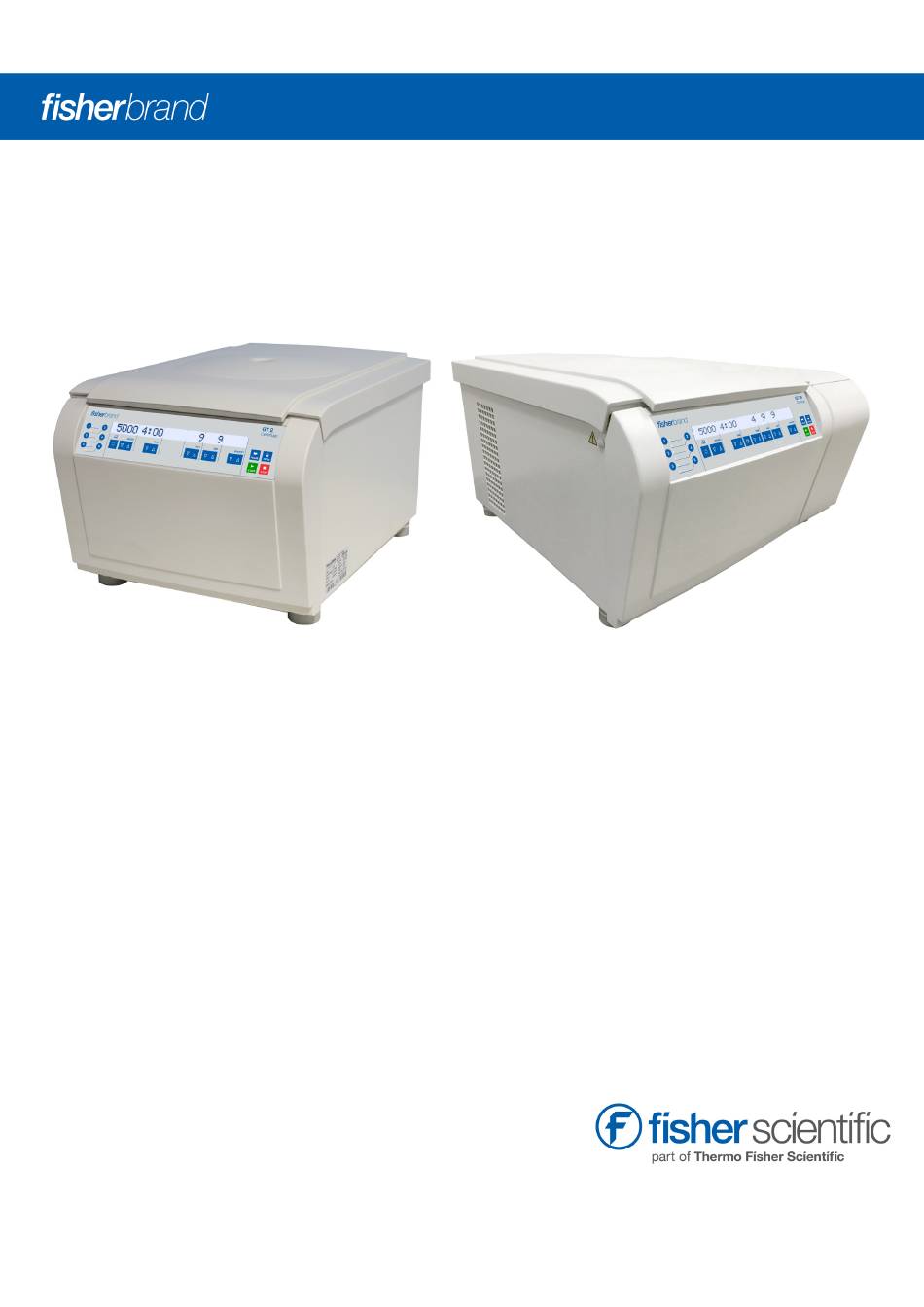

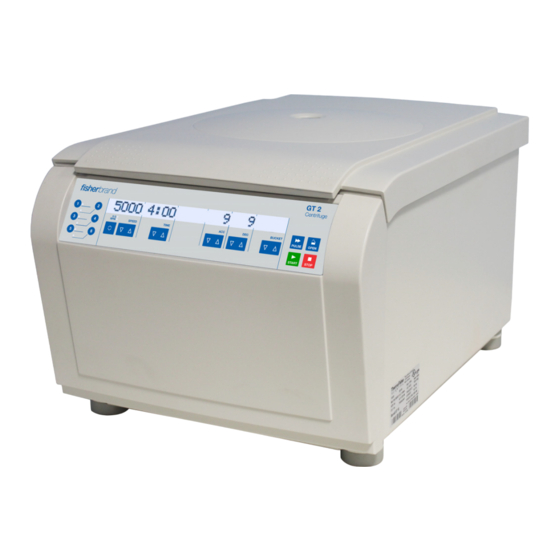

- Page 1 Instruction manual Fisherbrand GT2 Centrifuge Fisherbrand GT2R Centrifuge 50156459-b • 11 / 2020 15808722 15818722...
- Page 2 ™ ™ ™ ™ BIOShield , Fiberlite , HIGHConic , Microliter , MicroClick and Auto-Lock All trademarks are the property of Thermo Fisher Scientific Inc. and its subsidiaries unless otherwise specified. © 2020 Thermo Fisher Scientific Inc. All rights reserved.
-
Page 3: Table Of Contents
Contents Preface ................ 1 Scope of Supply............1 Intended Use............1 Accident Prevention ..........1 Precautions .............. 1 Introduction and Description ........3 Characteristics ............3 Technical Data ............3 Directives, Standards and Guidelines ....... 4 Functions and Features ..........4 Mains Supply ............ - Page 4 Close Lid..............10 Rotor Installation ............10 Entering Parameters..........11 Saving programs ............12 Centrifugation............12 Temperature Adaptation during Standstill....13 Short-term Centrifugation......... 13 Removing the Rotor ..........13 Aerosol-Tight Rotors ..........14 Aligning the Centrifuge ..........14 System Menu............... 15 Description...............
-
Page 5: Preface
The information contained in this instruction manual is the property of Thermo Fisher Scientific; it is forbidden to copy or • The mains plug must be freely accessible at all times. - Page 6 • The lid emergency release may be used in emergencies This symbol refers to general hazards. only to recover the samples from the centrifuge, e.g. CAUTION: Means that material damage could during a power failure (Refer to Mechanical Emergency occur. Door Release).
-
Page 7: Introduction And Description
Introduction and Description • The housing and rotor chamber consist of steel plate and Characteristics the interior is made of armour steel, while the front panel is made of high-impact resistant plastic. Several rotors with a wide range of tubes can be used. •... -
Page 8: Directives, Standards And Guidelines
Feature Values Maximum RCF value at n 25 830 x g 25 830 x g Maximum kinetic energy 62.5 kJ 51.7 kJ Noise level at maximum speed < 63 dB (A) < 63 dB (A) Temperature setting range -10 °C to +40 °C Dimensions Refrigerated Ventilated... -
Page 9: Mains Supply
Component / Function Description / Features Functions RCF-selection, temperature control, pretemp with cooling equipped devices Acceleration / braking profiles 9 acceleration and 10 braking curves Rotor recognition Automatic Imbalance recognition Electronic, contingent on rotor and speed Lid lock Automatic lid closing and locking starting from an initial hold position Mains Supply The following table contains an overview of the electrical connection data for the Fisherbrand GT 2 / 2R Centrifuge. -
Page 10: Rotor Selection
Rotor Selection Various rotors are available to choose from the following: TX-400 75003629 with round buckets 75003655 TX-200 75003658 with round buckets 75003659 ™ BIOShield 75003621 M-20 75003624 ™ Microliter 30x2 sealed 75003652 ™ CLINIConic 30x15 75003623 8x50 sealed 75003694 ™... -
Page 11: Before Use
Before Setting up Location 1. Check the centrifuge and the packaging for any shipping The centrifuge should only be operated indoors. damage. Inform Fisher Scientific Customer Service The set-up location must fulfill the following requirements: immediately if any damage is discovered. •... -
Page 12: Mains Connection
Mains Connection Main Power Switch Mains plug Figure 2. Mains Connection 1. Turn off the power supply switch ON the back (press "0"). 2. Plug the centrifuge into grounded electrical sockets only. 3. Check whether the cable complies with the safety standards of your country. -
Page 13: Control Panel
Control Panel Control Panel The control panel contains the keys and displays of the centrifuge (only the power switch is located on the back of the device). All parameters can be selected and changed during operation. Speed / RCF value PULSE key Acceleration curve Program selection keys... -
Page 14: Operation
Operation Switch ON Centrifuge Rotor Installation 1. Turn on the power switch ON the back of the device. The approved rotors for the Fisherbrand GT 2 / 2R Centrifuge are listed in section Rotor Selection. Use only the rotors and The device performs a self-check of its software. -
Page 15: Entering Parameters
3. Check if the rotor is properly installed by lifting it slightly The display shows the message "Set deceleration" on the handle. If the rotor can be pulled up, then it must be reclamped to the centrifuge spindle. WARNING: If the rotor cannot be properly 2. -
Page 16: Saving Programs
The display shows the message "Set time". 3. The display shows: Enter the desired runtime in H.mm. The display shows the current temperature inside the rotor chamber. 2. Enter the desired value by pressing the key repeatedly, until the desired value shows. 4. -
Page 17: Temperature Adaptation During Standstill
Imbalance indicator Short-term Centrifugation If a load is imbalanced, this will be indicated at speed higher For short-term centrifuging, the Fisherbrand GT 2 / 2R than approximately 300 rpm by the message "Imbalanced Centrifuge has a PULSE- function. load". By holding down the PULSE key , spinning will start and The run will terminate. -
Page 18: Aerosol-Tight Rotors
Aerosol-Tight Rotors When using an aerosol tight lid the rotor can only be removed with the lid closed. This is to protect you and the samples. CAUTION: Rotors supplied with a lid for aerosol-tight applications come with a mandrel, which belongs to the Auto-Lock. Be sure not to place the lid onto this mandrel to prevent it from being damaged. -
Page 19: System Menu
System Menu • below the bucket selection in order to navigate within the system menu points. Enter system menu? Press the STOP key to exit the system menu. Stop Stop Start Start English Language English Deutsch ... -
Page 20: Description
LCD Powersave Description Use the keys below the bucket selection until it says YES in the display if the centrifuge should enter a powersave mode Enter System Menu after the run. Otherwise use the keys below the bucket selection until it says NO. To enter the system menu hold down any of the keys when Use the keys below the speed display in order to... -
Page 21: Maintenance And Care
7. Dry all of the rotors and accessories after cleaning with a Use only approved cleansers. cloth or in a warm air cabinet at a maximum temperature of 50 °C. If in doubt, contact Fisher Scientific. • Tread the bold of the swing out rotor with bold grease (75003786). -
Page 22: Disinfection
1. Open the centrifuge. instructions for the cleaning agents used. 2. Turn OFF the centrifuge. Contact the Service Department of Fisher Scientific for questions regarding the use of other disinfectants. 3. Pull out the power supply plug. Disinfect the rotor and accessories as follows: 4. -
Page 23: Autoclaving
Autoclaving • Before autoclaving clean rotor and accessories as described above. • Place the rotor on a flat surface. • Rotors and adapter can be autoclaved at 121 °C. • The maximum permissible autoclave cycle is 20 minutes at 121 °C. Note: No chemical additives are permitted in the steam. -
Page 24: Troubleshooting
Troubleshooting Reconnect the centrifuge once the power has been restored. Mechanical Emergency Switch ON the centrifuge. Press the OPEN key to have OPEN the door locks operative again. Door Release During a power failure, you will not be able to open the centrifuge lid with the regular electric lid release. -
Page 25: Troubleshooting By User
Troubleshooting by User If problems occur other than those listed in this table, the authorized customer service representative must be contacted. Failure Problem with centrifuge Possible causes and cures message Overtemperature The centrifuge cannot be operated. Overheating in chamber. The run does not start or the centrifuge Check the function of the refrigeration unit. - Page 26 Failure Problem with centrifuge Possible causes and cures message Emergency release The centrifuge cannot be operated. The lid opens while the device is running. The run does not start or the centrifuge Close the lid and restart the centrifuge. runs down without being braked. If an error message appears again, contact Unity Lab Services.
- Page 27 Failure Problem with centrifuge Possible causes and cures message E-23 The centrifuge cannot be operated. The speed control measurement returned a different result. The run does not start or the centrifuge runs down without being braked. Restart the centrifuge. If an error message appears again, contact Unity Lab Services.
-
Page 28: When To Contact Customer Service
Failure Problem with centrifuge Possible causes and cures message E-40 The centrifuge cannot be operated. The centrifuge accelerates too slowly. The run does not start or the centrifuge Check whether you selected the right bucket. runs down without being braked. Check whether you selected the right bucket. -
Page 29: Chemical Compatibility Chart
Chemical Compatibility Chart CHEMICAL 2-mercaptoethanol S S U - S M S - S U S S U S S - S S S S U S S S S S S Acetaldehyde U U - M U U U M M - M S U - Acetone M S U U S U M S S U U S U S U U U S S U U S M M S U U... - Page 30 CHEMICAL Ammonium S S S S S S S S - S S M - S S S S S S M S S S Phosphate Ammonium Sulfate U M S - S S U S S S S S S S S S - S S S S S S U S S U Amyl Alcohol M U -...
- Page 31 CHEMICAL Chromic Acid (10 %) U U S U U - S S S U S S M U M S S U M S M U S S S Chromic Acid (50 %) U U - U U - S U U S M U M S S U M S - U M - Cresol Mixture...
- Page 32 CHEMICAL Ethylene Dichloride U U - S M - U U S U U U U U U U - U S U - Ethylene Glycol S S S S S S S S S S S S - S U S S S S S S S S M S M S Ethylene Oxide Vapor S U - S M -...
- Page 33 CHEMICAL Potassium Bromide U S S - S S S - S S S S S S S S S S S - S S S M S S S Potassium Carbonate M U S S S S S - S S S S S S U S S S S S S S S S S S S Potassium Chloride U S S -...
- Page 34 CHEMICAL Methyl Alcohol S S S U S S M S S S S S U S U M S S S S S S S M S M U Methylene Chloride U U U U M S S U S U U S U U U U U M U U U S S M U S U Methyl Ethyl Ketone S S U U S S M S S U U S U S U U U S S U U S S S S U U Metrizamide...
- Page 35 CHEMICAL Sodium Sulfate U S S - S S S S S S S S S S S S S S S S S S S M S S S Sodium Sulfide S S - S S S U U - S S M - Sodium Sulfite S S S -...
- Page 36 CHEMICAL Rubidium Bromide M S S - S S S - S S S S S S S - S S S S S S M S S S Rubidium Chloride M S S - S S S - S S S S S S S - S S S S S S M S S S Sucrose M S S -...
- Page 37 CHEMICAL Trichloroethane M U - S U U U U U U U U U S U - Trichloroethylene U U - S U U U U U U U U U S U - Trisodium Phosphate S S S - Tris Buffer (neutral pH) U S S S S S S - S S S S S S S S S S S S S S S S S S S...
- Page 38 Trademarks and Owners DELRIN, CLEARCRIMP: E. I. du Pont de Nemours and Company NORYL: AABIC Innovative Plastics IP B.V. POLYCLEAR: ICL SPECIALTY PRODUCTS, INC. RULON A, TYGON: Saint-Gobain Performance Plastics TEFLON: The Chemours Company FC VITON: FKM 34 | Chemical Compatibility Chart Centrifuge GT 2 / 2R...
- Page 39 être collecté ou recyclé par celles-ci. Davantage d’informations sur la conformité de Fisher Scientific à ces directives, les recycleurs dans votre pays et les informations sur les produits Fisher Scientific qui peuvent aider le détection des substances sujettes à...
- Page 40 IF YOU NEED ASSISTANCE: Fisher Scientific products are backed by a global technical support team ready to support your applications. We offer cold storage accessories, including remote alarms, temperature recorders, and validation services. Visit eu.fishersci.com or call: Countries Sales Services...
- Page 41 Thermo Fisher Scientific Zweigniederlassung Osterode Am Kalkberg, 37520 Osterode am Harz Germany 50156459 is the original instruction manual. Find out more at eu.fishersci.com 50156459-b 15808722, 15818722...
Need help?
Do you have a question about the Fisherbrand GT2 and is the answer not in the manual?
Questions and answers
I am holding down buttons (I have tried multiple) while powering on the centrifuge but cannot get into the system menu. It just says ‘release key’ then shows the usual display. The centrifuge works fine, I just want to turn on the end of run beep!
To access the system menu on the Fisher Scientific GT2 centrifuge and enable the end of run beep:
1. Use the keys below the speed display to navigate through the system menu.
2. Use the keys below the bucket selection until the display shows "YES" for the End of Run Beep.
3. Press the STOP key to quit the system menu.
