Model #7100 "EVOLUTION" A-FRAME LADDER
Adjustable to fit 48" to 54" Rigid-Framed Above Ground Pools
ASSEMBLY INSTRUCTIONS - PLEASE READ BEFORE ATTEMPTING ASSEMBLY

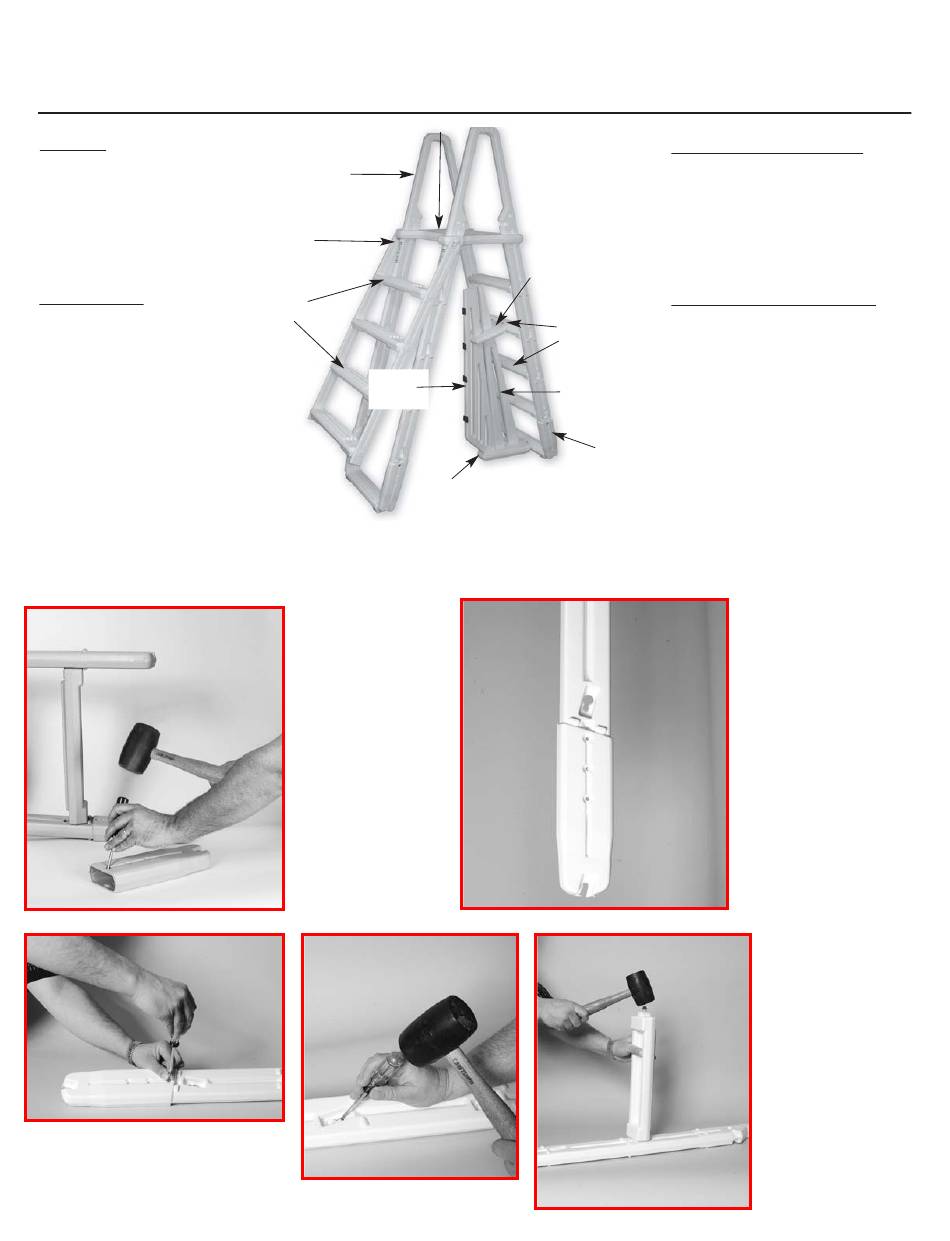

Parts List
4 - Ladder Legs
2 - Tread Connectors
4 - "Swing Up" Treads
6 - Standard Treads
4 - Extension Boots
1 - Platform
Hardware Pack
4 - 1/4 - 20 x 2" Bolt
4 - 1/4 - 20 Acorn Nut
2 - #10 x 1-1/4" Screw
2 - 1/4 - 20 x 2-1/4" Bolt
2 - 1/4" Flat Washer
2 - 1/4 - 20 Hex Nut
4 - Plug (white)
1 - Padlock
If missing parts call - Toll free U.S. - 866-396-2968 or www.conferladders.com
*NOTE: If you are using this ladder on a 48" pool you will not use the extension boots. Proceed to #4.
Using four 1/4-20 x 2" long bolts and
four acorn nuts fasten the extension
boots to the ladder legs
2
Ladder Leg
Tread
Connector
Swing Up
Tread
Large
Barrier
If the round
1.
plastic inserts,
on the sides of
the extension
boots, are still
in place,
remove them
with a phillips
head screw-
driver as
shown.
3.
Remove the keyhole slot inserts
from two of the ladder legs.
Platform
Upper Brace
Standard
Tread
Small
Barrier
Extension
Boot
Lower Base
4.
Tools Needed for Assembly
* - Hammer or mallet
* - Phillips Screwdriver
* - Adjustable wrench
* - Liquid soap or lubricant
* - Battery operated drill motor
* - 5/16" Drill bit
Barrier Parts List (if included)
(Included in Hardware Pack)
4 -
#10 x 1-1/4" screws
1 - Strip of 4 Foam Pads
1 - Large Barrier Section
1 - Small Barrier Section
1 - Upper Brace
1 - Lower Base
2. Slip the four extension
boots over the ends of
the assembled ladders
legs. They will need to
be all the way on for
most 52" tall pools and
backed off one hole for
54" pools. Depending
upon ground levels out-
side the pool, and sand
levels under the liner
inside the pool, a final
adjustment may need
to be made after the
ladder is put into place.
5. Push the end of one
of the standard treads
into the uppermost
keyhole slot. Make
sure that the tread
and the ladder leg are
positioned as shown
in the photograph
above. It may be nec-
essary to tap the tread
into the slot with a
mallet. Repeat for
three additional
treads.
