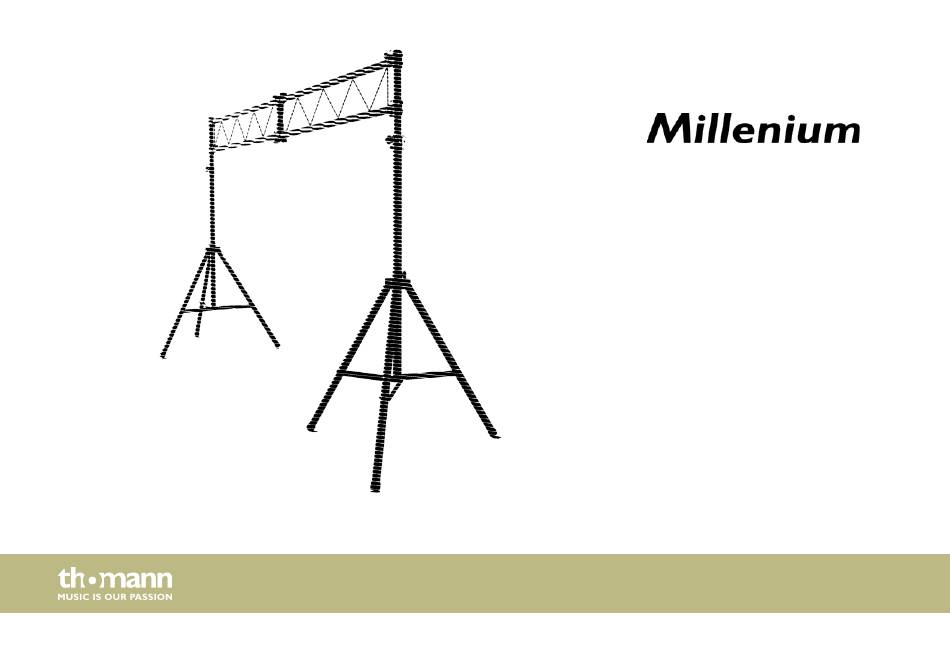

- Page 1 SLS300 lighting stand user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 10.01.2020, ID: 180075 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 Safety instructions............................. 6 Features ................................. 9 Operating..............................10 Technical specifications........................26 Protecting the environment......................28 SLS300... -
Page 4: General Information
Our products are subject to a process of continuous development. Thus, they are subject to change. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 5 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This light stand is intended to be used for the stable mounting and height-adjustable posi‐ tioning of spotlights. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the product.
- Page 8 Safety instructions CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property...
-
Page 9: Features
Features Features Special features: Quick and easy assembly 3 m wide crossbar, optionally expandable to max. 4.5 m Support height up to 3 m Maximum weight-bearing capacity of the system: 25 kg Maximum weight-bearing capacity per tripod: 18 kg SLS300... -
Page 10: Operating
Operating Operating Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Operating CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property damage.
- Page 12 Operating NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 13 Operating Scope of delivery Before you assemble your lighting stand, make sure the contents of package is complete according to the following list: Truss section A (2 ×) T-piece B without bolt (2 ×) SLS300...
- Page 14 Operating Pipe C without screw joint (1 ×) Pipe D with screw joint (2 ×) lighting stand...
- Page 15 Operating T-piece E with bolt (4 ×) SLS300...

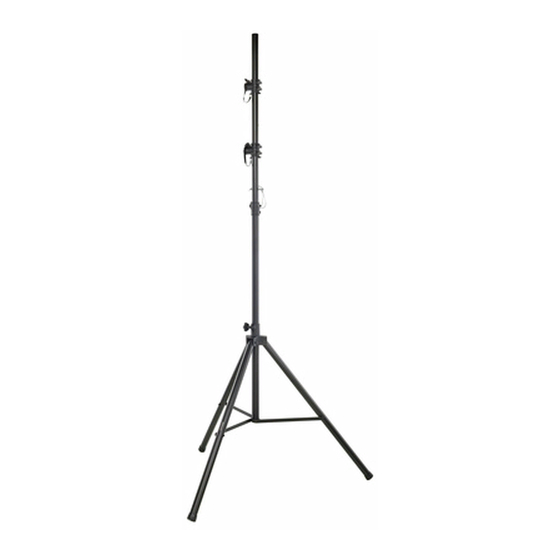

- Page 16 Operating Stand F (2 ×) lighting stand...
- Page 17 Operating Allen key SLS300...
- Page 18 Operating Assembly Basically you can carry out the following steps on your own. But with the assistance of a second person the assembly will be much easier. Remove the rubber caps from the ends of the truss sections (A). lighting stand...
- Page 19 Operating Attach the two T-pieces (B) to the ends of tube (C). Plug the combination of (B) and (C) on the open side of a truss section (A). Then slide the tubes (D) through the T-pieces (B) into truss section (A) and screw the tubes (D). SLS300...
- Page 20 Operating Plug the second truss section on the open end and screw it. lighting stand...
- Page 21 Operating Insert the T-pieces (E) on the outer ends of the two truss sections (A). SLS300...
- Page 22 Operating Secure the T-pieces (E) with the safety bolts. lighting stand...
- Page 23 Operating Unfold the feet of the tripod until the cross braces are in a horizontal position. Fix this position with the safety screw on the slider to which the three feet are attached. Pull out the safety bolt and loosen the locking screw on the extension tube. Pull out the extension tube to the desired height, insert the safety pin through the appropriate grid holes and slide the safety cotter through the hole in the safety bolt.
- Page 24 Operating Plug the truss with the T-pieces onto the extension tube of the stands and attach the truss to the T-pieces (E) with the Allen screws. Mount the headlight (s), if necessary with adapters, on the crossbar. Observe the instruc‐ tions of the respective manufacturers.
- Page 25 Operating Dismounting Remove the spotlight(s). Loosen the Allen screws on the T-pieces (E) at the ends of the truss and pull the truss off the stands. Disassemble the truss in the reverse order of the assembly instructions as far as it makes sense for a transport or storage in view of a new assembly.
-
Page 26: Technical Specifications
Technical specifications Technical specifications Height, max. 2.65 m Total width 3,00 m Adjustable tripod height 1.20 m … 2.65 m Footprint Æ 1.34 m Single truss length 2 × 1.50 m, optionally expandable to 4,50 m max. Tripod tube diameter Æ... - Page 27 Technical specifications Weight 12 kg Colour black Further information Stand type Background Kit incl. cross beam Crank SLS300...
-
Page 28: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 29 Notes SLS300...
- Page 30 Notes lighting stand...
- Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
