Summary of Contents for thomann ROADWORX Lighting Stand 1

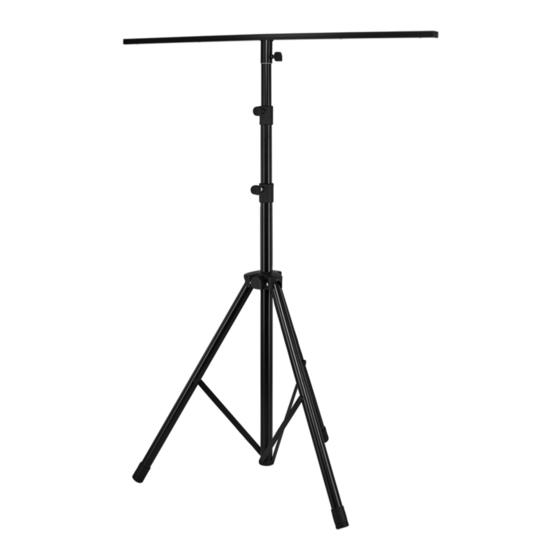

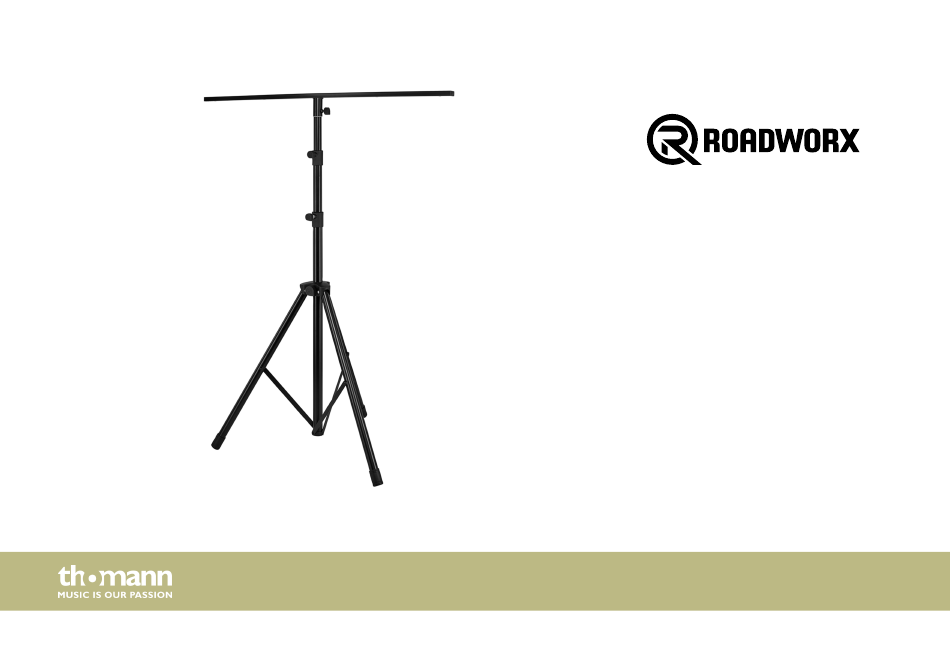

- Page 1 Lighting Stand 1 lighting stand user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 07.07.2021, ID: 442430...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 Safety instructions............................. 6 Features................................8 Operating............................... 9 Technical specifications........................14 Protecting the environment......................16 Lighting Stand 1... -
Page 4: General Information
Our products are subject to a process of continuous development. Thus, they are subject to change. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 5 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This light stand is intended to be used for the stable mounting and height-adjustable posi‐ tioning of spotlights. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Safety instructions CAUTION! Danger of tipping when transported under load If the stand is moved without having removed the installed device, the stand may tip over and cause injuries and property damage. Remove the installed device before transporting the stand. CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage.
-
Page 8: Features
Features Features Special characteristics: Metal construction with crossbar for up to four spotlights Extension tubes secured by spring lock buttons Crossbar mounting Single truss: 1.20 m Maximum weight-bearing capacity: 20 kg Minimum height: 1.45 m Maximum height: 3.25 m Weight: 4.5 kg lighting stand... -
Page 9: Operating
Operating Operating Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 10 Operating CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property damage.
- Page 11 Operating NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 12 Operating Setup Unfold the feet of the tripod until the cross braces are in a horizontal position. Fix this position with the safety screw on the slider to which the three feet are attached. Loosen the locking screw of the crossbar, place the crossbar on the tripod mounting and tighten it with the locking screw.
- Page 13 Operating Dismounting Remove the spotlight(s). Loosen the safety screw on the lower tube clamp. Pull out the locking screw, slide the lower extension tube all the way down and let the locking pin of the locking screw engage in the corresponding grid perforation. Fix the position of the lower extension tube with the safety screw on the lower tube clamp.
-
Page 14: Technical Specifications
Technical specifications Technical specifications Height, max. 3.25 m Adjustable tripod height 1,45 m … 3,25 m Footprint Æ 1.08 m Tripod tube diameter Æ 41 mm Æ 38 mm Tube diameter extension tubes Æ 35 mm Dimensions crossbar (B × H × T) 1200 mm ×... - Page 15 Technical specifications Weight 4.5 kg Colour black Further information Stand type Lighting stand Incl. crossbar Crank Incl. T bar Incl. screws for lamp attachment Lighting Stand 1...
-
Page 16: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 17 Notes Lighting Stand 1...
- Page 18 Notes lighting stand...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
