Summary of Contents for thomann Millenium BLS-2700

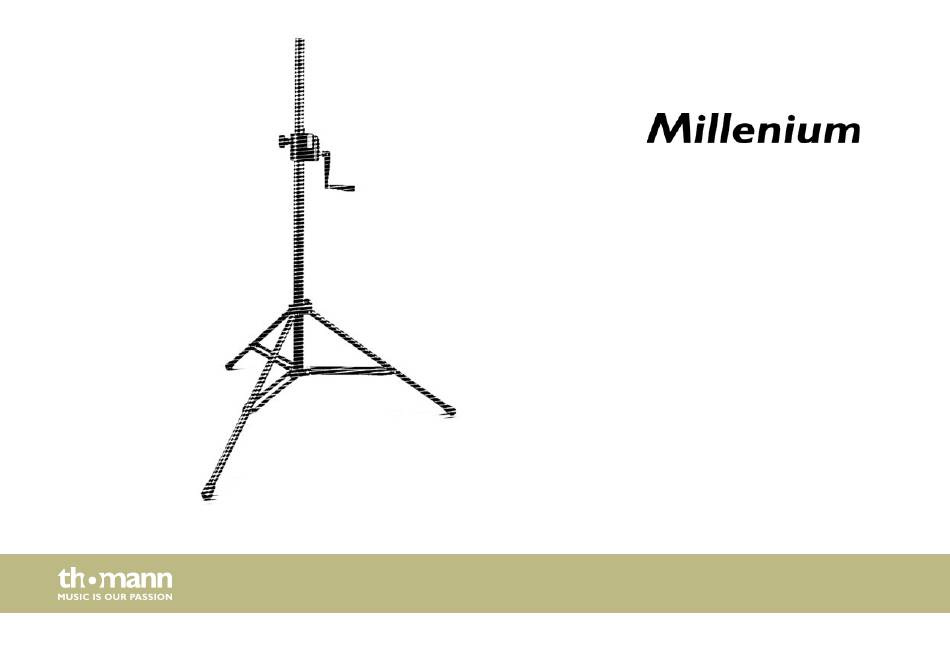

- Page 1 BLS-2700 speaker / light stand user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 30.10.2019, ID: 168997...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 Safety notes..............................6 Features................................9 Operating..............................10 Technical specifications........................15 Protecting the environment......................17 BLS-2700... -
Page 4: General Information
Our products are subject to a process of continuous development. Thus, they are subject to change. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 5 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 6: Safety Notes
Safety notes Safety notes Intended use This speaker / light stand is used for stable fixing and height-adjustable installation of loud‐ speaker cabinets and lights. Use the product only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Safety notes Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the product.
- Page 8 Safety notes CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property...
-
Page 9: Features

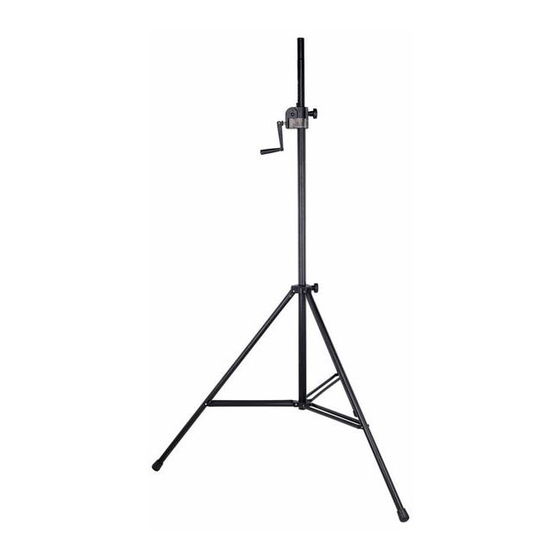

Features Features Features of the speaker / light stand: Can be extended up to a height of 3.10 m (122 in.) Centric load up to 50 kg (110 lbs) Extension tube made of hardened steel Legs and cross braces made of aluminium M10 female thread at the top end TÜV/GS approved Transport length in folded condition: 1.76 m (69.3 in.) -
Page 10: Operating
Operating Operating Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Operating CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property damage.
- Page 12 Operating NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 13 Operating Setting up Unfold the feet of the stand until the cross braces are in a horizontal position. Fix this position with the safety screw on the slider to which the three feet are attached. Lift the speaker box / spotlight onto the extension tube. The weight of the speaker box / lights to be installed must not exceed the maximum centric load of 50 kg.
- Page 14 Operating Dismounting Fold out the hand crank. Untighten the locking screw at the crank case. Press and hold the yellow security button at the crank case while fully lowering the extension tube. Release the yellow security button at the crank case, fix the position of the extension tube with the locking screw at the crank case and fold the hand crank back in.
-
Page 15: Technical Specifications
Technical specifications Technical specifications Height, max. 3.10 m Total width 1.40 m Adjustable stand height 1.94 m … 3.10 m Stand footprint 0.85 m Truss length 470 mm Stand tube diameter Æ 36 mm Truss tube diameter Æ 2 mm Mounting options M10 female thread at the top end / 35 mm flange Max. - Page 16 Technical specifications Weight 11.6 kg Colour Black Further information Stand type Crank stand Flange type 35 mm at the top end / M10 female thread Incl. truss beam Crank speaker / light stand...
-
Page 17: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 18 Notes speaker / light stand...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
