- Page 1 BLS-315 Pro Lighting Stand B Stand...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 14.11.2023, ID: 287838 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features................................9 Operation..............................10 Technical specifications........................15 Protecting the environment......................17 BLS-315 Pro Lighting Stand B Stand... - Page 4 BLS-315 Pro Lighting Stand B Stand...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This speaker / light stand is used for stable fixing and height-adjustable installation of loud‐ speaker cabinets and lights. Use the product only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 8 Safety instructions CAUTION! Risk of injury due to tipping of stand on an unsuitable ground! When the stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid ground. CAUTION! Risk of injury due to tipping of the stand from excessive loading! In case of excessive loading, the stand might tip over, causing injury and property damage.
-
Page 9: Features

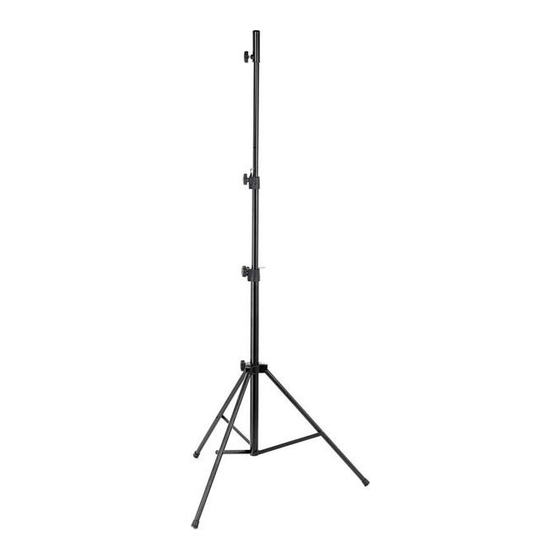

Features Features Professional speaker and light stand Material: Steel / magnesium compound Individually reinforced legs for high stability Height: 150 to 310 cm Stand space diameter 120 cm Pipe diameter: 28 mm 35 mm adapter for suitable speaker box Centric load capacity up to 30 kg Made in Europe BLS-315 Pro Lighting Stand B Stand... -
Page 10: Operation
Operation Operation Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Operation CAUTION! Risk of injury due to tipping of the stand from excessive loading! In case of excessive loading, the stand might tip over, causing injury and property damage. Never exceed the specified maximum load for the stand. CAUTION! Risk of injury due to tipping of the stand from excessive or one-sided loading of the truss beam.
- Page 12 Operation Comply with regulations When installing and operating, make sure to follow the standards and regulations that apply in your country. BLS-315 Pro Lighting Stand B Stand...
- Page 13 Operation Setup Unfold the feet of the stand until the cross braces are in a horizontal position. Fix this position with the safety screw on the carriage to which the three feet are attached. Pull out the two locking pins and loosen the two safety screws on the extension tubes. Pull out the upper extension tube to the required height and slide the locking pin through the corresponding grid hole.
- Page 14 Operation Disassembly Remove the spotlight or speaker. Pull out the locking pin on the lower extension tube. Loosen the safety screw on the lower tube clamp and slide the lower extension tube all the way down. Tighten the safety screw on the lower tube clamp. Pull out the locking pin on the upper extension tube.
-
Page 15: Technical Specifications
Technical specifications Technical specifications Height, max. 3.10 m Adjustable stand height 1.50 m … 3.10 m Footprint Æ 1.20 m Stand tube diameter Æ 28 mm Flange, Æ 35 mm Mount type Adapter Æ 35 mm/36 mm Load, max. (with centric load) 30 kg Transport dimensions (W ×... - Page 16 Technical specifications Further information Stand type Stand for lights and speakers Truss beam included Crank Material Steel-magnesium compound Adapter for single mounting Item no. 293511 (available as an option) Truss beam 100 cm Item no. 293501 (available as an option) Truss beam 120 cm Item no.
-
Page 17: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 18 Notes BLS-315 Pro Lighting Stand B Stand...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
