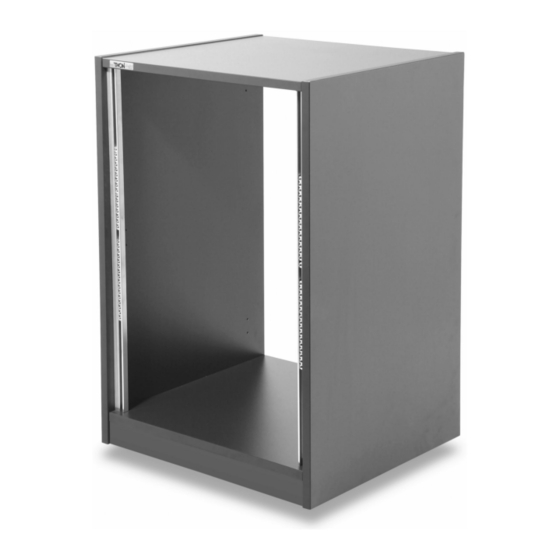

- Page 1 Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50 studio rack assembly instructions...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 21.09.2021, ID: 372110, 372118, 372123, 372126, 372155, ... (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents Safety instructions.......................................... 4 Scope of delivery..........................................5 Installation............................................7 Technical specifications......................................16 Protecting the environment....................................22 Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50... -
Page 4: Safety Instructions
Safety instructions Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the product. They could swallow the pieces and choke! Never let children play unattended with the product. -
Page 5: Scope Of Delivery
2 × countersunk screw 2 × cover plate 2 × key 1 × assembly instructions Option wheel set 4 × 50 mm wheels 16 × countersunk screw 1 × assembly instructions Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50... - Page 6 Scope of delivery Option rack strip set for rear assembly 2 × metal rack strip, continuous, fitted with nuts and rubber edging 1 × set screws 1 × set fixing screws M6 × 12 with matching washers 1 × assembly instructions studio rack...
-
Page 7: Installation
For assembly, place all components on a suitable assembly surface. Use a soft pad in order to avoid damage to the surfaces. Overview The following figure provides an overview of the positioning of the various components. ö & & ö Side panels Floor plate Base Cover plate Rack strips Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50... - Page 8 Installation Preparation of components Insert the connector housings and connecting bolts into the blind holes provided for them in the base plate (4 × connecting bolts, 6 × connector housings), the cover plate (6 × connector housings) and the bases (2 × connector housings each). After inserting the connecting bolts, they are loose the holes and only spread apart after fastening the connector housings at the corresponding component.
- Page 9 Turn the connector housings clockwise to lock the connection with the bolts inserted. Check both bases for tightness and turn over the pre-assembled unit. Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50...
- Page 10 Installation Assembling the side panels and cover plate ö ö ö Side panels Floor plate Cover plate Position all connector housings so that the connecting bolts can be fully inserted into the holes. First, bolt together the base plate with the horizontal side panel. Turn the connector housings clockwise to lock the connec‐ tion with the bolt inserted.
- Page 11 Assembly depth without door: 0 … 55 mm. Assembly depth with door: min. 75 mm. Make sure holes for strike plate are not covered! & & Rack strips Wood screws Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50...
- Page 12 Installation Assembly of optional doors The locks of the lockable doors are pre-assembled. Check for tightness and, if required, re-tighten the fixing nuts of the locks before assembling the doors. For the assembly of the optional glass door, a minimum of 75 mm must be provided for between the front outer edges and the rack strips (see figure).
- Page 13 Place the cabinet on its side and screw on the two hinges of the furniture door using one countersunk screw and two system screws for each hinge. Finally, insert the plastic covers supplied into the two hinges. Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50...
- Page 14 Installation Assembly of optional castors Place the rack upside down for the assembly of the castors. Screw the four castors to the underside of the rack using four screws each. Casters Countersunk screw studio rack...
- Page 15 Installation Rack with assembled glass door Rack with assembled furniture door Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50...
-
Page 16: Technical Specifications
Dimensions (W × H × D) 540 mm × 545 mm × 500 mm Weight Approx. 16.3 kg Tab. 1: Accessories for Thon Studio Rack 10U 50 Glass door front Thon Glass Door 10U Studio, item number 380975 Furniture door back, graphite... - Page 17 Thon Back Door 12U Studio beech, item number 524812 Wheel set Thon Wheel Set 50mm Studio Rack, item number 382512 Rack Strip Set Thon 12U Studio Rack Strip Set, item number 382617 Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50...
- Page 18 Technical specifications Thon Studio Rack 14U 50 Thon Studio Rack 14U 50 BK, graphite Item number 372118 Thon Studio Rack 14U 50 WH, white Item number 375285 Thon Studio Rack 14U 50 oak Item number 512953 Thon Studio Rack 14U 50 maple Item number 524439 Thon Studio Rack 14U 50 beech Item number 524438...
- Page 19 Thon Back Door 16U Studio beech, item number 524814 Wheel set Thon Wheel Set 50mm Studio Rack, item number 382512 Rack Strip Set Thon 16U Studio Rack Strip Set, item number 382622 Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50...
- Page 20 Technical specifications Thon Studio Rack 18U 50 Thon Studio Rack 18U 50 BK, graphite Item number 372126 Thon Studio Rack 18U 50 WH, white Item number 375291 Thon Studio Rack 18U 50 oak Item number 512966 Thon Studio Rack 18U 50 maple Item number 524449 Thon Studio Rack 18U 50 beech Item number 524447...
- Page 21 Thon Back Door 20U Studio beech, item number 524816 Wheel set Thon Wheel Set 50mm Studio Rack, item number 382512 Rack Strip Set Thon 20U Studio Rack Strip Set, item number 382627 Thon Studio Rack 10U, 12U, 14U, 16U, 18U, 20U 50...
-
Page 22: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
