Electrical Connection; Devices With Diaphragm Seal; Operation - Labom UNIVERSAL CA CA21 0 Series Operating Instructions

3.2

Electrical Connection

Complete the mechanical installation before you connect the device electrically.
Set up all electrical connections while the voltage supply is switched off.
Permissible supply voltage
Permissible load
circular connector M12

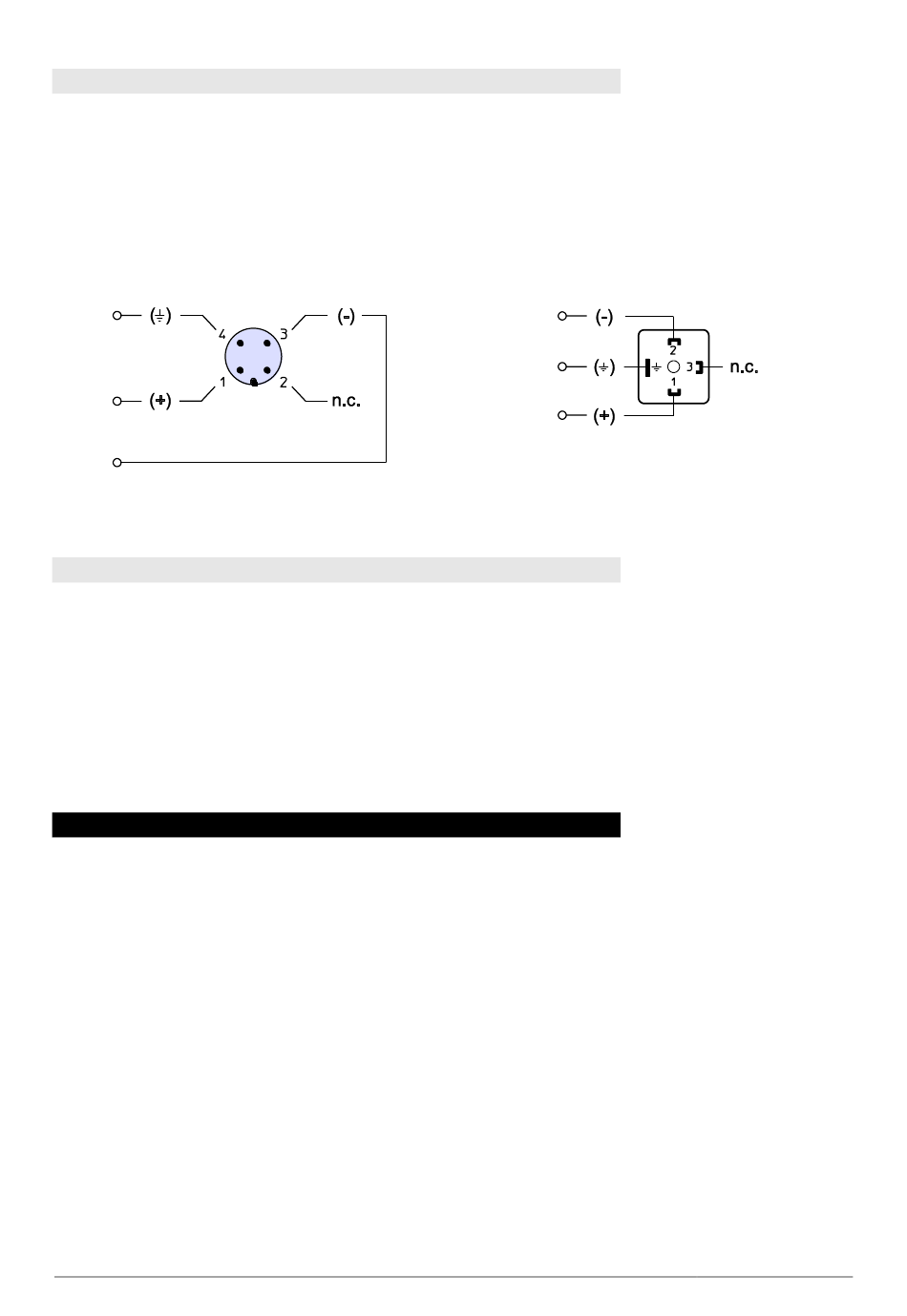

Figure 1: Pin assignment for M12 circular connector and right angle plug
3.3

Devices with Diaphragm Seal

Remove the protective cap or protective wrapping from the diaphragm only just before in-
stallation to prevent contamination or damage.
The diaphragm must not be touched. Do not place the device on its diaphragm. Even
small scratches or deformations may negatively influence the zero point or other charac-
teristics of the device.
Pressure transmitter and diaphragm seal are a closed system that must not be separated.
You can find further information about diaphragm seals in the document TA_031 on
www.labom.com.
4

Operation

During operation, take care that the device remains within its intended pressure and tem-
perature ranges. No other monitoring is necessary.
Permissible ambient temperature:
BA_059_2019-05_10.00 Pressure transmitter UNIVERSAL CA
U = 10 - 30 VDC
V
R = (U - 10 V) / 20 mA
B V
Right angle plug
-20...85 °C
Page 3/5
