- Page 1 MANUALE D’ISTRUZIONI / INSTRUCTION’S MANUAL / MANUAL DE INSTRUCCIONES DIATERMO MB122 – MB132 – MB160 M30540 ( MA036IGBEa...
- Page 2 DIATERMO MB122-MB132-MB160 GIMA SpA IMPORTANTE / IMPORTANT / IMPORTANTE Queste istruzioni operative costituiscono una parte fondamentale dell’apparecchiatura per chirurgia ad alta frequenza, in quanto ne descrivono il funzionamento e l’uso, pertanto devono essere lette attentamente prima di iniziare l’installazione e l’uso dell’apparecchiatura.
- Page 3 DIATERMO MB122-MB132-MB160 GIMA SpA INDICE / INDEX / INDICE IMPORTANTE / IMPORTANT / IMPORTANTE ............3 INDICE / INDEX / INDICE ....................4 1. INTRODUZIONE......................7 1.1 D ’U ............7 ESTINAZIONE D ETTORI DI PPLICAZIONE 1.2 C ................8 OMPOSIZIONE TANDARD ED PZIONALE 1.3 D ........................8...
-
Page 4: Table Of Contents
DIATERMO MB122-MB132-MB160 GIMA SpA * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * 1. - Page 5 DIATERMO MB122-MB132-MB160 GIMA SpA 1.3 D ....................43 ESCRIPCIÓN ENERAL 1.4 C ......................44 ORTE ONOPOLAR 1.5 C ..................44 OAGULACIÓN ONOPOLAR 1.6 C ..................45 ORTE Y OAGULACIÓN IPOLAR 2. SEGURIDAD......................46 2.1 G ........................46 ENERALES 2.2 I .........................47 NSTALACIÓN 3. INSTALACIÓN......................49 4. CONECTORES Y CONTROLES ................51 4.1 P...
-
Page 6: Introduction
1. INTRODUCTION 1.1 DESTINATION OF USE / SECTORS OF APPLICATION The use of HF electro surgical equipment DIATERMO MB122, MB160 and MB132 has reserved to specialized medical personnel. The equipment has destined to a temporary use, for surgical operations in emergency room. It has foreseen its use in the monopolar cut, cut coagulated or coagulation mode or in bipolar coagulation mode. -
Page 7: Standard And Optional Composition
= OPTIONAL 1.3 GENERAL DESCRIPTION DIATERMO MB122, MB160 and MB132 are electro-surgical equipments suited to deliver current for monopolar cut, soft coagulation, forced coagulation or bipolar coagulation. The current can be delivered for the whole time of activation of the output circuit or, with the model MB132, for an interval of time which can be preset. -
Page 8: Monopolar Cut
DIATERMO MB122-MB132-MB160 GIMA SpA It is possible to use either single plate neutral reference electrodes or electrodes with split conductive zone so to watch the plate to patient contact during the surgical intervention. Control of the units is via front panel keys and display; mains inlet is located on the rear panel. -
Page 9: Bipolar Cut And Coagulation
DIATERMO MB122-MB132-MB160 GIMA SpA • Locate the bleeder, after have wiped the excess blood from the area, contact lightly the bleeder before activating the electrode • Stop the electrode activation as soon as the tissue blanches to avoid tissue damage. -
Page 10: General
DIATERMO MB122-MB132-MB160 GIMA SpA 2. SAFETY WARNING: Electrosurgery can be dangerous. Careless use of any element in the electrosurgical system may subject the patient to a serious burn. Read and understand all warnings, precautions, and directions for use before attempt to use any active electrode. Neither LED S.p.A., Frosinone, Italy nor any of the subsidiary sales organisations can be considered responsible for personal, material or consequential injury, loss or damage that results from improper use of the equipment and accessories. -
Page 11: Installation
DIATERMO MB122-MB132-MB160 GIMA SpA fluid that deposits in these areas should be removed before the equipment use. The danger of endogenous gas ignition has to be considered. Some materials like cotton wool or gauze, when saturated with oxygen, may burst into flames because of the sparks produced by the equipment in the normal use. -
Page 12: Installation
DIATERMO MB122-MB132-MB160 GIMA SpA 3. INSTALLATION • Inspect the unit for damages during transport. The claims for possible damages will be accepted only in case they are immediately communicated to the carrier; the damages that are found must be written down and presented to LED SpA or to your own retailer. If the unit is returned to the LED SpA or to your own retailer, it is necessary to use the original equipment’s package or... - Page 13 DIATERMO MB122-MB132-MB160 GIMA SpA Holder handle without pushbuttons and single foot switch: connect the holder handle to the black binding post and pre-set the current for the cut (CUT or BLEND) or the coagulation (FORCED COAG, SOFT COAG or BIPOLAR), press the foot switch to deliver the pre-set current.
-
Page 14: Connectors And Controls
4.1.1 M ’ ANUFACTURER DENTIFICATION DIATERMO MB122, MB160 and MB132 HF electrosurgical unit are designed, manufactured and tested by the LED SpA in its own laboratories in Aprilia (LT) - Italy. 4.1.2 M EANING OF RAPHIC YMBOLS The meaning of the graphic symbols printed on DIATERMO’s cabinet is the following:... -
Page 15: Frontal Panel

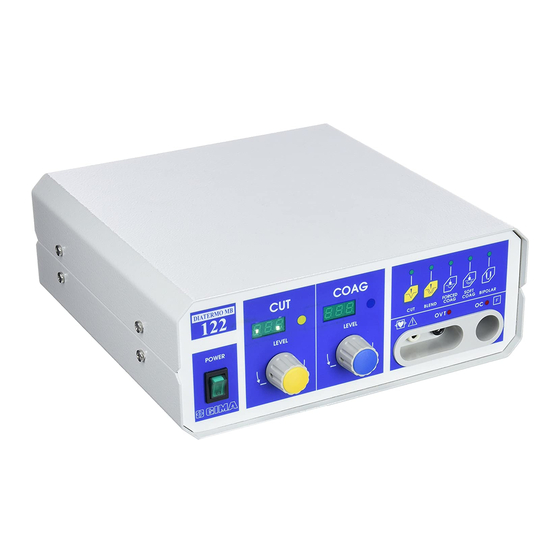

DIATERMO MB122-MB132-MB160 GIMA SpA 4.2 FRONTAL PANEL MB122 – MB160 1 Mains switch 2 Section of level control and indication of cut current 3 Section of level control and indication of coagulation current 4 Function keyboard 5 Alarm warning for current delivery over time... -
Page 16: Operation Mode
DIATERMO MB122-MB132-MB160 GIMA SpA 4.3 OPERATION MODE 4.3.1 S WITCHING When switched on the electrosurgical unit performs automatically a test to establish the correct operation of itself and of the connected accessories as well. In case anomaly is found an alphanumeric message it is shown coded according to the chart codes brought in the chapter MAINTENANCE. -
Page 17: Signaling Of Excessive Time Of Delivery (Ovt)
DIATERMO MB122-MB132-MB160 GIMA SpA 4.5 SIGNALING OF EXCESSIVE TIME OF DELIVERY (OVT) If the operator exceeds the maximum time of disbursement, recommended by the international norms, that is 10 seconds, the equipment produces a signal of warning consisting of bright intermittent signal OVT. -
Page 18: Mb132 Units' Extra Functions
DIATERMO MB122-MB132-MB160 GIMA SpA 4.10 MB132 UNITS’ EXTRA FUNCTIONS This control apply only to the electrosurgical unit model MB132 that has the following added characteristics: Output power delivery time from 1/1000 up 999/1000 sec Repetition of delivery actuation from 2 to 9 times... -
Page 19: Back Panel
DIATERMO MB122-MB132-MB160 GIMA SpA 4.11 BACK PANEL 1 Mains voltage connector MB122-MB160 (mod. 160) 2 Voltage selector 3 Connector for pedal MB132 4.11.1 P OWER UPPLY ODULE Power supply module is the connection point of mains voltage feeding to the unit. This module is provided with line fuses. -
Page 20: Technical Characteristics
DIATERMO MB122-MB132-MB160 GIMA SpA 5. TECHNICAL CHARACTERISTICS DIATERMO Toll. Description MB122 MB160 MB132 Electrosurgical unit code GIMA 30540 30541 30544 Electrosurgical unit code LED GMA10100.20A GMA10100.30A GMA10300.10A Minimum presectable power Level step Digital level display Maximum output power CUT (W) 120 →... -
Page 21: Maintenance
DIATERMO MB122-MB132-MB160 GIMA SpA 6. MAINTENANCE 6.1 GENERAL No user adjustable parts are within the equipment, either for calibration or service purposes. The equipment housing must not be opened: the warranty is invalidated by any unauthorized entry into the unit. In the event any repair or adjustment work being necessary, the whole equipment should be returned to the LED S.p.A. -
Page 22: Repairs
DIATERMO MB122-MB132-MB160 GIMA SpA 6.5 REPAIRS High frequency cables and electrode holder handle cannot be repaired. Always substitute a damaged part with a new one. 6.5.1 F UBSTITUTION Before substituting the fuse, disconnect the unit from the mains system. Only use fuse of the kind 5x20; they must have those characteristics: 3.15AT (slow) (230Vac mains voltage), 6.3A (115Vac mains voltage), proceed as follows:... -
Page 23: Introducción
DIATERMO MB122-MB132-MB160 GIMA SpA GRAFICI / DIAGRAMS / GRAFICOS DIATERMO MB122 – MB132 Diagrams of half and maximum Diagrams of half and maximum Diagrams of half and maximum output power versus impedance load output power versus impedance load output power versus impedance load Ω... -
Page 24: Estandar Y Opcional Composicion
DIATERMO MB122-MB132-MB160 GIMA SpA DIATERMO MB160 Diagrams of half and maximum Diagrams of half and maximum Diagrams of half and maximum output power versus impedance load output power versus impedance load output power versus impedance load Ω Ω Ω 100-2000... - Page 25 DIATERMO MB122-MB132-MB160 GIMA SpA Informazioni in base all’Art. 13 del D.Lgs. 151/05 del 25/07/2005 “Attuazione delle Direttive 2002/95/CE e 2003/108/CE, relative alla riduzione di sostanze pericolose nelle apparecchiature elettriche ed elettroniche, nonché allo smaltimento dei rifiuti. A fine vita il presente prodotto non deve essere smaltito come rifiuto urbano, lo stesso deve essere oggetto di una raccolta separata.
