SSV Works TXF-OSP65 Installation Instructions

TXF-OSP65 - Teryx 4 Overhead Speaker Pod

Tools Needed For Installation

Drill with 1/4" and 1/8" Drill Bit
#2 Phillips Screwdriver
5/32 Allen Wrench
Wire Crimpers / Strippers

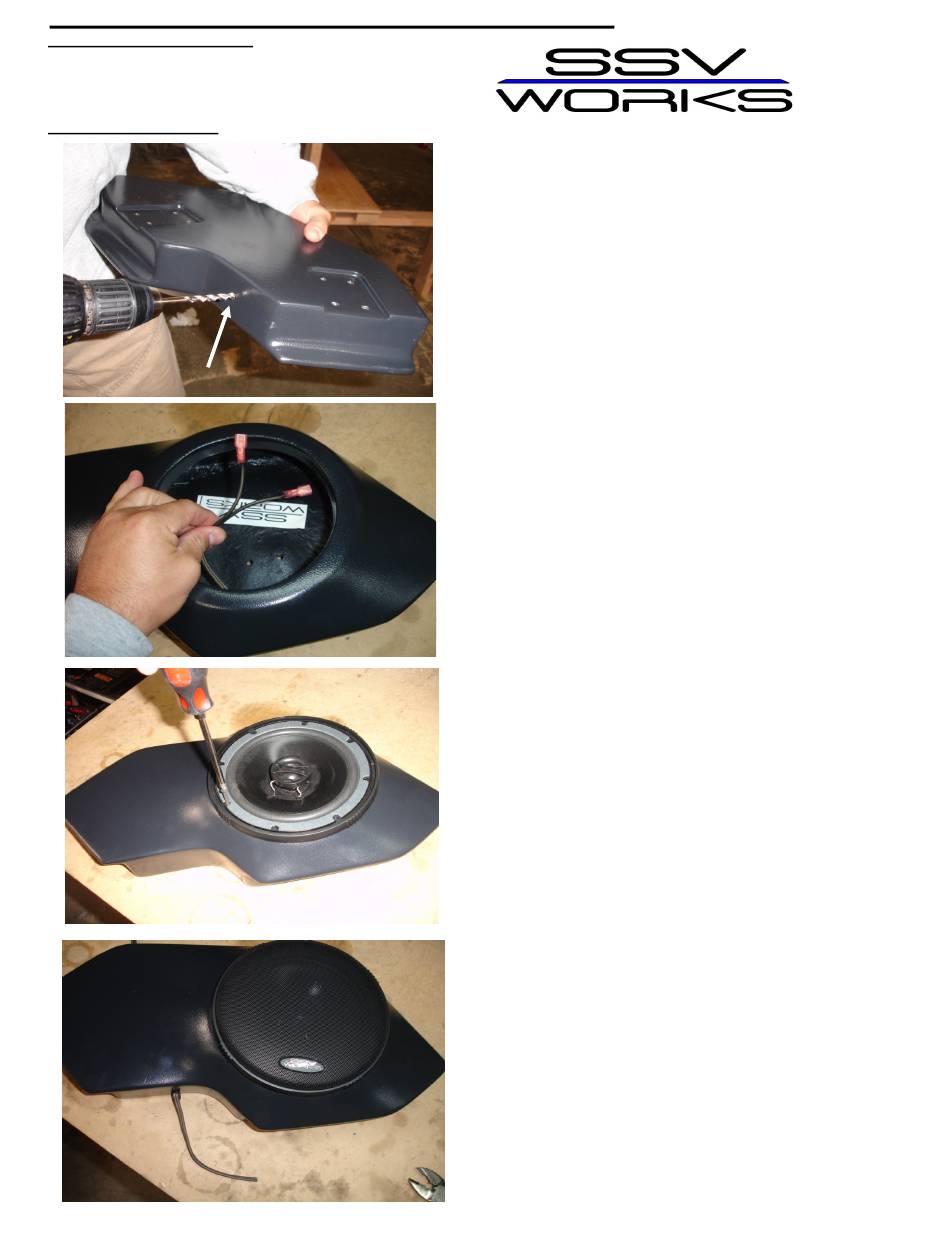

Installation Instructions:
Drill a hole through the enclosure for your speaker
wire to run out the side
Once the holes are drilled, run the speaker wire into the
enclosure and crimp on the terminals, be sure to have
enough length on the speaker wire to run to the location
where your amplifier will be mounted
Attach the speaker wires to the speaker be sure to
connect the speakers correctly identifying the + and -
speaker leads. Then screw the speaker into the enclosure
You can now press the grill onto the speaker
