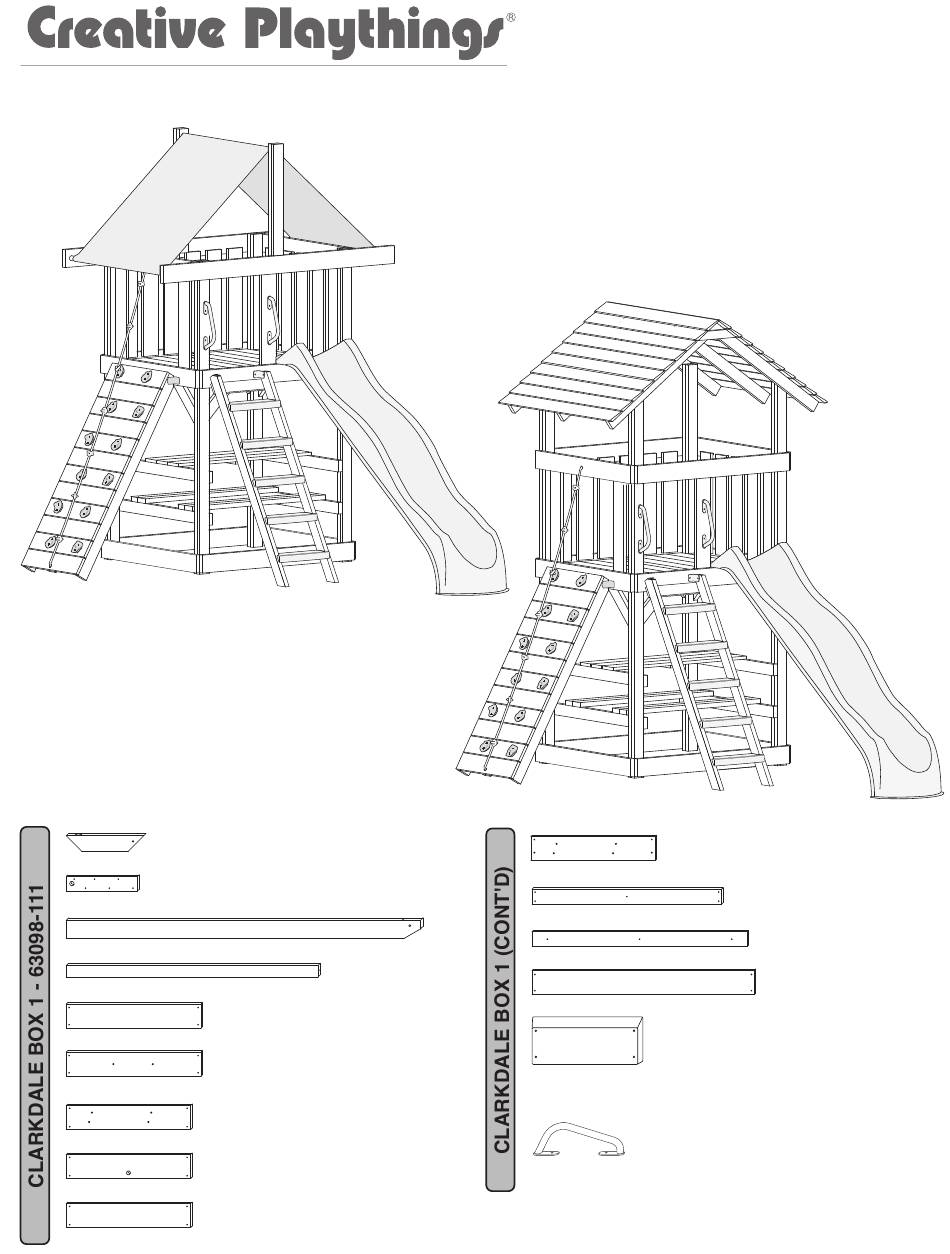

Creative Playthings Clarkdale 1 Assembly Sheet

CHILDHOOD STARTS HERE
One carton is unique to the Clarkdale gym. The
contents are listed below. Use the contents of
Clarkdale Box 1 in place of Clayton Box 1.
Details of the different versions of the Clarkdale
can be found on the following pages.
A 8 31682-102 Angle Brace 2 x 4 x 17-1/4"
B* 1 32753-102 Rope Bottom Supp 5/4 x 4 x 15-3/4"
C 2 33598-102 Angled Rail 2 x 4 x 67-1/4"
E* 1 35177-102 Inner Stringer 2 x 3 x 55"
F 13 35202-102 Wall Slat 5/4 x 6 x 29-1/2"
G 1 35205-102 Entrance Slat 5/4 x 6 x 29-1/2"
K 5 35246-102 Rock Board 5/4 x 6 x 27-1/4"
L 1 35247-102 Rope Board 5/4 x 6 x 27-1/4"
M 5 35248-102 Spacer Board 5/4 x 6 x 27-1/4"
ASSEMBLY SHEET
Components of Creative Playthings gyms can be combined with others
to create different play sets. In this case, components of the Clayton gym
combined with others are used to create the Clarkdale. Use the instructions
from the Clayton combined with the information on this sheet to assemble
the Clarkdale gym. Read this sheet and all instructions included with the
different parts before assembly.
See Instructions and Owner's Manual in carton 63083-353 (tent) or
63083-554 (wood roof posts) for important safety information.
N 1 35249-102
O* 2 35276-102
P* 1 35279-102
Q 1 35351-102
R* 1 15133-400
S 1 50277-100
T 1 40400-100
2 14179-400
1 50574-700
* Not visible in illustration on Page 6 of the Clayton Manual
CLARKDALE
Top Rock Board 5/4 x 6 x 27-1/4"
End Deck Board 5/4 x 4 x 41-1/8"
More table boards in box 2.
Narr Deck Board 5/4 x 4 x 46-5/8"
Table Board 5/4 x 6 x 48-1/4"
Slide Mount
Rock Pack (12), Green
Climbing Rope
Deluxe Hand Grip
Slide Bolt 2 Pack
