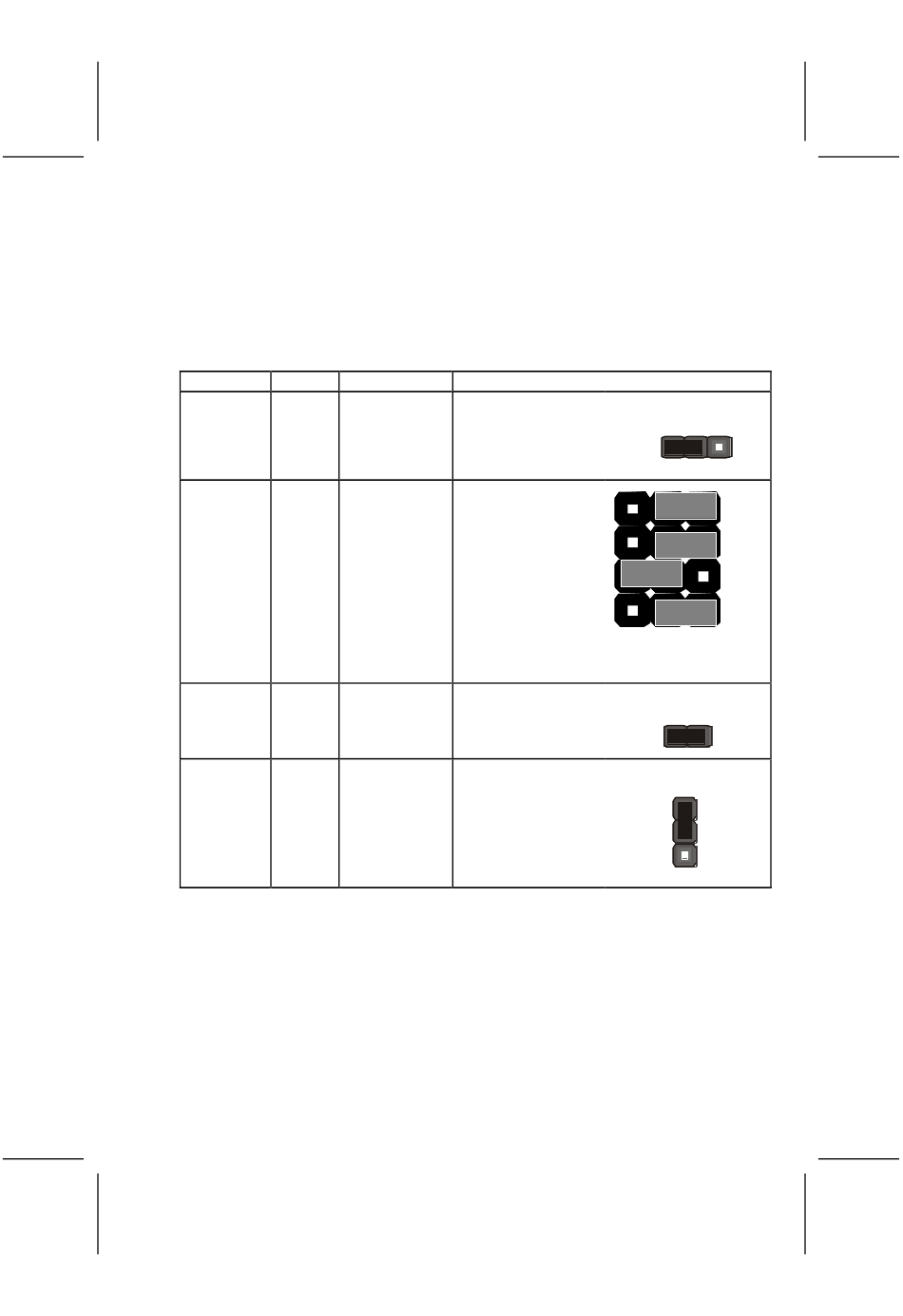

Jumper Settings

Jumper Type Description
JP1 3-pin Clear CMOS
JP3~JP6 12-pin CPU Clock
Ratio
JP9 2-pin BIOS flash
protection
JP10 3-pin AC power
resume
Jumper 1 – Enables you to clear the BIOS. Follow these in-
structions:
1. Turn the system off.
2. Short pins 1 and 2 on jumper 1.
3. Return the jumper to the normal setting.
4. Turn the system on. The BIOS is returned to the de-
fault settings.
A p p
A p

Setting Jumpers

Setting (default)
1-2: Normal
2-3: Clear CMOS
Refer to next
page
1
Short: Enable
Open: Disable
1-2: Enable
2-3: Disable
e n d i x A
p e n d i x A
JP1
1
JP3
JP4
JP5
JP6
2 3
JP9
JP10
1
