DIMMs are keyed with cutouts so that they can only
be installed correctly. Check that the cutouts on the
DIMM module edge connector match the notches in
the DIMM slot.
3. Push the latches on each side of the DIMM slot down.
Latch
Notches

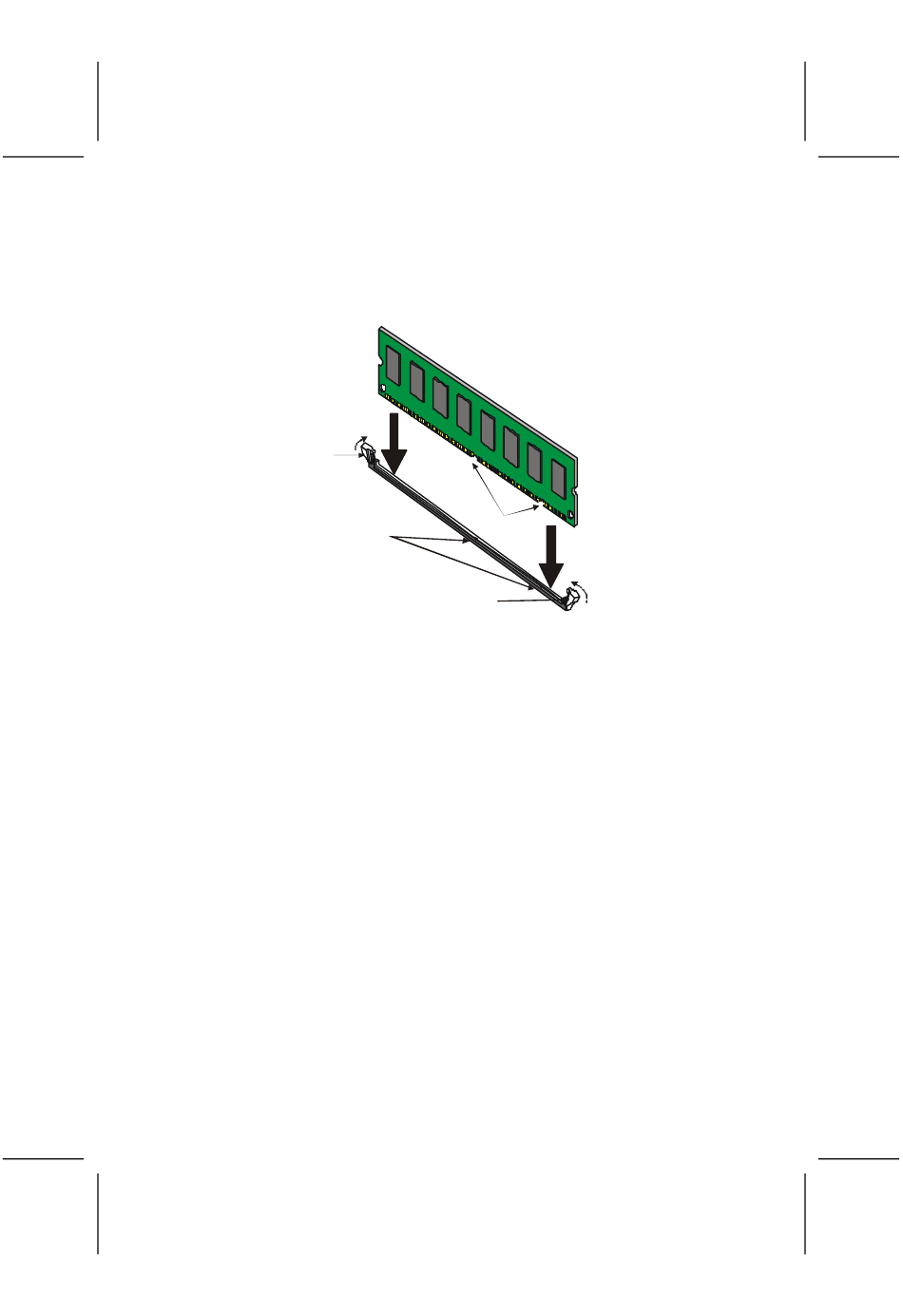

4. Install the DIMM module into the slot and press it
firmly down so that it seats correctly. The latches at ei-
ther side of the slot will be levered upwards and latch
on to the edges of the DIMM when it is installed cor-
rectly.
Cutouts
Latch
22
