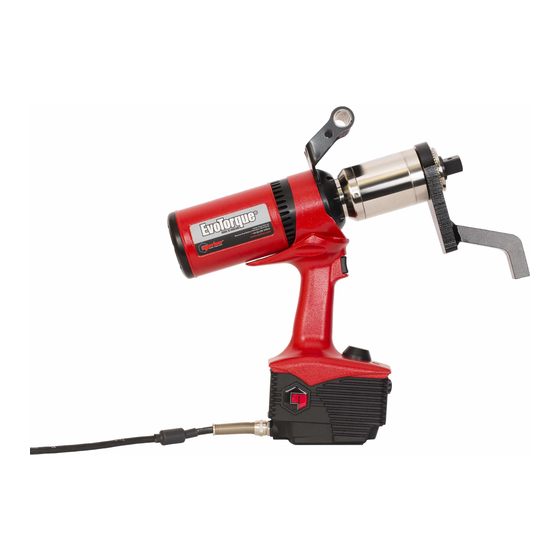

norbar EVOTORQUE 2 Quick Reference Manual

QUICK REFERENCE GUIDE
EVOTORQUE
IMPORTANT:
The instructions below are a brief guide for reference only, do not operate the tool before you have
read and understood the Operator's Manual supplied with the tool.
1. Ensure that the correct socket has been fitted to the tool. To fit a socket, first
slide the socket over the tools square drive ensuring the sockets pin hole and
the square drive pin hole line up. Then slot the holding pin through the hole
and place the retaining ring over the holding pin to secure.
2. Ensure the Clockwise/Counter-clockwise display arrow shown on screen is correct.
Press to change direction (if required).
3. Ensure Torque, Torque & Angle or Audit Torque target shown is correct. Target will be
remembered from the last use.
To quickly alter the target shown press and hold either the up or down arrows
press to confirm; repeat for angle if an angle target is present.
To change targets press the
Then select the targets icon (highlighted above) and press
Use the up and down arrow keys
enter target setup.
Alter the targets value using the up and down arrows
www.norbar.com
Part Number 34425 | Issue 1 | Original Instructions (English)
®
2
IT IS VITAL THAT THE SAFETY INFORMATION ON PAGES 3-5 OF THE
OPERATOR'S MANUAL (34426) HAS BEEN READ AND FULLY
UNDERSTOOD BEFORE USING THIS TOOL.
button to exit the run screen and bring up the below menu.
to confirm.
to highlight required target and press
and confirm by pressing
and
to
.
