- Page 1 M1 Quick Start Support signal cross conversion Support pixel-to-pixel scaling Support four modular inputs Support HDMI & SDI outputs Support touch screen control Integrated audio Support configurable PIP Support Transition effects, DSK, Blending ...
-
Page 2: Table Of Contents
PGM Mode................................ 15 Switching Mode..............................16 Set the Output Parameter..........................17 Using Black Out..............................18 Saving Views..............................19 Recall Saved Settings............................20 Contact Information..............................21 Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 3: Product Introduction

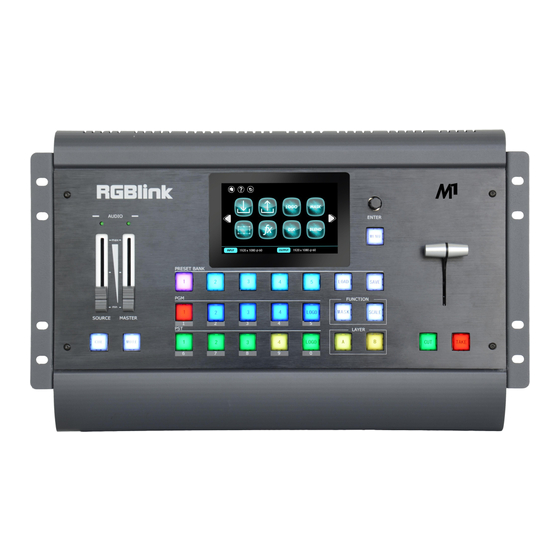

M1 is All-in-one scaling and vision mixing Tools. M1 can be up-down cross-covert any input signal to output, support 2 layers switching from preview to PGM.support Integrated audio .Both LCD touch screen and Menu rotation can be operation M1.M1 via one HDMI port of PVW output module come ture preview combined windows for PGM+PVW+PST. -
Page 4: Packing Configuration
USB Files Note: AC Power Cable supplied as standard according to destination market. USB is contained on the Warranty/Registration Card. Please keep. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 5: Hardware Orientation
Audio adjust area Switching modes area Presets operation area Layer function area Input sources area Layer selection area Menu and LCD display area Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... - Page 6 Each button is numbered and can be used as direct number entry when values such as resolution and size. PST Area Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
- Page 7 For adding or deleting the layer, the button light is lit when add the layer, off when delete the layer, and flash when select the layer. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
-
Page 8: Back Panel
Audio Out( Earphone) Control Interface Genlock input BNC port LAN port RJ-45 USB port USB-A TALLY light Power Connection Power Switch Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 9: Using Your Product
Resolution Display Audio In Input Menu Audio Out Output Menu Lock Rear Panel LOGO Language/语言 MASK System Scale Factory Reset Transition Effect Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... - Page 10 Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
-
Page 11: Pst Mode
PST Mode M1 supports 1 HDMI preview output, and it supports the functions as below: Signal Selection Push any button in Input Sources Area, for example, push the button [5], the border of signal 5 will change to yellow, and the signal in PGM monitor will be changed to signal 5. - Page 12 DSK: Can select enable or disable the DSK function. Transitions Setting 1. Touch the transition buttons in Transition Menu, M1 supports 13 kinds of wipe modes: Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com...
- Page 13 Audio Source Sel: Embedded or External Audio Gain: The adjustment range is between 0~100 Audio Delay: The adjustment range is between 0~20ms Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
- Page 14 Audio Gain: The adjustment range is between 0~100 Monitor Select: Select PST or PGM Mute: Select On or Off BLEND Setting(Coming Soon) Mask Setting(Coming Soon) Custom LOGO(Coming Soon) Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
-
Page 15: Pgm Mode
PST state, which can be edited. 2. There are 1 HDMI output and 1SDI output for program, and realize 2Kx1K output. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 16: Switching Mode
3. TAKE switch: Switch the PST image to program with wipe and fade by pushing [TAKE] button. 4. CUE switch: EARPHONE voice via CUE transfer PST to PGM 5. MUTE switch: MUTE only for PGM voice. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 17: Set The Output Parameter
External Including option Off and On, Input will shown as actual input. Format support choose 2 default resolution: 1280x720 @60 & 1920x1080 @60. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 18: Using Black Out
Black out description: Black signal realizes one-key-touch to a black screen. M1 provides black effect processing for program output and preview output, with cut black effect. Operation is as below: Touch the [BLACK] button, then the program output is cut to black. -
Page 19: Saving Views
Saving Views M1 provides 25 positions for saving or recording parameters. To save current parameters and settings: 1. Push the [SAVE] button in Presets operation area, the button [SAVE] and [PAGE] lights are lit, and some of buttons 1~5 are lit and some are flashing. The button lit can be saved and flash will be overwrite, push the button lit to save. -
Page 20: Recall Saved Settings
Recall Saved Settings M1 provides 25 positions for saving or recording parameters. To recall saved settings: 1. Push the [LOAD] button in Presets operation area, the button [LOAD] and [PAGE] lights are lit, and some of buttons 1~5 are lit and some are flashing. The button lit is ready for recall and flash means just recall, push the button lit to recall. -
Page 21: Contact Information
All video products are designed and tested to the highest quality standard and backed by full 3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
