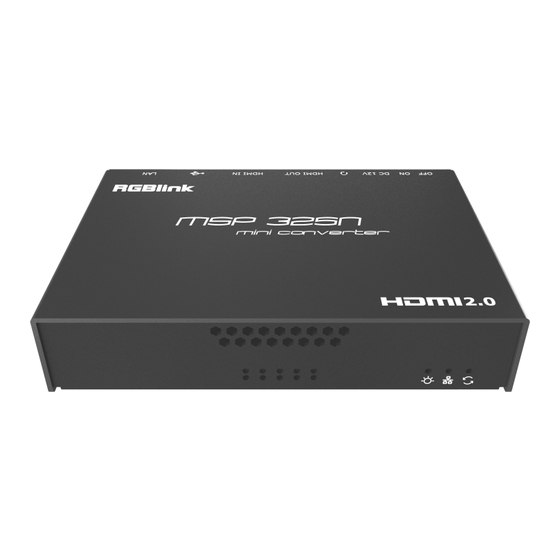

- Page 1 MSP 325N Quick Start...
-
Page 2: Table Of Contents
3. Device Indicators.......................3 4. Applications........................ 4 5. Login to the device management page..............4 6. Work with your device....................5 7 Restore factory settings.....................7 8 Note..........................7 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 3: Packing List
(1) Power Switch (6) USB Port (2) Power Port (7) 1 GbE port with PoE (3) 3.5mm Line in/Line out (8) Status indicator (4) HDMI Loop © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 4: Device Indicators
Power off or failure Flashing Network connected LED Indicators LINK White Network disconnected/abnormal Flashing Working normally White Always on Starting to work Working abnormal/not start © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 5: Applications
Please make sure the camera is connected to the HDMI IN connector. If you wish, you can connect MSP 325N to your monitor for real time preview by HDMI OUT. 5. Login to the device management page Enter http://192.168.1.168/ in the browser to visit Web UI.Open the Web page of MSP 325N，... -
Page 6: Work With Your Device
6.2 Streaming service Click“+”on the right side of the stream service at the bottom of MSP 325N Web UI. Add a stream service, take RTSP protocol as an example. Select RTSP, fill in the name, service port and session ID, the other setting parameters can remain default configuration, click “OK”. - Page 7 VCL instructions for download method and installation process. VLC is a multimedia player and framework with free and open cross platform, which can play most of streaming media protocols. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 8: Restore Factory Settings
Headquarter: S601 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C ● Tel: +86-592-5771197 ● Fax: +86-592-5788216 ● Customer Hotline: 4008-592-315 © Xiamen RGBlink Science & Technology Co., Ltd. ● Web: http://www.rgblink.com ● E-mail: support@rgblink.com Ph: +86 592 5771197 | support@rgblink.com | www.rgblink.com...
